Parts Catalog

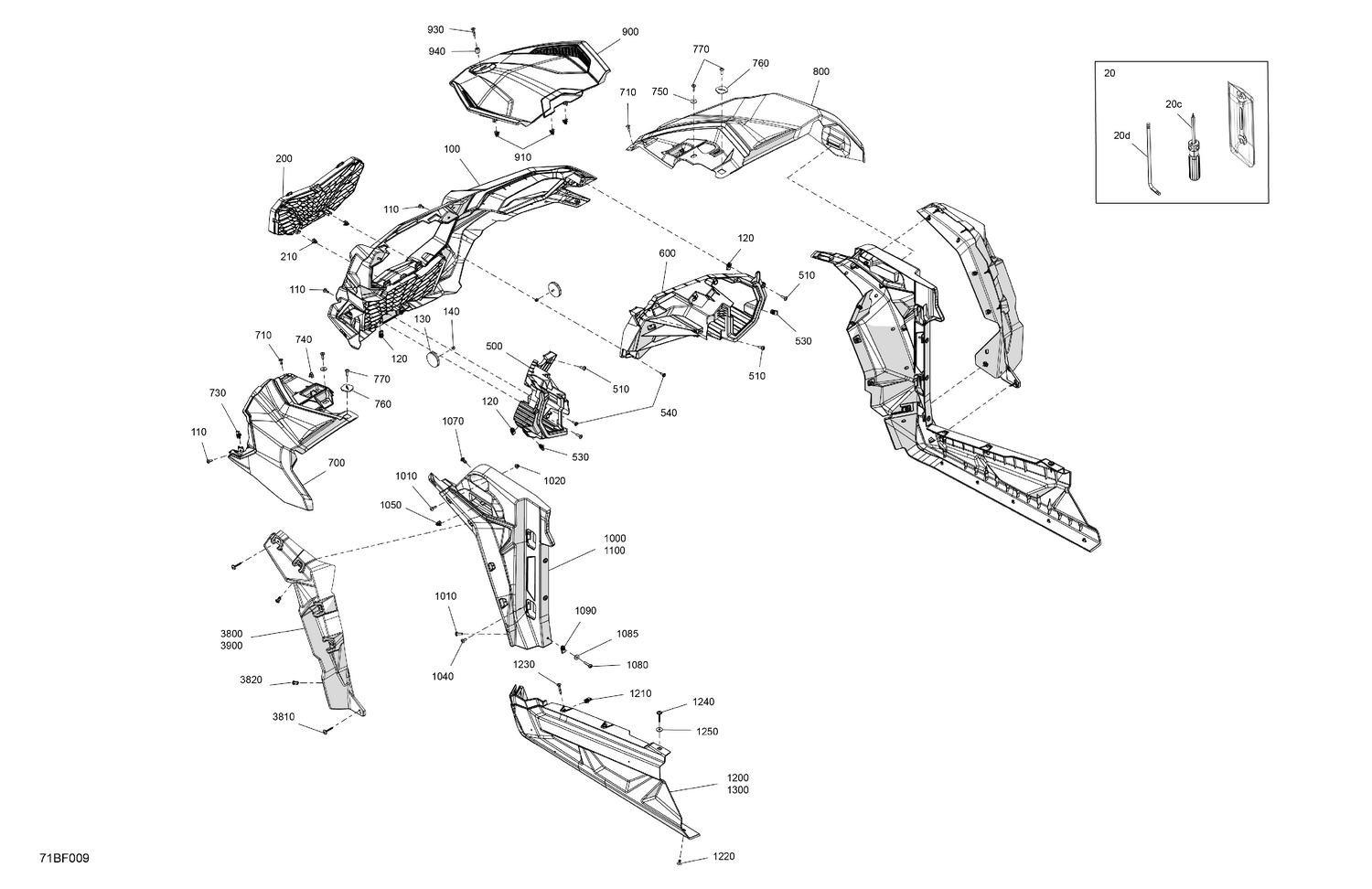

07- Body - Front Section

Parts (46)

Ref	Part Number	Description
20c	529000021	Screw Driver
20d	708200340	Torx Key T30
100	705011317	Front Fascia
110	250000721	Torx Truss Screw M6 X 16
120	250100198	Panel Nut M6 X 1.0
130	705017809	Amber Reflector
140	233251494	Elastic Flange Nut M5
200	705011318	Fascia Removable Grid
210	517306478	Clip
500	705011319	LH Headlamp Structure
510	250000722	Torx Screw M6 X 20
530	250100198	Panel Nut M6 X 1.0
540	250000959	Screw PT Type K-50 X 16
600	705011320	RH Headlamp Structure
700	705019683	Timeless Black, LH Front Fender
710	250000721	Torx Truss Screw M6 X 16
730	250100198	Panel Nut M6 X 1.0
740	517306478	Clip
750	250200162	Flat Washer M6.6 X 22
760	705003841	Support Plate
770	250000722	Torx Screw M6 X 20
800	705019684	Timeless Black, RH Front Fender
900	705011322	Removable Hood
910	517306478	Clip
930	250000807	Torx Truss Screw M6 X 25
940	705502616	Bushing
1000	705011323	LH Front Mudguard
1010	250000712	Torx Screw M6 X 20
1020	233261494	Hex. Flange Elastic Nut M6
1040	250000721	Torx Truss Screw M6 X 16
1050	517306478	Clip
1070	293150230	Tuflok Plastic Rivet
1080	250000867	Torx Truss Hex. Screw M6X35, Nylon Patch
1085	234062670	Stainless Steel Flat Washer
1090	250100198	Panel Nut M6 X 1.0
1100	705011324	RH Front Mudguard
1200	705019026	LH Front Rocker Panel
1210	250100198	Panel Nut M6 X 1.0
1220	293150307	Black, Ornit Rivet 3/16 X ,925 This part replaces 293150307.
1230	250000867	Torx Truss Hex. Screw M6X35, Nylon Patch
1240	250000840	Torx Truss Screw Head PT.K50 X 40
1250	250200162	Flat Washer M6.6 X 22
1300	705019027	RH Front Rocker Panel
3800	705019029	LH Front Mud Guard
3810	250000840	Torx Truss Screw Head PT.K50 X 40
3820	293150230	Tuflok Plastic Rivet
