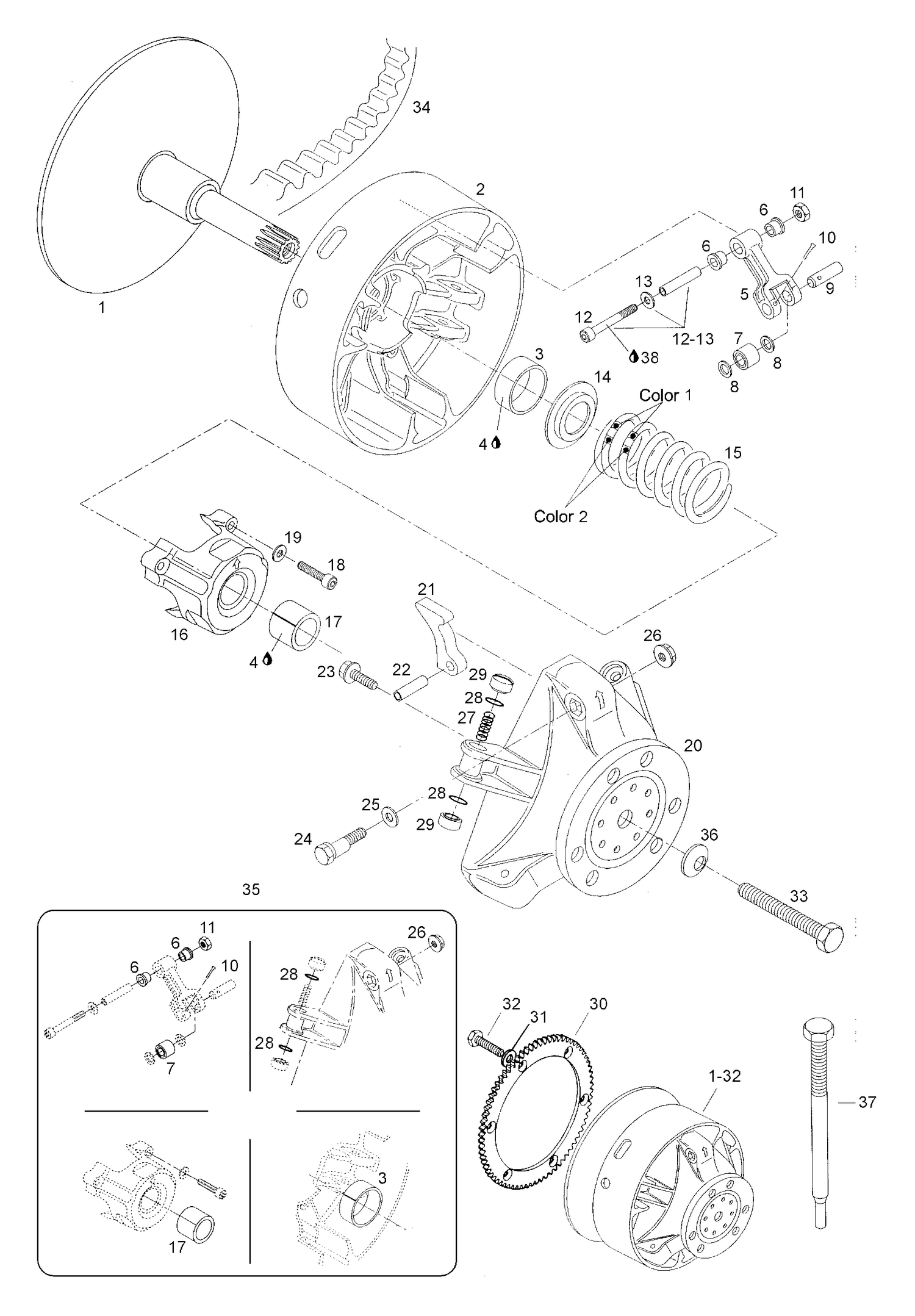

05- Clutch
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417222134 | Inner half assy |
| 3 | 417004201 | Bushing outer half |
| 4 | 413703100 | Loctite 609, 10cc |
| 6 | 417004305 | Flange bushing |
| 7 | 417222947 | Roller This part replaces 417003900. |
| 8 | 417004302 | Thrust washer |
| 9 | 417004308 | Pin |
| 10 | 250400060 | Cotter Pin This part replaces 732958001. |
| 11 | 33010 | Lock Nut M6 (1=10Pcs) |
| 12 | 205065044 | SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership This part replaces 222965065. |
| 13 | 234061410 | Flat Washer 6 mm This part replaces 224061151. |
| 14 | 417222044 | Spring seat |
| 15 | 414818000 | SPRING (YELLOW/BLUE) - Call your local BRP dealership |
| 17 | 417004501 | Spring cover bushing |
| 18 | 222964066 | Allen screw M6x40 |
| 19 | 420245370 | WASHER - Call your local BRP dealership |
| 20 | 417004700 | Gouvernor cup assy |
| 21 | 417005290 | Ramp 290 |
| 22 | 732804009 | Dowl tube M8x24 |
| 23 | 732601249 | Screw M6x18 |
| 24 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership This part replaces 417005500. |
| 25 | 417005600 | Washer |
| 26 | 233061414 | Hex. Flange Nut M6 This part replaces 228467045. |
| 27 | 417005700 | Spring |
| 28 | 732401030 | O-Ring |
| 29 | 417223021 | Slider Shoe This part replaces 417005800. |
| 30 | 415043100 | Ring gear |
| 31 | 31081 | Shim |
| 32 | 236281684 | Hex. Screw M8 X 16 This part replaces 732601246. |
| 33 | 40800 | Screw |
| 34 | 28418 | Drive belt |
| 35 | 417006100 | Clutch repair kit This part replaces 417011008. |
| 36 | 392002800 | WASHER-LOCK HELICAL SPRING - Call your local BRP dealership |
| 37 | 529010100 | Puller inner half |
