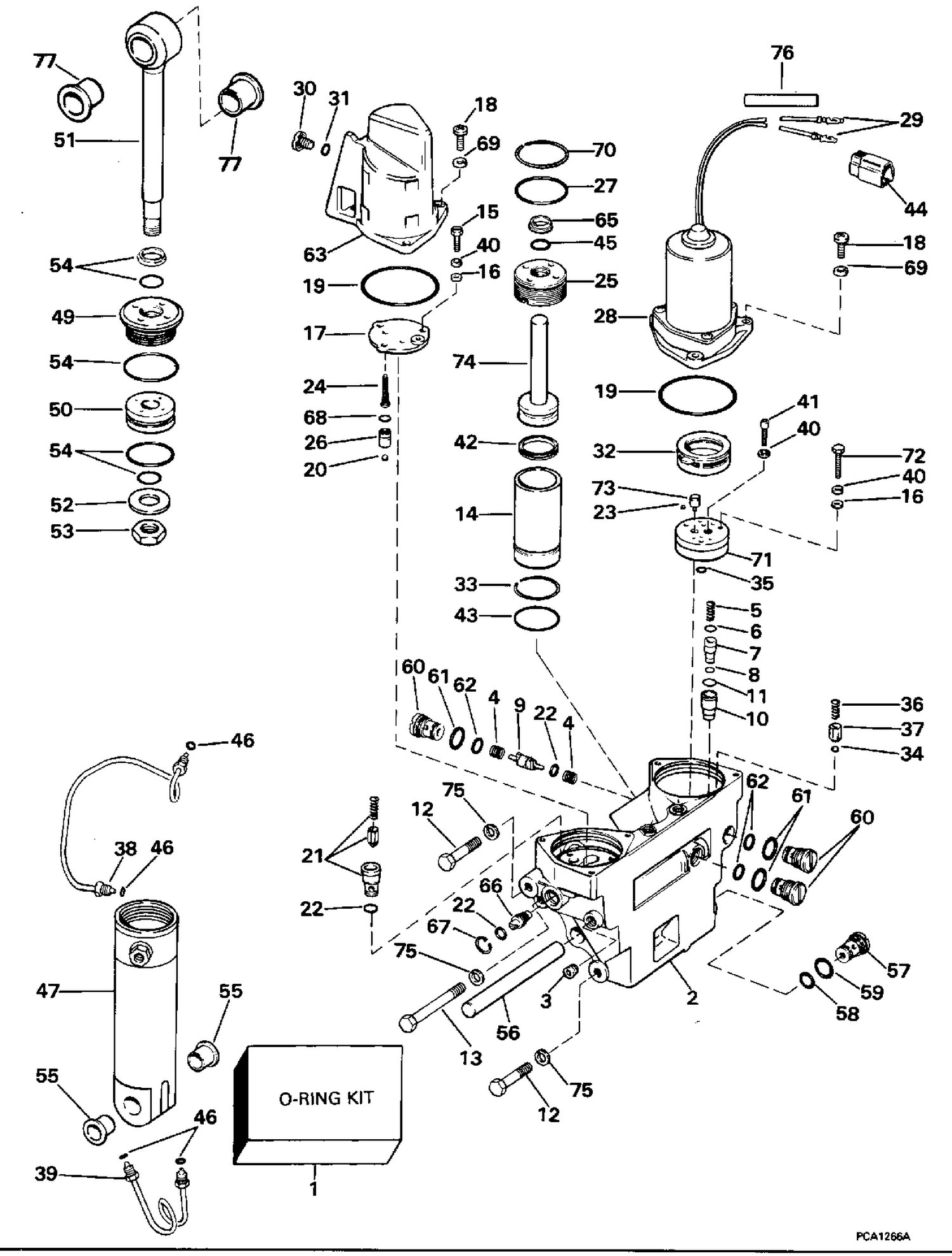

POWER TRIM/TILT HYDRAULIC ASSEMBLY
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 0324677 | JOINT TORIQUE, mamelon, vidange inférieure |
| 8 | 0324678 | JOINT TORIQUE Galet de came de papillon |
| 28 | 0434795 | TRIM/TILT MOTOR |
| 40 | 0360252 | WASHER This part replaces 0306311. |
| 44 | 0325698 | CONNECTOR |
| 55 | 0321246 | BUSHING, Shock absorber, lower |
| 72 | 0321219 | VIS, vis de fixation |
| 75 | 0307708 | RONDELLE GROWER |
| 76 | 0327267 | SLEEVE |
| 0434803 | 0434803 | HYDRAULIC ASSY., Trim/tilt |
