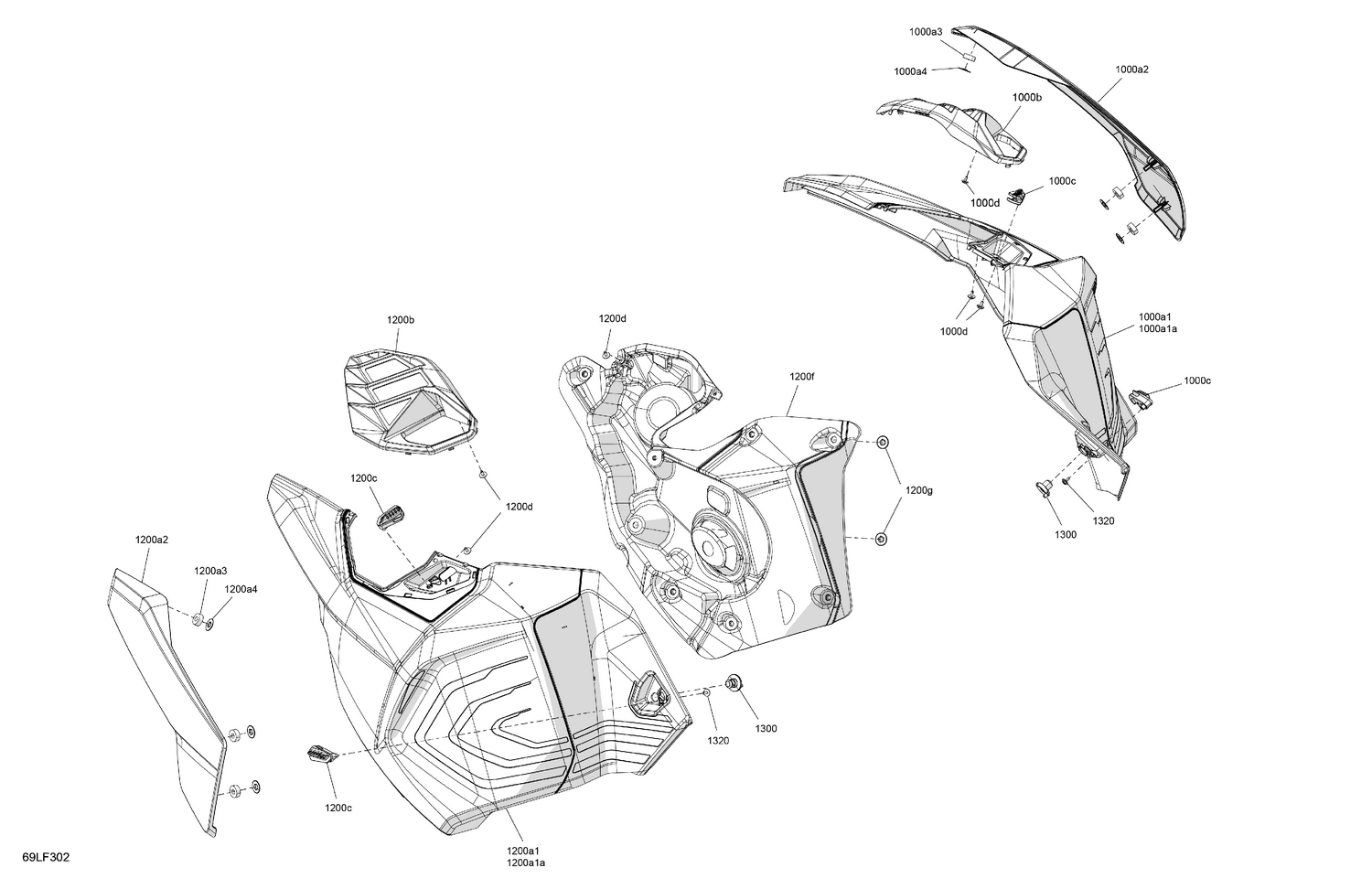

07- Body - Side Panels
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1000a1a | 517307223 | RH Side Panel Without Opening |
| 1000a2 | 517308063 | RH Air Deflector |
| 1000a3 | 517306809 | Rubber Damper |
| 1000a4 | 508000853 | Push Nut |
| 1000b | 517308589 | Deep Black, RH Grille Trim |
| 1000c | 517305773 | RH Rear Latch |
| 1000d | 250000805 | Plastite Screw M4 X 10 |
| 1200a1a | 517308736 | Deep Black, LH Panel |
| 1200a2 | 517308064 | LH Air Deflector |
| 1200a3 | 517306809 | Rubber Damper |
| 1200a4 | 508000853 | Push Nut |
| 1200b | 517308684 | Deep Black, LH Grille Trim |
| 1200c | 517305774 | LH Rear Latch |
| 1200d | 250000805 | Plastite Screw M4 X 10 |
| 1200f | 517308590 | Acoustic Panel |
| 1200g | 508000853 | Push Nut |
| 1300 | 517305985 | Rear Stud |
