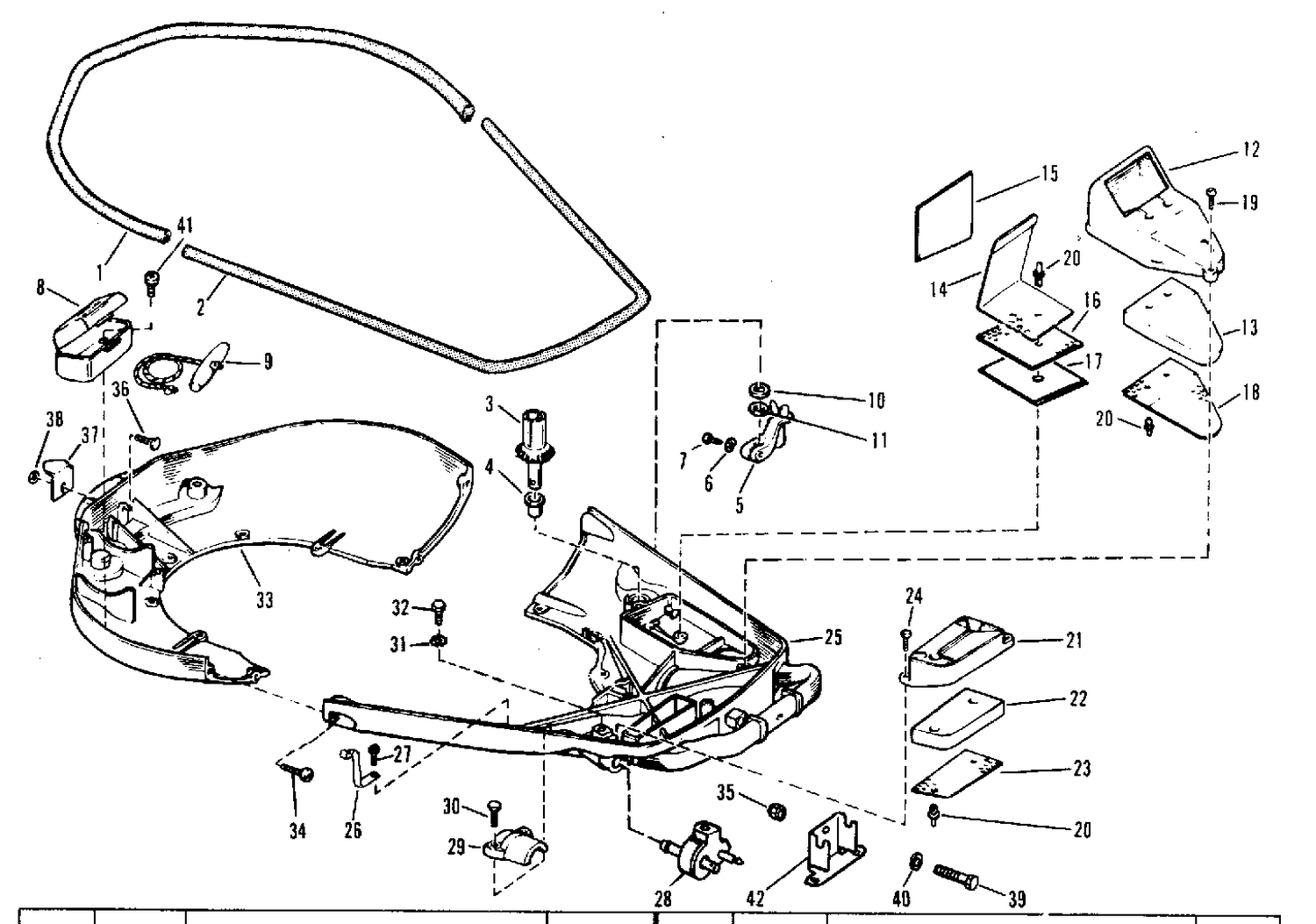

| Ref | Part Number | Description |
|---|
| 1 |
0313173 |
SEAL, Motor cover This part replaces 0313354. |
| 2 |
0313173 |
SEAL, Motor cover This part replaces 0313177. |
| 3 |
0305607 |
GEAR, Throttle control |
| 4 |
0305378 |
BUSHING, Control gear |
| 5 |
0307440 |
LEVER, Throttle control |
| 6 |
0303887 |
WASHEER, Pin to swivel bracket |
| 7 |
0300258 |
SCREW, Bracket |
| 8 |
0312058 |
BOX, Emergency start rope |
| 9 |
0378347 |
CORDE DE LANCEUR |
| 10 |
0305487 |
SEAL, Throttle gear |
| 11 |
0127386 |
RONDELLE This part replaces 0303913. |
| 12 |
0307892 |
COVER, Silencer |
| 13 |
0307894 |
PAD, Silencer |
| 14 |
0307893 |
PLATE, Silencer pad |
| 15 |
0307895 |
PAD, Silencer |
| 16 |
0307992 |
PLATE, Silencer pad |
| 17 |
0307991 |
PAD, Silencer |
| 18 |
0307896 |
PLATE, Silencer pad |
| 19 |
0303288 |
SCREW, Carb to manifold |
| 20 |
0307897 |
FASTENER, Plate |
| 21 |
0308345 |
COVER, Silencer |
| 22 |
0307886 |
PAD, Silencer |
| 23 |
0307887 |
PLATE, Silencer pad |
| 24 |
0304607 |
PULSE PACK SCREW ASSY |
| 25 |
0380099 |
MOTOR COVER, Lower front |
| 26 |
0311283 |
RETAINER, Cable connector |
| 28 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 29 |
0314940 |
CLAMP, Cable This part replaces 0311219. |
| 32 |
0306419 |
SCREW |
| 33 |
0382709 |
MOTOR COVER, Lower rear |
| 34 |
0305745 |
SCR., Lwr. mtr. cover frt. and rear |
| 36 |
0307113 |
SCREW, Hook to cover |
| 37 |
0307848 |
HOOK, Lower motor cover |
| 39 |
0306427 |
BOLT |
| 41 |
0307426 |
SCREW |
| 42 |
0311419 |
BRACKET |
