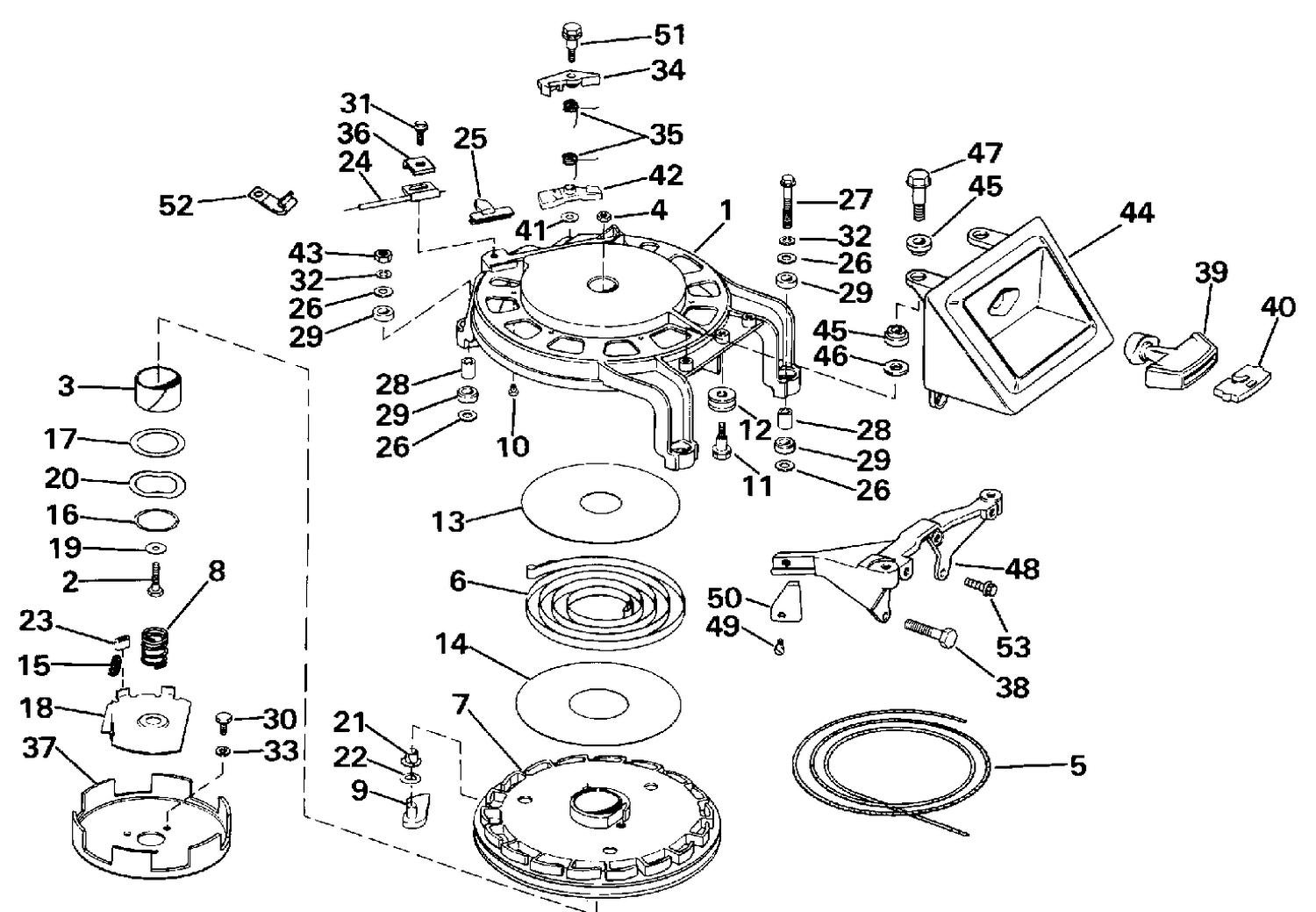

REWIND STARTER

REWIND STARTER

Parts (24)

RefPart NumberDescription
2 0335020 SCREW, Bracket to block This part replaces 0318139.
5 ROPE Ref: 6 0325431 *SPRING, Starter 0325431
24 0436201 CABLE This part replaces 0395007.
25 0330338 SLIDE
27 0908511 SCREW This part replaces 0553114.
28 0326129 SLEEVE
29 0326130 GROMMET
30 0306861 SCREW
31 0328731 VIS, câble de verrouillage
34 0330276 LOCKOUT LEVER
35 0326128 SPRING
36 0328456 CLAMP
37 0329245 RATCHET, Flywheel
38 0308728 SCREW This part replaces 0322098.
39 0326249 HANDLE, Starter
42 0330277 LOCKOUT LEVER, Pulley
43 0330185 NUT, Housing to bracket
44 0436662 BRACKET, Starter handle This part replaces 0326135.
45 0326136 GROMMET
48 0329224 BRACKET, Rewind starter, front
50 0332682 TIMING POINTER This part replaces 0330127.
51 0319415 SCREW
52 0310441 CLAMP, CPS lead
0394605 0438104 RECOIL STARTER Assy This part replaces 0394605.
