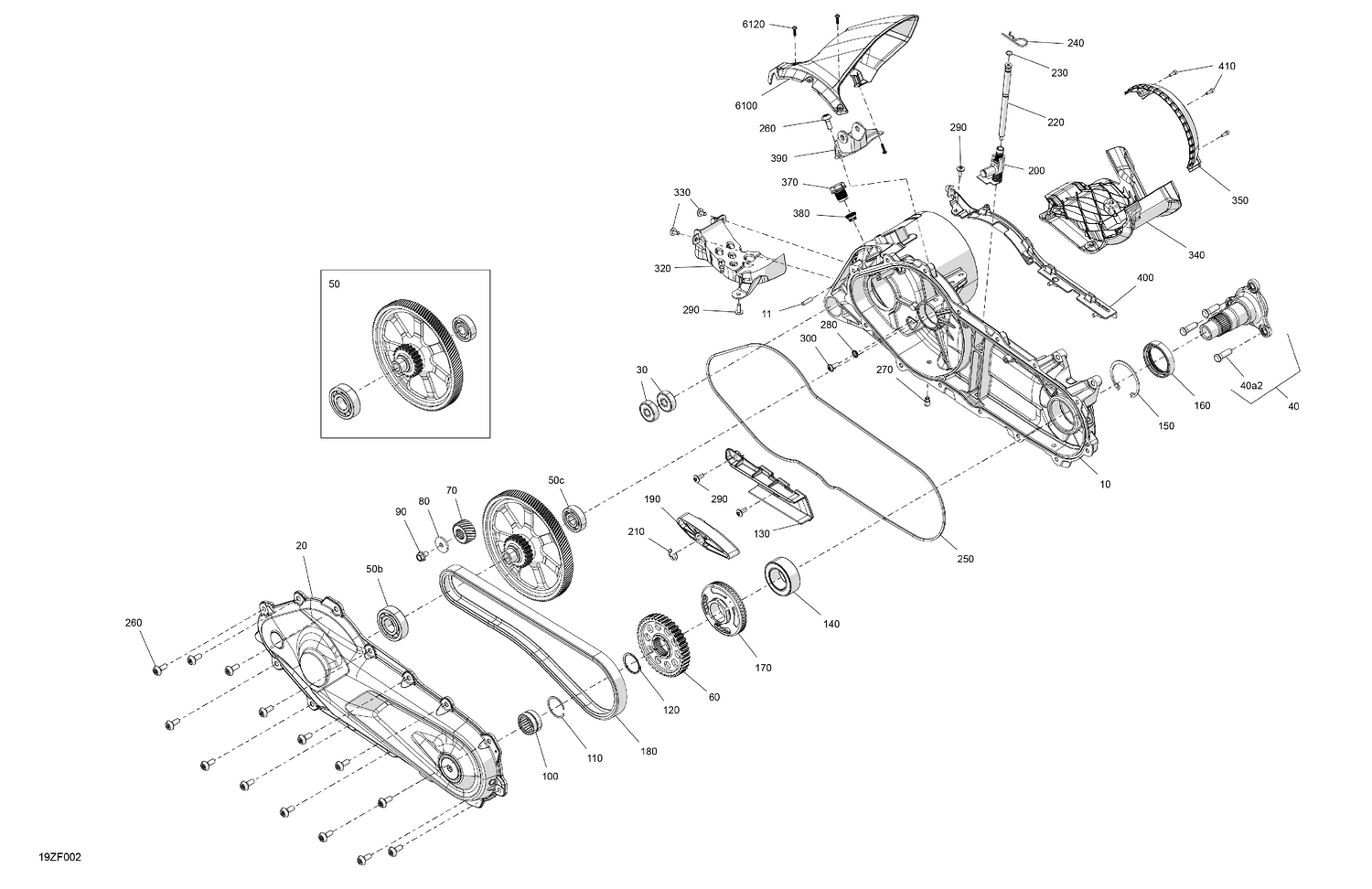

04- Drive - Rear - Common Parts
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705504004 | Machined Swing Arm |
| 11 | 250400068 | Dowel Pin |
| 20 | 705503810 | Machined Final Drive Cover |
| 30 | 706002649 | Ball Bearing, ID 12, OD 37, L 12 |
| 40a2 | 250300055 | Wheel Stud M10 X 1.25 |
| 50b | 293350187 | Ball Bearing |
| 50c | 293350147 | Ball Bearing |
| 70 | 705503431 | Helical 23 Teeth Gear |
| 80 | 250200187 | Flat Washer M8 |
| 90 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 100 | 293350181 | Needle Bearing |
| 110 | 293370181 | Internal Retaining Ring |
| 120 | 293370180 | Internal Retaining Ring |
| 130 | 705503654 | Chain Slide |
| 140 | 293350182 | Ball Bearing |
| 150 | 293370161 | Retaining Ring |
| 160 | 293200175 | Oil Seal |
| 170 | 705503637 | Rear Wheel Sensor Ass'y |
| 180 | 504153753 | Drive Chain, 104 Links |
| 190 | 705503652 | Chain Tensioner Slide |
| 200 | 705503909 | Chain Tensioner |
| 210 | 293370105 | Circlip |
| 220 | 705503998 | Adjustment Screw |
| 230 | 293300202 | O-Ring |
| 240 | 414575600 | Hair Pin |
| 250 | 293300223 | Gasket |
| 260 | 250001346 | Torx Screw Truss Head S.Grip M8 X 2 |
| 270 | 504155000 | Magnetic Plug |
| 280 | 250200114 | Sealing Washer |
| 290 | 250000717 | Torx Head Screw M6 X 16 |
| 300 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 320 | 712000033 | High Voltage Cable Support |
| 330 | 250000767 | Torx Truss Screw M6 X 12 |
| 340 | 705503454 | Skid Plate |
| 350 | 707002857 | Engine Cover |
| 370 | 705503691 | Valve |
| 380 | 705504003 | Oil Deflector |
| 390 | 705503805 | Lower Suspension Support |
| 400 | 706206319 | Cable Support |
| 410 | 205041254 | Socket Head Screw M4 X 12 |
| 6100 | 705209331 | Rear Fender |
