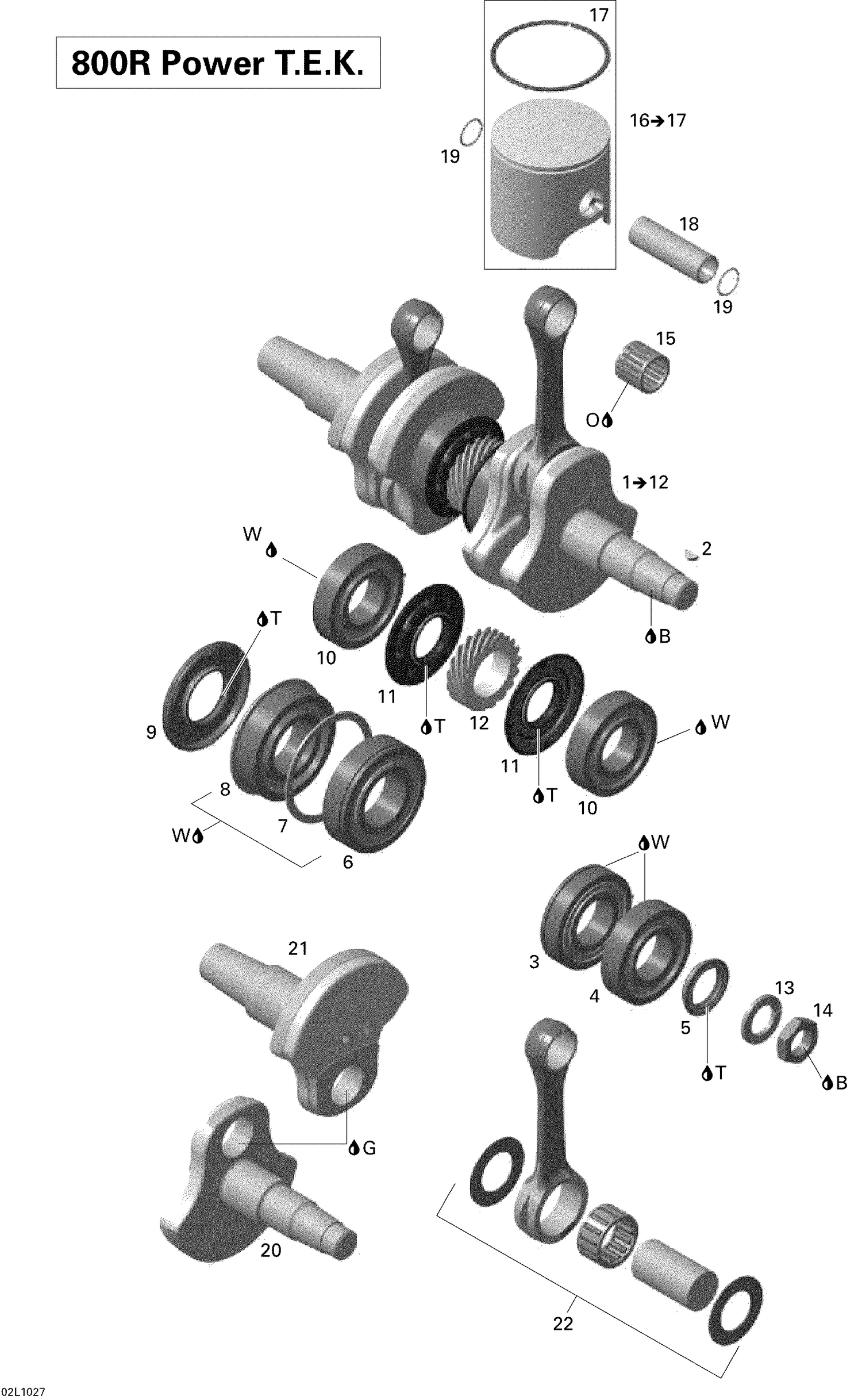

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Liima Loctite 243, 10ml |
| G |
Not |
Available As Spare Part - Loctite 14486 |
| T |
420899271 |
Klueber petamo, 250gr. Chy 133 |
| W |
293550021 |
Isoflex Grease, 50 G, Topas Nb52 |
| 2 |
420246015 |
Woodruff Key |
| 3 |
420832673 |
Ball Bearing Sealed, 6207 This part replaces 420832633. |
| 4 |
420832575 |
Ball Bearing 6207 |
| 5 |
420931795 |
Oil Seal This part replaces 420931793. |
| 6 |
420832672 |
Ball Bearing Sealed, 6208 This part replaces 420832602. |
| 7 |
420926190 |
Retaining disk |
| 8 |
420832702 |
Ball bearing 6208 |
| 9 |
420931284 |
Oil Seal This part replaces 420931285. |
| 10 |
420832673 |
Ball Bearing Sealed, 6207 This part replaces 420832633. |
| 11 |
420931455 |
Oil seal |
| 12 |
420834565 |
CENTRAL GEAR - Call your local BRP dealership |
| 13 |
420945759 |
Lock Washer, 22 mm |
| 14 |
420842239 |
Hex. Nut, M22 X 1.5 |
| 15 |
420832030 |
Needle Bearing |
| 17 |
420815410 |
Semi trapez ring |
| 18 |
420916480 |
Piston Pin |
| 19 |
420845467 |
Piston Circlip |
| 20 |
Not |
Available As Spare Part - Crankshaft MAG. side |
| 21 |
Not |
Available As Spare Part - Crankshaft P.T.O.-side |
| 22 |
420892568 |
Rod Repair Kit (MAG Side) |
| 22 |
420892569 |
Rod repair kit P.T.O.-side |
