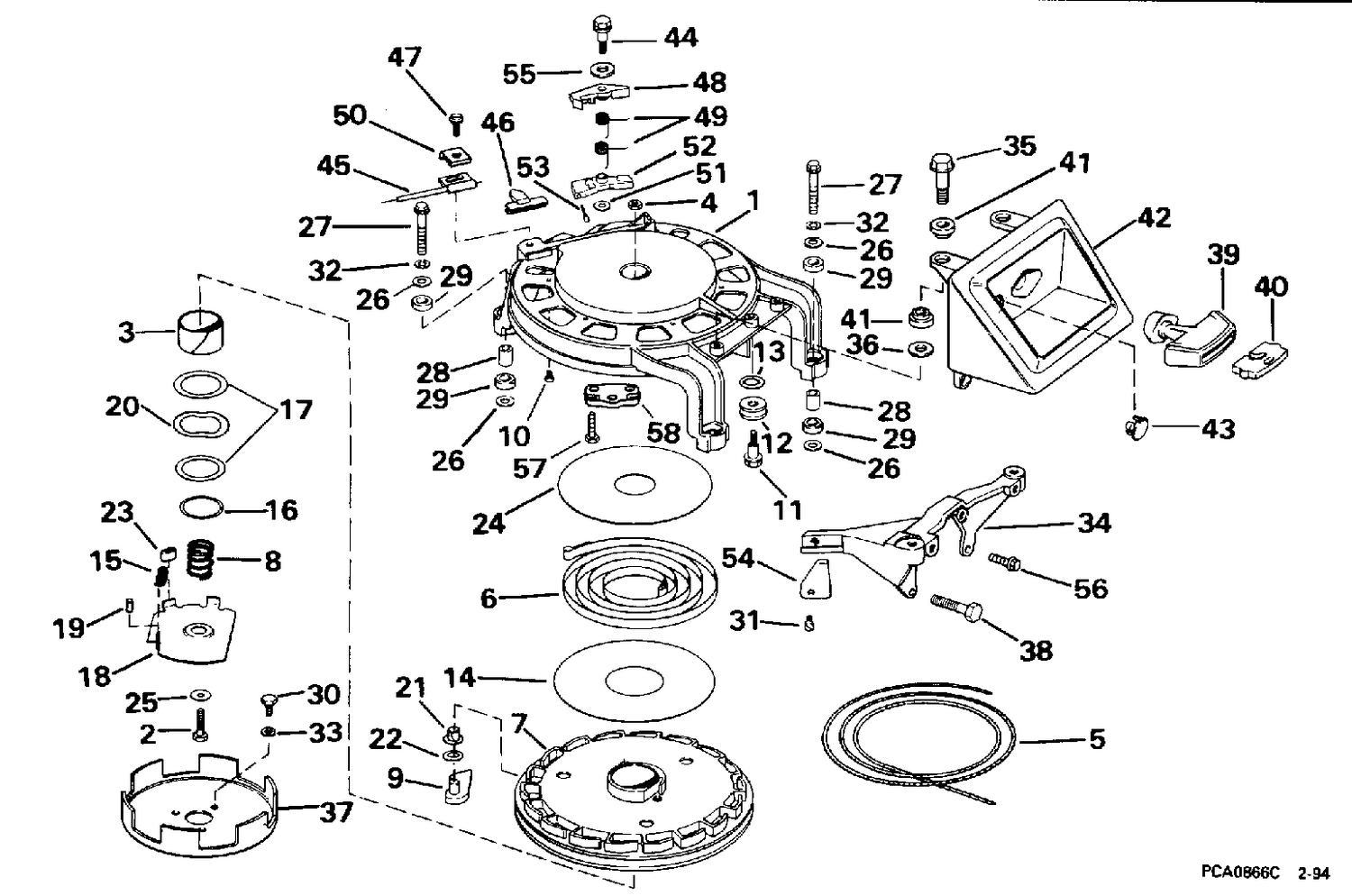

| Ref | Part Number | Description |
|---|
| 5 |
ROPE |
Ref: 6 0325431 *SPRING, Starter 0325431 |
| 27 |
0306427 |
BOLT |
| 28 |
0326129 |
SLEEVE |
| 29 |
0326130 |
GROMMET |
| 30 |
0306403 |
SCREW, Hose clip to spacer, car stud |
| 31 |
0306014 |
VIS, ancrage |
| 34 |
0329224 |
BRACKET, Rewind starter, front |
| 37 |
0329245 |
RATCHET, Flywheel |
| 38 |
0308728 |
SCREW |
| 39 |
0326249 |
HANDLE, Starter |
| 41 |
0326136 |
GROMMET |
| 42 |
0340771 |
BRACKET, Starter handle |
| 42 |
0436662 |
BRACKET, Starter handle |
| 44 |
0319415 |
SCREW |
| 45 |
0436201 |
CABLE |
| 46 |
0330338 |
SLIDE |
| 47 |
0328731 |
VIS, câble de verrouillage |
| 48 |
0330276 |
LOCKOUT LEVER |
| 49 |
0326128 |
SPRING |
| 50 |
0328456 |
CLAMP |
| 51 |
0326609 |
RONDELLE, levier de verrouillage |
| 52 |
0437040 |
LOCKOUT LEVER Assy |
| 54 |
0332682 |
TIMING POINTER |
| 56 |
0306049 |
SCREW |
| 0438104 |
0438104 |
RECOIL STARTER Assy |
