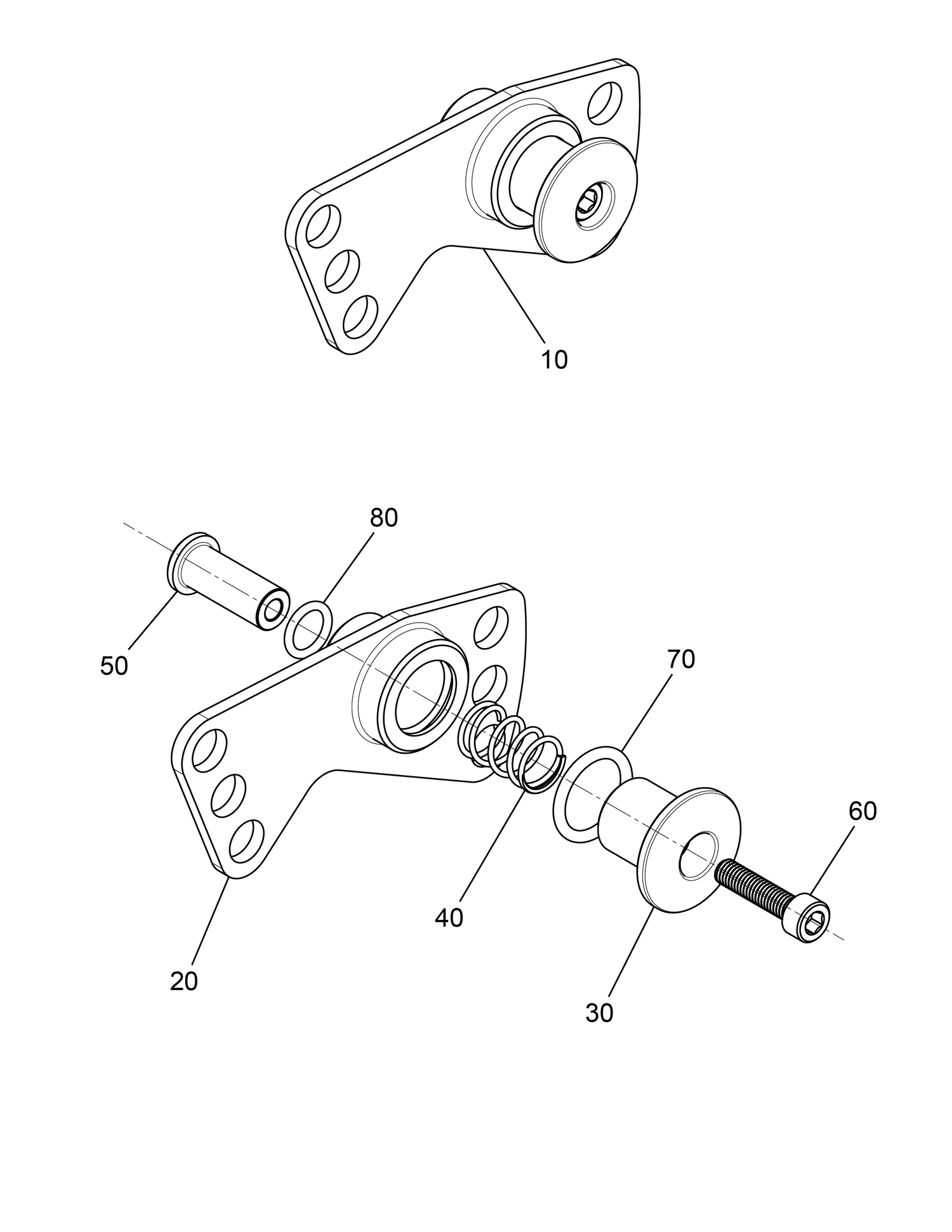

05- Suspension - Holeshot Device
Parts (6)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 486300013 | Holeshot Plate |
| 30 | 486300014 | Holeshot Button |
| 40 | 486300025 | Spring |
| 50 | 486300015 | Plunger |
| 60 | 486300012-b | Socket Head M6 x 1 x 25mm |
| 70 | 486300012-c | O-Ring 18 x 2.7mm |
| Ref | Part Number | Description |
|---|---|---|
| 20 | 486300013 | Holeshot Plate |
| 30 | 486300014 | Holeshot Button |
| 40 | 486300025 | Spring |
| 50 | 486300015 | Plunger |
| 60 | 486300012-b | Socket Head M6 x 1 x 25mm |
| 70 | 486300012-c | O-Ring 18 x 2.7mm |
