Home / BRP / JOHNSON / 2006 / 115 / BJ115PL4SDA / TRIM MOTOR

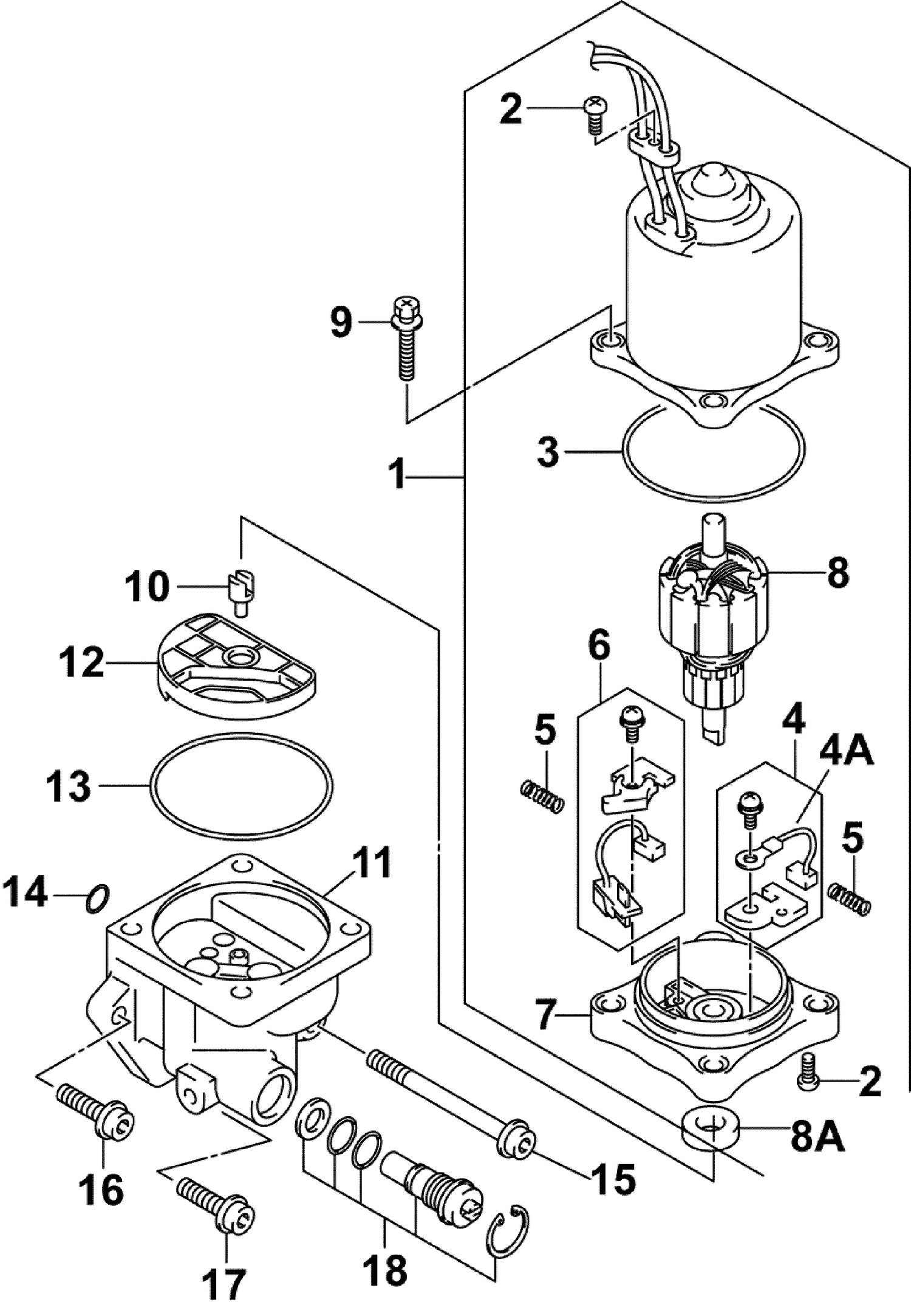

TRIM MOTOR

TRIM MOTOR

Parts (7)

RefPart NumberDescription
1 5034627 MOTOR Assy, TRIM/TILT
11 5032920 PUMP Assy
13 5031096 O RING
14 5034154 O RING
15 5032644 BOLT
16 5033940 BOLT This part replaces 5032645.
17 5032922 BOLT
