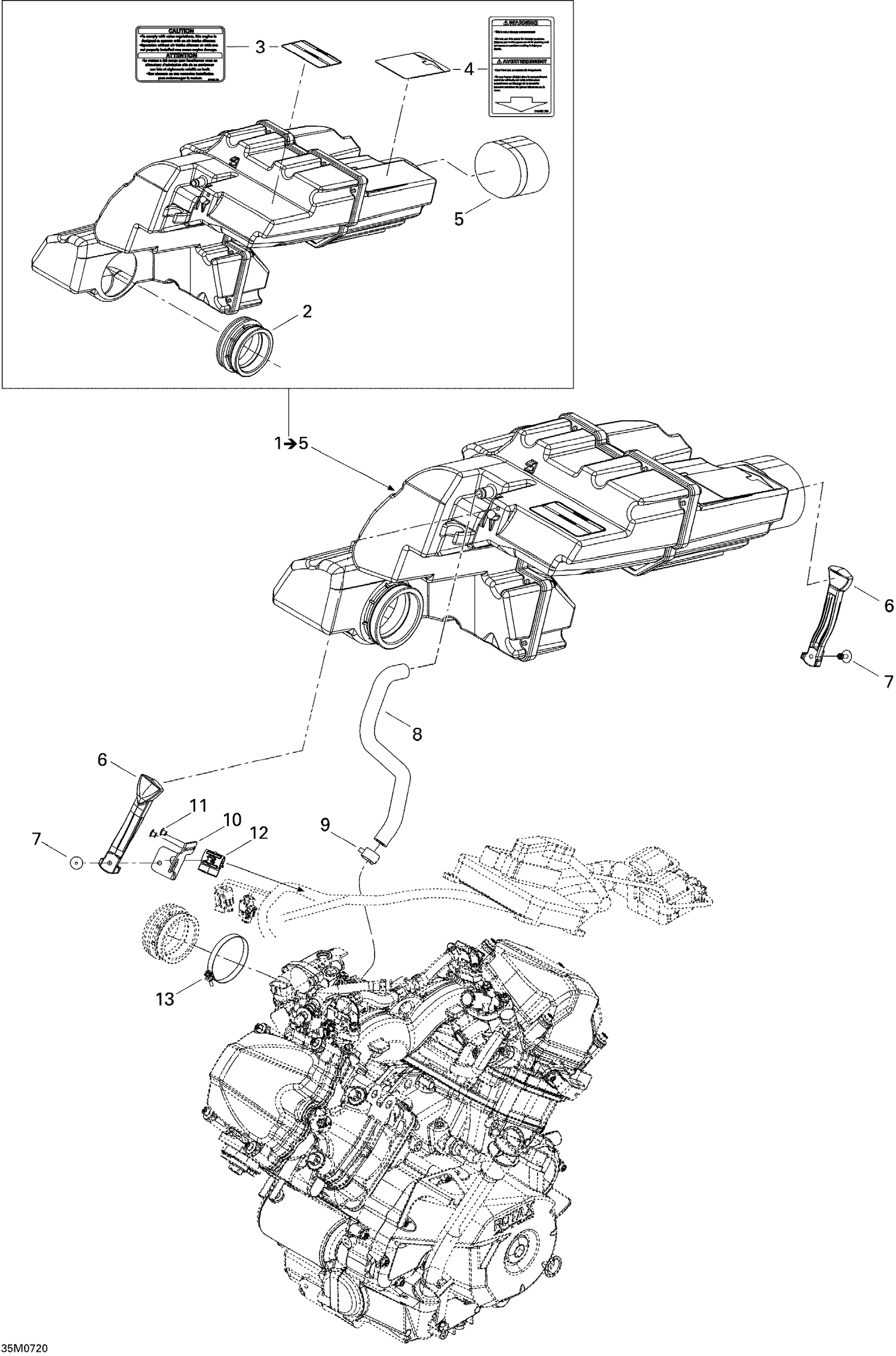

02- Air Intake System
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000491 | AIR INTAKE ADAPTOR - Call your local BRP dealership |
| 3 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 4 | 516003292 | Warning Label |
| 5 | 508000508 | Air Filter |
| 6 | 517302448 | Panel Latch |
| 7 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 8 | 508000510 | Crankcase Vent Hose |
| 9 | 293650110 | Norma Clamp |
| 10 | 508000518 | Support |
| 11 | 390402200 | Pop Rivet 3/16" |
| 12 | 275500528 | Hose Retainer |
