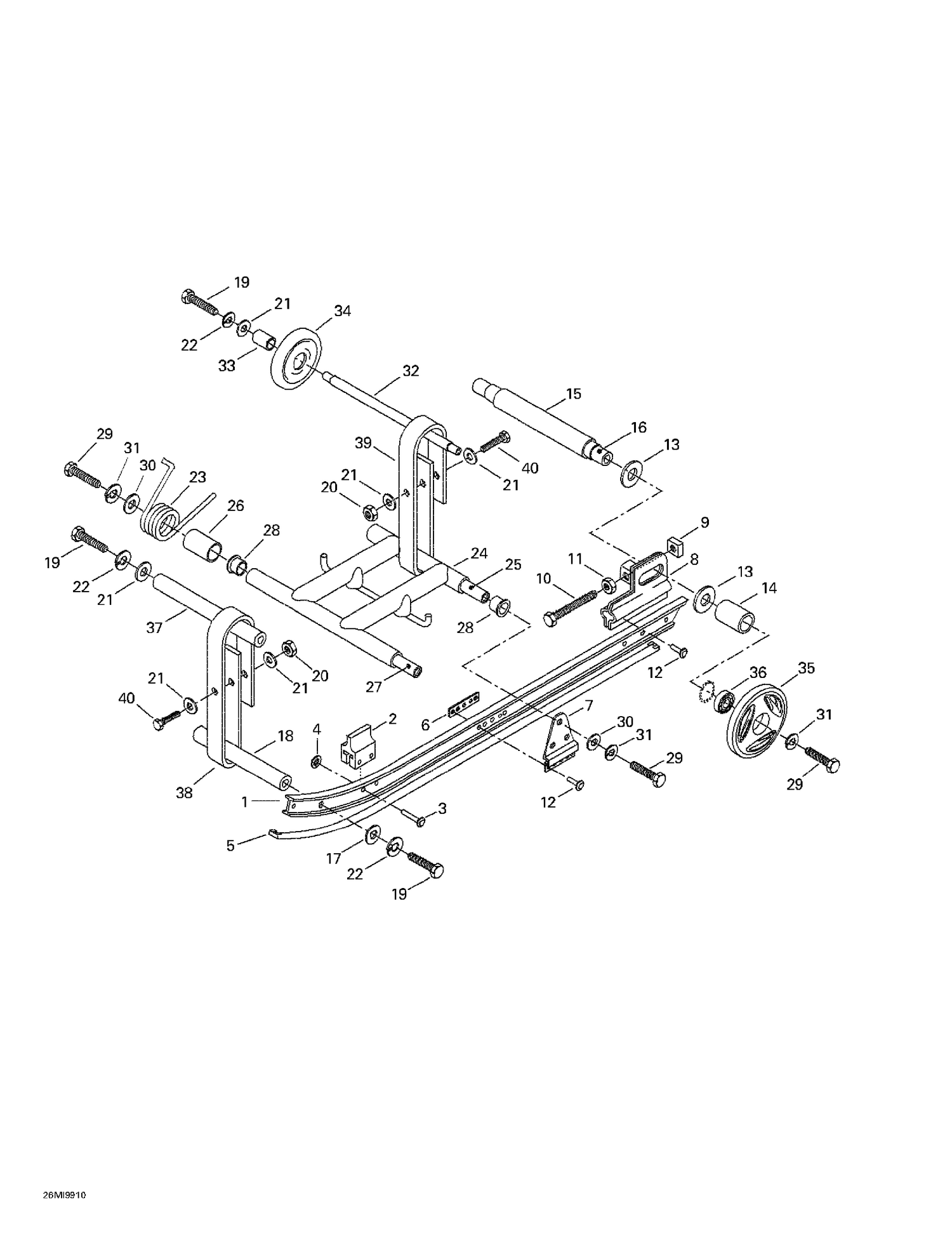

| Ref | Part Number | Description |
|---|
| 1 |
503176800 |
Runner |
| 2 |
570047900 |
FRONT RUBBER STOPPER - Call your local BRP dealership |
| 3 |
390004800 |
RIVET-STEEL SOLID - Call your local BRP dealership |
| 4 |
389804300 |
Push Nut |
| 5 |
415104100 |
Metallic Stripe |
| 6 |
503188900 |
SPACER - Call your local BRP dealership |
| 7 |
503149800 |
FRONT ARM SUPPORT - Call your local BRP dealership |
| 9 |
732610059 |
Square Nut M10 |
| 10 |
732601003 |
Hex. Screw M10 x 75 |
| 11 |
232006414 |
Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 12 |
390906200 |
FLAT HEAD STEEL RIVET - Call your local BRP dealership |
| 13 |
504108200 |
SHIM - Call your local BRP dealership |
| 14 |
503177800 |
Spacer |
| 15 |
503178000 |
SPACER - Call your local BRP dealership |
| 16 |
503178100 |
REAR AXLE - Call your local BRP dealership |
| 17 |
503183300 |
Washer This part replaces 503171000. |
| 18 |
503177200 |
FRONT AXLE - Call your local BRP dealership |
| 19 |
207182044 |
Hex. Screw M8 X 20 This part replaces 222082065. |
| 20 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 21 |
234082410 |
Flat Washer 8 mm This part replaces 224080251. |
| 22 |
234180411 |
WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership |
| 23 |
414880400 |
RH Paint Spring |
| 24 |
503177700 |
FRONT ARM - Call your local BRP dealership |
| 25 |
503177300 |
LOWER CENTER SHAFT - Call your local BRP dealership |
| 26 |
572110500 |
Bushing |
| 27 |
503178400 |
UPPER CENTER SHAFT - Call your local BRP dealership |
| 28 |
709402725 |
Steering Bushing This part replaces 415108000. |
| 29 |
207102544 |
Hex. Screw M10 X 25 This part replaces 222002565. |
| 30 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 31 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 32 |
503178200 |
REAR AXLE - Call your local BRP dealership |
| 33 |
503177400 |
SPACER - Call your local BRP dealership |
| 34 |
570067300 |
Idle Wheel |
| 36 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 37 |
506147600 |
Retainer Axle |
| 38 |
570068700 |
STOPPER STRAP - Call your local BRP dealership |
| 39 |
570069200 |
REAR STOPPER STRAP - Call your local BRP dealership |
| 414880500 |
LH |
PAINT SPRING - Call your local BRP dealership 414880500 |
| 414880500 |
Ressort |
Peint GA - Appelez votre concessionnaire BRP local 414880500 |
| 503161400 |
Plaque |
De réglage DR - Appelez votre concessionnaire BRP local 503161400 |
| 503161400 |
RH |
ADJUSTMENT PLATE - Call your local BRP dealership 503161400 |
