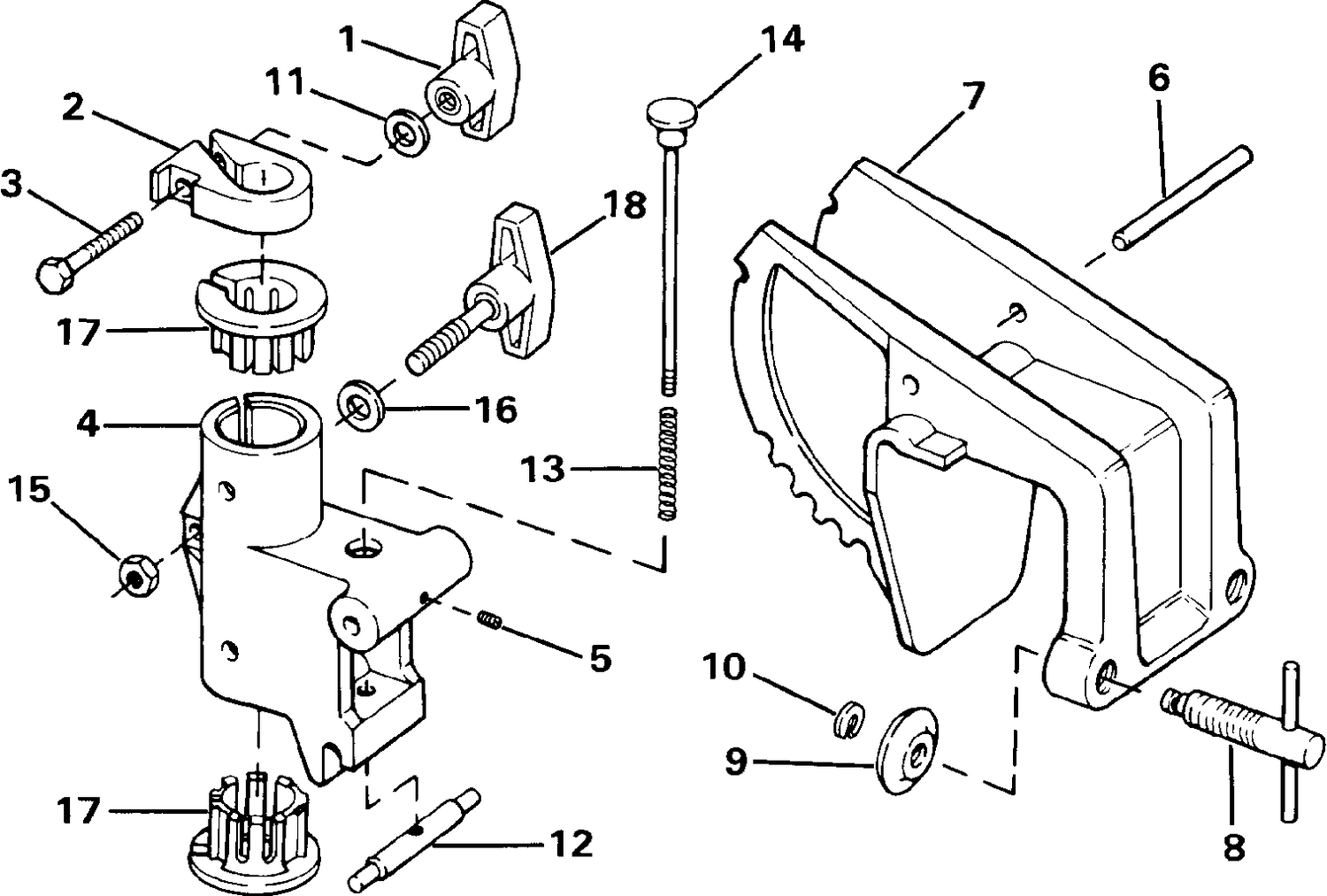

TRANSOM MOUNT STERN BRACKET
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0398863 | ADJUSTMENT KNOB, Tube to bracket |
| 2 | 0325617 | CLAMP, Motor tube height adj. |
| 3 | 0306427 | BOLT |
| 4 | 0116424 | SWIVEL BRACKET This part replaces 0395167. |
| 5 | 0321223 | SET SCREW |
| 6 | 0330500 | PIN Swivel brkt. to stern brkt. |
| 7 | 0394750 | STERN BRACKET ASSY |
| 8 | 0394749 | CLAMP SCREW & HANDLE ASSY. |
| 12 | 0320363 | LATCH BAR |
| 13 | 0320376 | SPRING, Rod assy, |
| 14 | 0386888 | KNOB & ROD, Latch |
| 17 | 0320364 | BUSHING |
