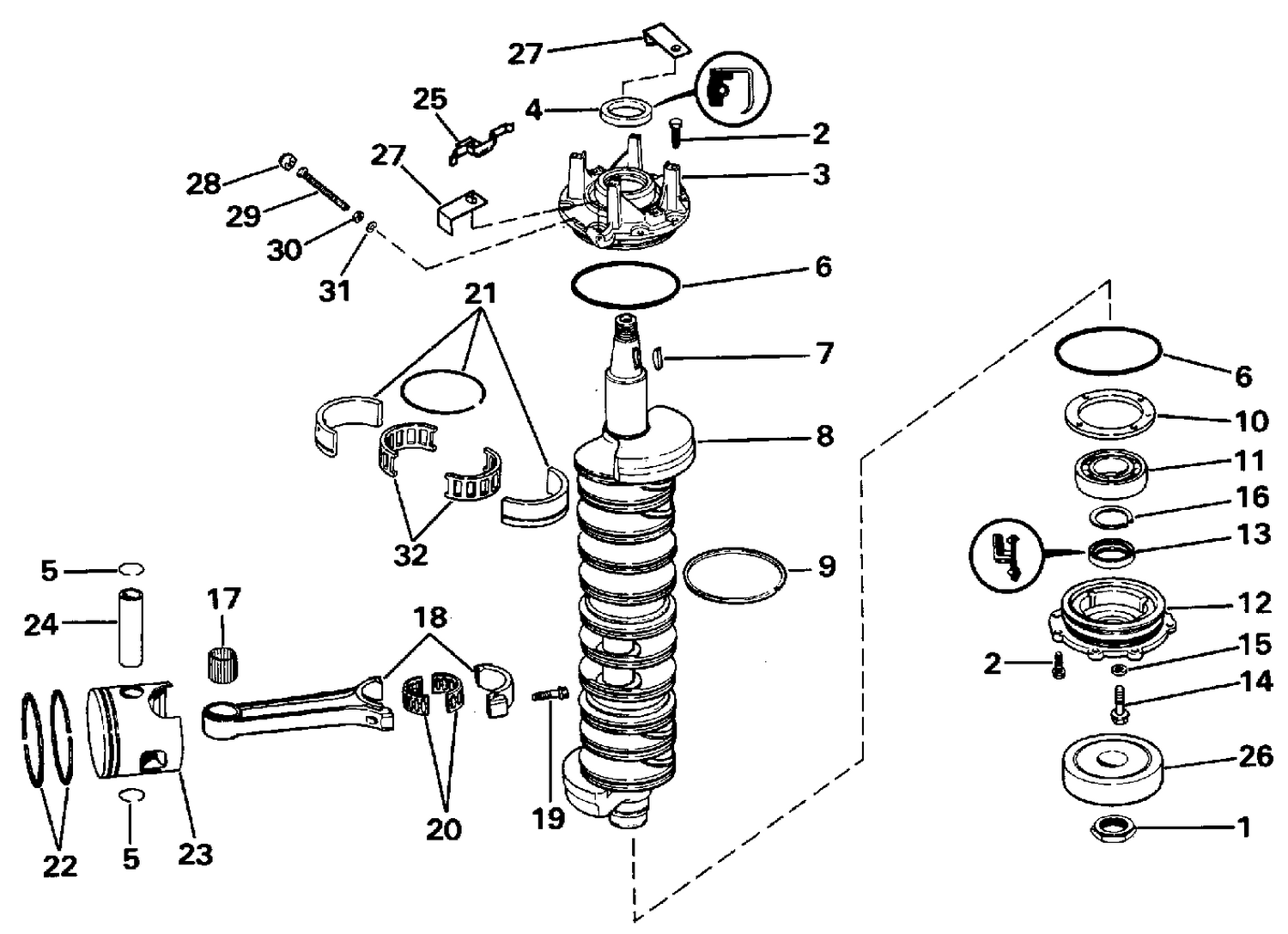

CRANKSHAFT & PISTON

CRANKSHAFT & PISTON

Parts (18)

RefPart NumberDescription
1 0332145 NUT, Damper to crankshaft
3 5000574 CRANKCASE HEAD & BRG. ASSY. This part replaces 0396668.
8 0397161 CRANKSHAFT ASSY
9 0326749 SEAL RING
12 5007695 CRANKCASE HEAD Assembly, Lower This part replaces 0393613.
16 0326047 Retaining Ring
17 0434844 BEARING, Wrist pin This part replaces 0391480.
18 0394488 CONNECTING RD ASSY.
20 0396041 BEARING, Connecting rod
21 0352960 BEARING RACE, Center main This part replaces 0320499.
22 0431844 RING SET, 0.0030 in. o.s.
22 0431870 RING SET, Standard
23 5006675 Piston&Ring Kt This part replaces 0398699.
23 5006676 Piston&Ring Kt This part replaces 0398700.
23 5006677 Pstn&Rng Kt.030 Os This part replaces 0431845.
23 5006678 Pstn&Rng Kt.030 Os This part replaces 0431846.
26 0394583 TORSIONAL DAMPER ASSY.
28 0314416 BUMBER, Advance screw
