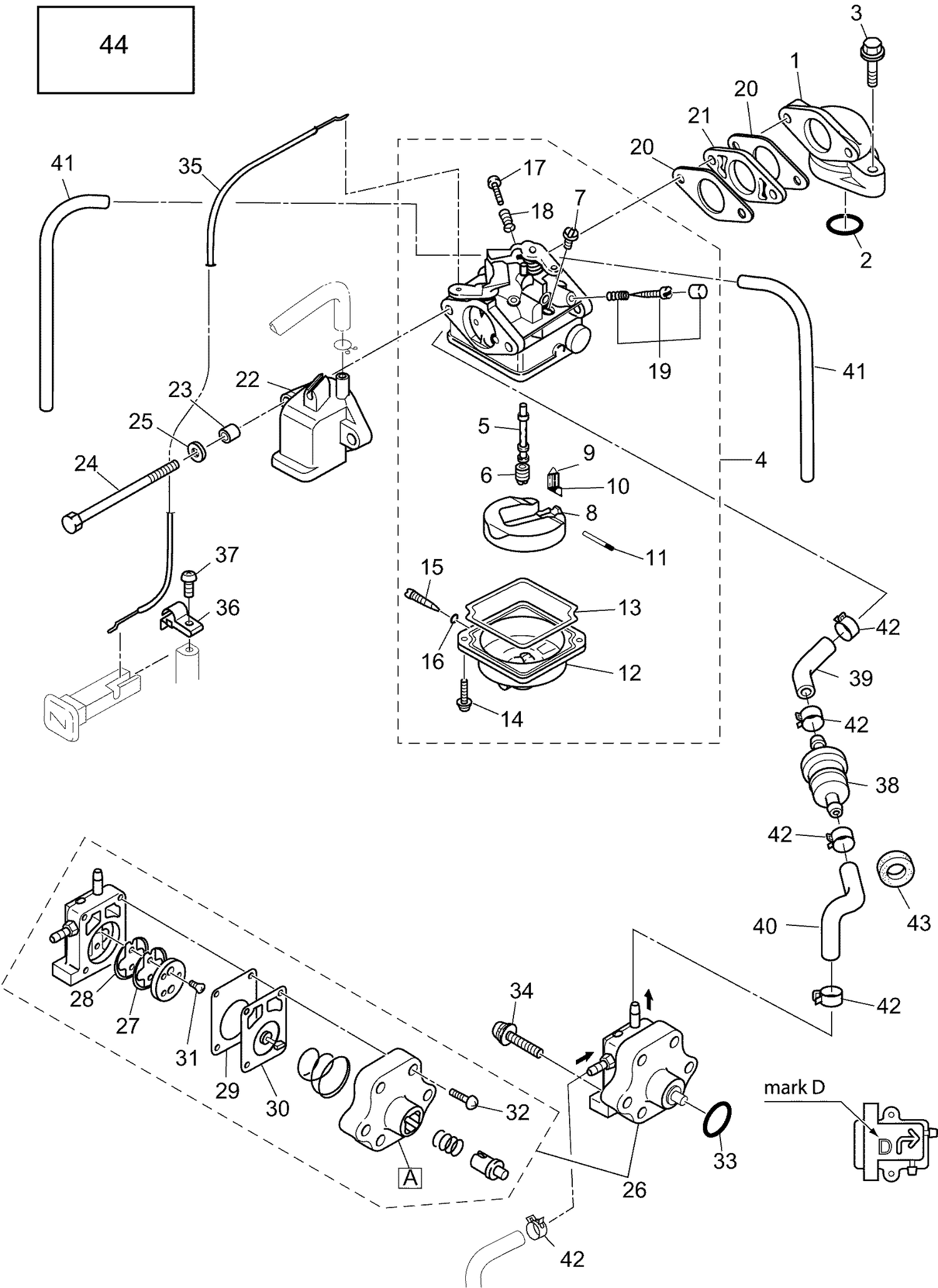

13-3_CARBURETOR & FUEL PUMP
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5041055 | Intake Manifold Assembly |
| 2 | 5040960 | Intake Manifold Gasket |
| 3 | 5041542 | Bolt |
| 20 | 5040959 | CARBURETOR GASKET |
| 21 | 5040976 | INSULATOR |
| 22 | 5040848 | Intake Silencer |
| 23 | 5040248 | COLLAR 6.2-9-7.4 |
| 24 | 5041597 | Bolt 6-85 |
| 33 | 5041003 | O-RING 2.6-18.7 |
| 34 | 5041621 | Screw |
| 35 | 5040887 | Choke Wire |
| 36 | 5041103 | Cable Holder |
| 37 | 5041608 | Screw |
| 38 | 5040140 | FUEL FILTER ASSEMBLY |
| 41 | 5041729 | Hose This part replaces 5041713. |
| 43 | 5040545 | Mount Rubber 9-16-4.3 |
| 45 | 5040239 | FUEL CONNECTOR |
| 46 | 5041041 | FUEL CONNECTOR PROTECTOR |
