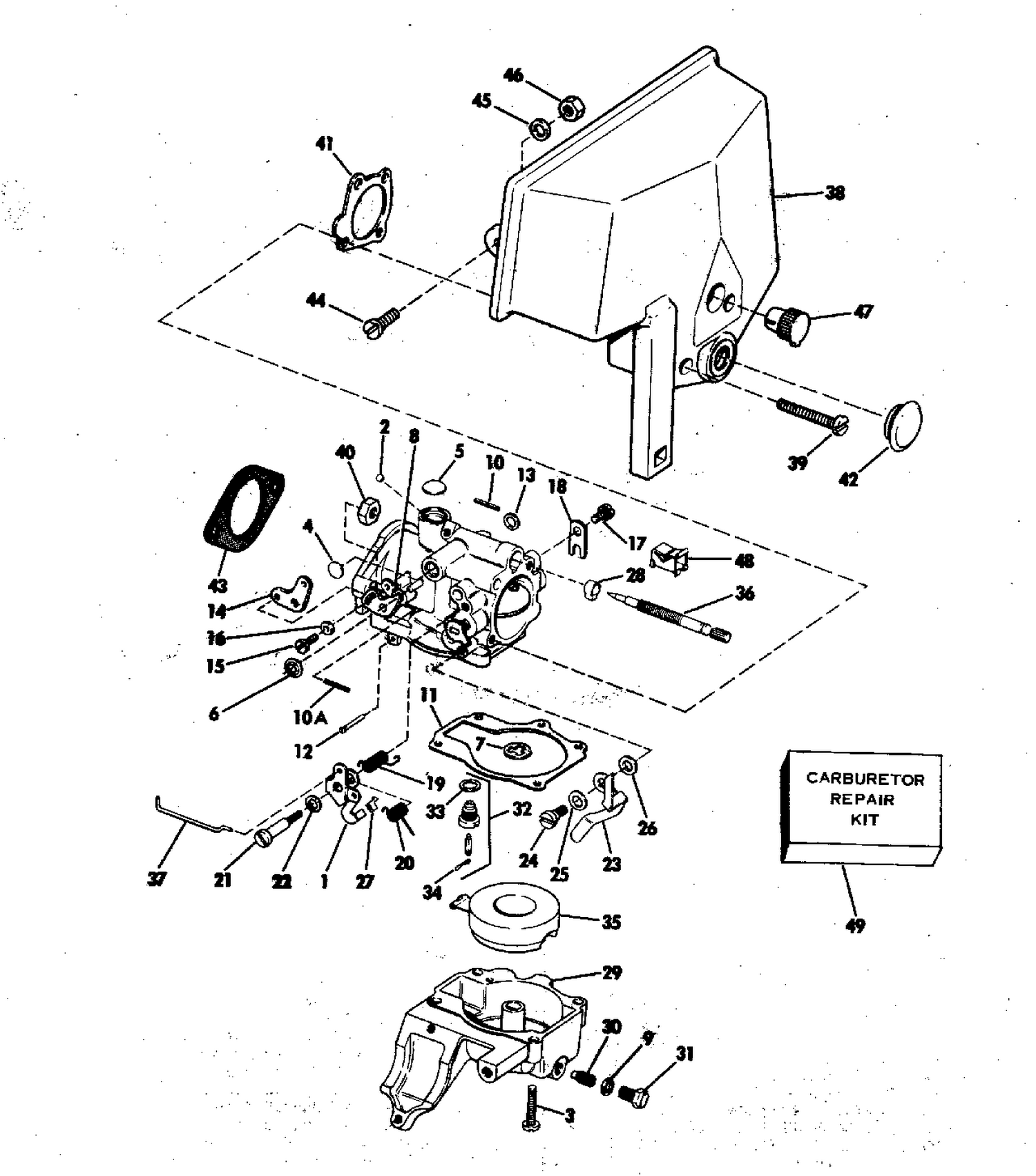

| Ref | Part Number | Description |
|---|
| 1 |
0318444 |
BELLCRANK, Choke |
| 3 |
0310302 |
SCREW PUMP ASSY |
| 10A |
0307901 |
ROLL PIN |
| 14 |
0320287 |
ADJUSTMENT LEVER |
| 15 |
0510278 |
SCREW |
| 18 |
0314906 |
CLIP |
| 19 |
0315239 |
SPRING, Choke return |
| 20 |
0318445 |
SPRING, Choke override |
| 21 |
0309720 |
SCREW, Cam follower |
| 22 |
0323693 |
WASHER, Bellcrank screw |
| 23 |
0315236 |
LEVER CHOKE |
| 27 |
0318536 |
SLEEVE |
| 28 |
0315232 |
RETAINER , Needle valve stbd |
| 29 |
0388278 |
FLOAT CHAMBER |
| 31 |
0307832 |
PLUG, Screw |
| 34 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 36 |
0388885 |
NEEDLE VALVE, Slow speed |
| 37 |
0318439 |
LINK, Throttle lever to choke bellcrank |
| 38 |
0391337 |
AIR SILENCER |
| 39 |
0324335 |
SCREW, Scilencer to carb. |
| 40 |
0316355 |
BUT, Carburetor mounting |
| 41 |
0323338 |
GASKET, Carb to silencer |
| 43 |
0325092 |
GASKET |
| 44 |
0305879 |
SCREW 1" LONG |
| 45 |
0306413 |
WASHER |
| 47 |
0328063 |
ADJUSTING KNOB, Slow speed This part replaces 0323622. |
| 48 |
0204490 |
DETENT CHOKE, Ling |
| 0391737 |
0391737 |
CARBURETOR ASSY., Std |
| 0391738 |
0391738 |
CARBURETOR ASSY., Long |
