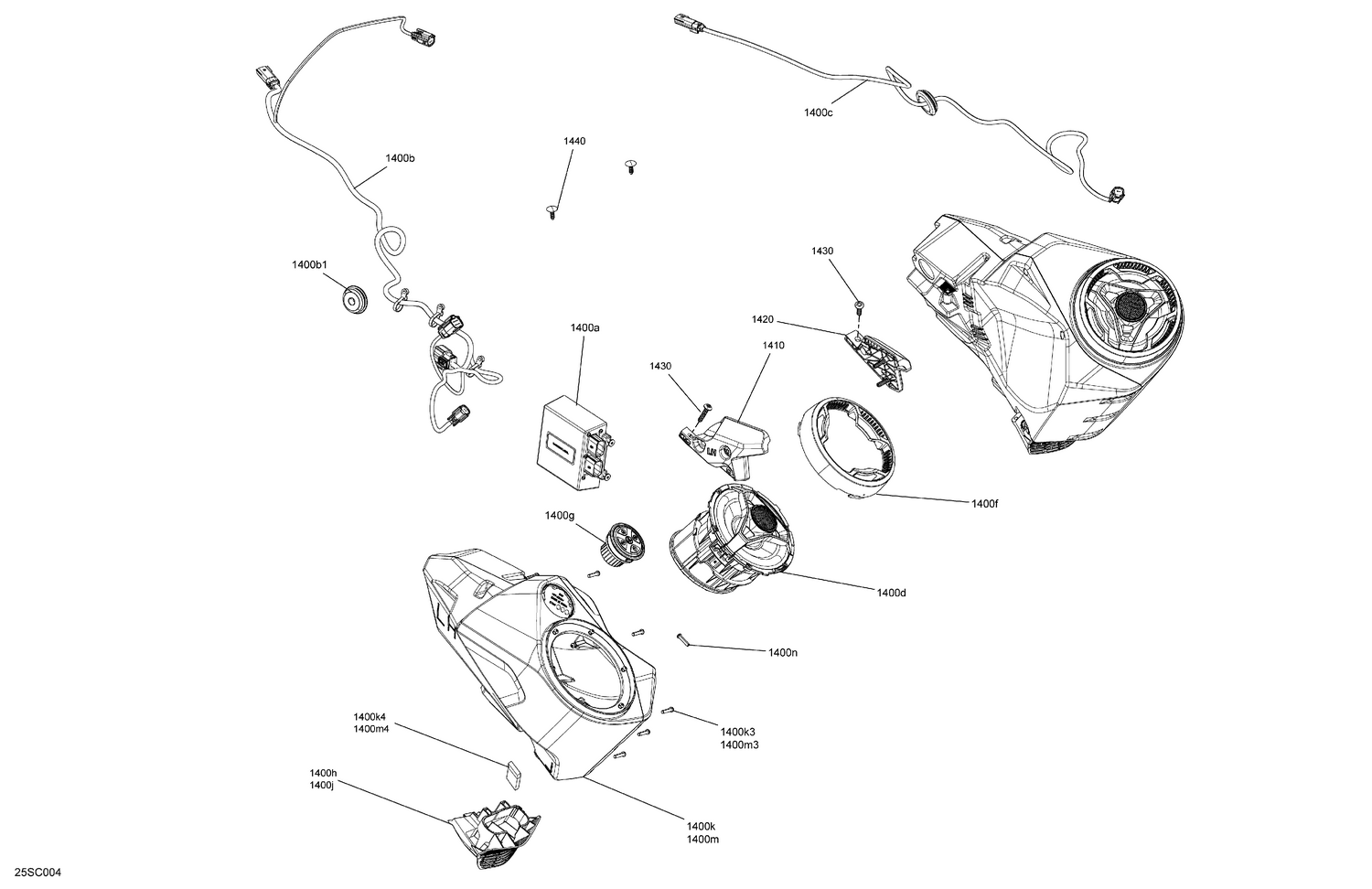

08- Electric - Audio System
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1400a | 278003464 | Amplifier |
| 1400b1 | 708301025 | Grommet |
| 1400c | 278003462 | Speaker Harness |
| 1400d | 278003463 | Speaker |
| 1400f | 278003466 | Speaker Grille |
| 1400g | 278003738 | Audio Control |
| 1400h | 278003616 | Deep Black, LH Protective Grille |
| 1400j | 278003617 | Deep Black, RH Protective Grille |
| 1400k3 | 250000207 | Plastite Torx Screw #10 X 7/8" |
| 1400k4 | 278003860 | Stopper |
| 1400m3 | 250000207 | Plastite Torx Screw #10 X 7/8" |
| 1400m4 | 278003860 | Stopper |
| 1400n | 250000207 | Plastite Torx Screw #10 X 7/8" |
| 1410 | 278003489 | LH Bracket |
| 1420 | 278003518 | RH Bracket |
| 1430 | 250000924 | Truss Cone Torx Screw M6 X 30 |
