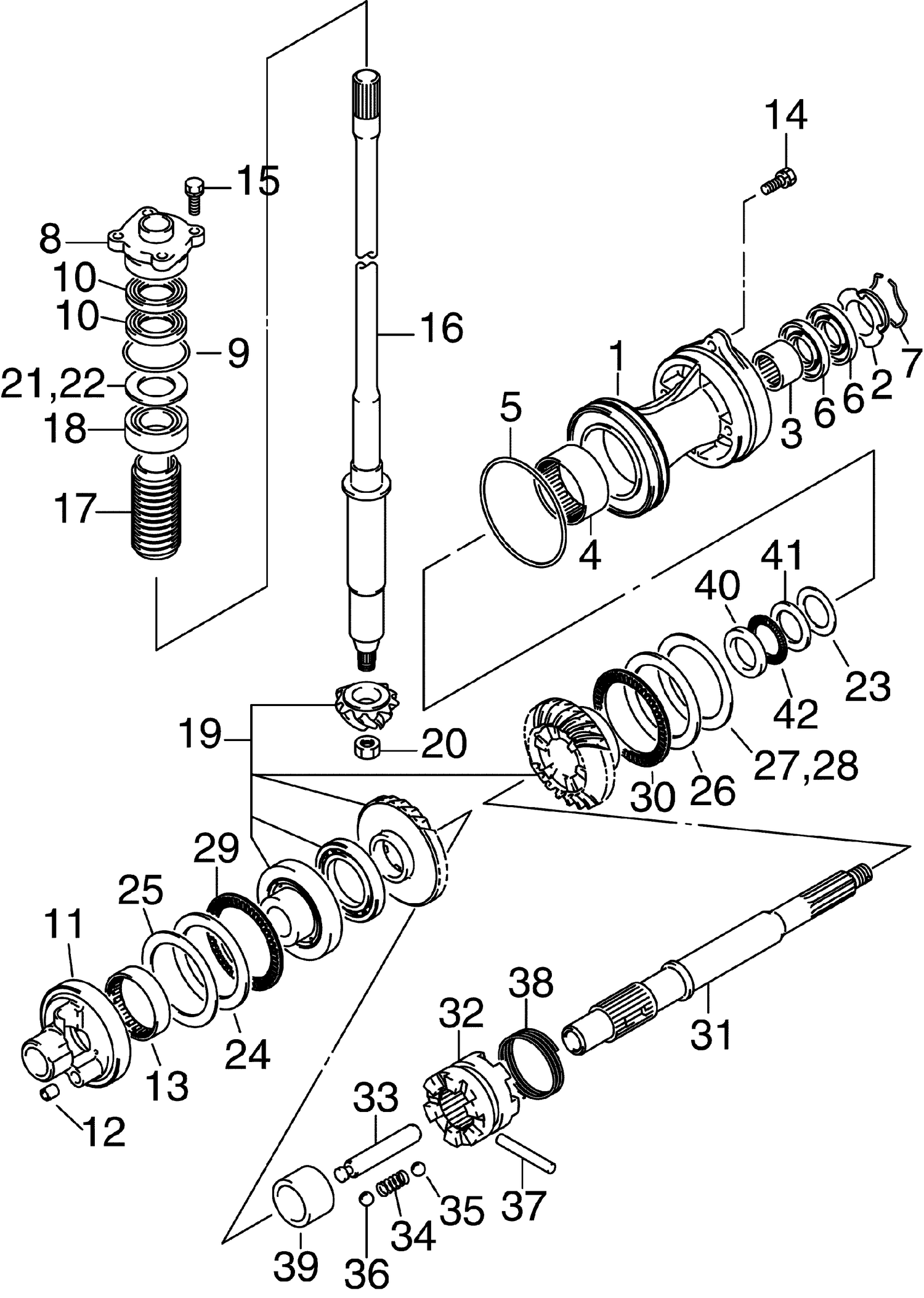

GEARS, COUNTER ROTATION
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5036114 | HOUSING, BEARING |
| 8 | 5033846 | HOUSING |
| 14 | 5031216 | BOLT |
| 15 | 5030398 | BOLT |
| 16 | 5034640 | SHAFT Assy, DRIVE 25 IN. MODELS This part replaces 5037217. |
| 17 | 5032553 | COLLAR, DRIVE SHAFT |
| 18 | 5030532 | BEARING |
| 20 | 5033966 | NUT |
| 21 | 5030975 | SHIM KIT, Driveshaft |
| 29 | 5034119 | BEARING (60X85X3.0mm) Reverse |
| 30 | 5033986 | BEARING (70X95X4.0mm) Forward |
| 37 | 5032584 | PIN |
| 38 | 5034145 | SPRING |
| 39 | 5034102 | SPACER, CLUTCH DOG FWD |
