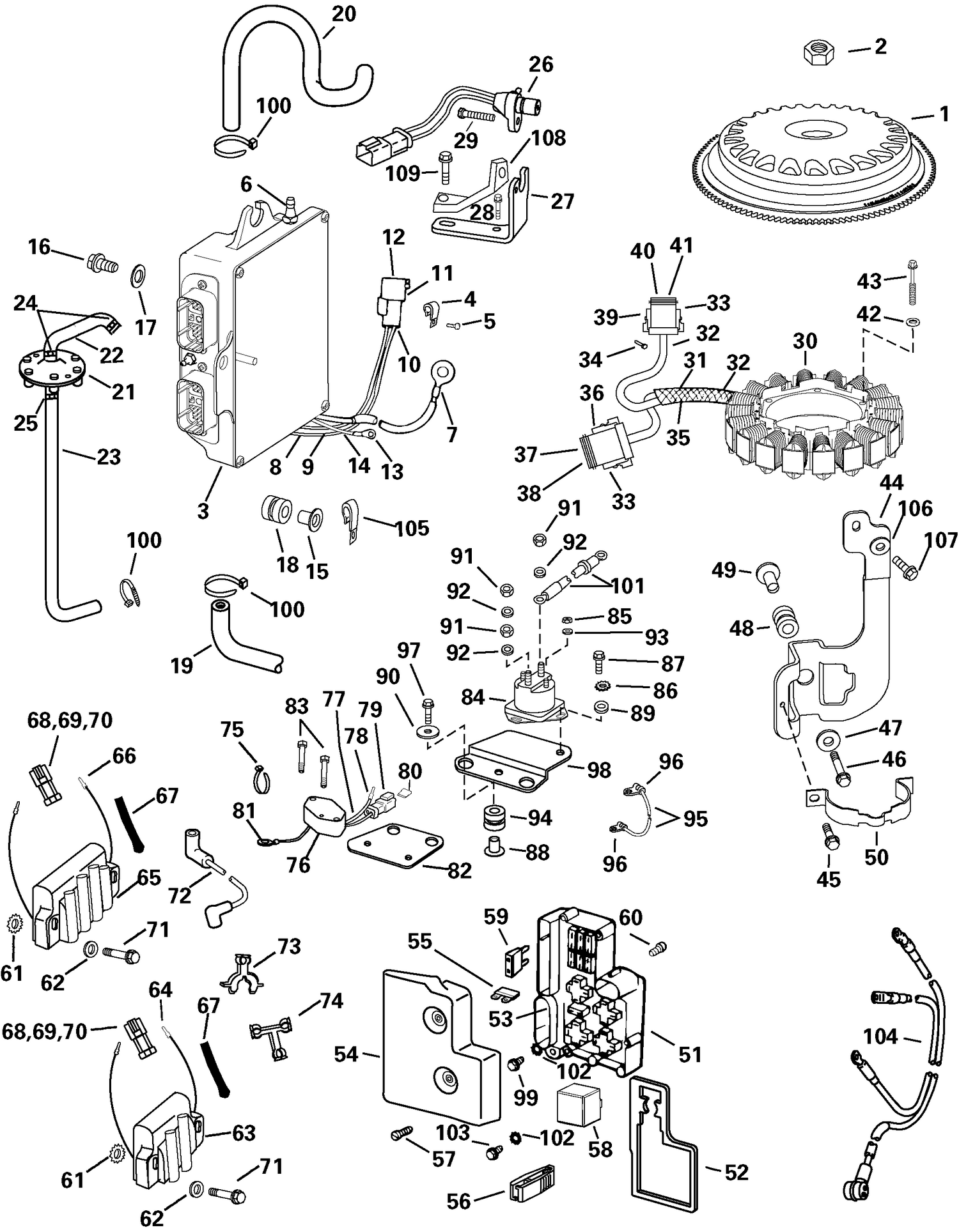

| Ref | Part Number | Description |
|---|
| 1 |
0586653 |
FLYWHEEL Assy |
| 9 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 19 |
0347034 |
HOSE, Block to adapter |
| 20 |
0350136 |
HOSE, EMM to cover plate |
| 21 |
5001347 |
DIAPHRAGM & HOSE Assy, Exhaust |
| 23 |
0350338 |
FLEXIBLE, pression d'échappement vers membrane |
| 26 |
0586452 |
SENSOR Assy, Crank position |
| 27 |
0346466 |
BRACKET, CPS |
| 30 |
0586571 |
STATOR Assy |
| 32 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 42 |
0360252 |
WASHER This part replaces 0306311. |
| 43 |
0343525 |
SCREW, Stator |
| 44 |
0347236 |
BRACKET, Capacitor |
| 50 |
0514891 |
CLAMP, Capacitor |
| 51 |
0586754 |
POWER DISTRIBUTION PANEL |
| 63 |
0586749 |
COIL Assy, Single |
| 65 |
0586745 |
COIL Assy, Dual |
| 72 |
5005810 |
LEAD Assy, Ignition coil This part replaces 5004960. |
| 73 |
0350056 |
RETAINER, High Tension Lead |
| 74 |
0350055 |
RETAINER, High tension leads |
| 76 |
0586546 |
FILTER Assy |
| 82 |
0349993 |
BRACKET, Filter assy to c/c |
| 84 |
0586842 |
SOLENOID This part replaces 0586730. |
| 87 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 95 |
0376349 |
FIL, masse |
| 98 |
0346784 |
BRACKET, Solenoid |
| 99 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 100 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 101 |
0386721 |
CÂBLE, 6GA, démarreur vers solénoïde |
| 105 |
0330151 |
CLAMP, Harness to oil tank boss |
| 108 |
0350936 |
BRACE, CPS bracket |
