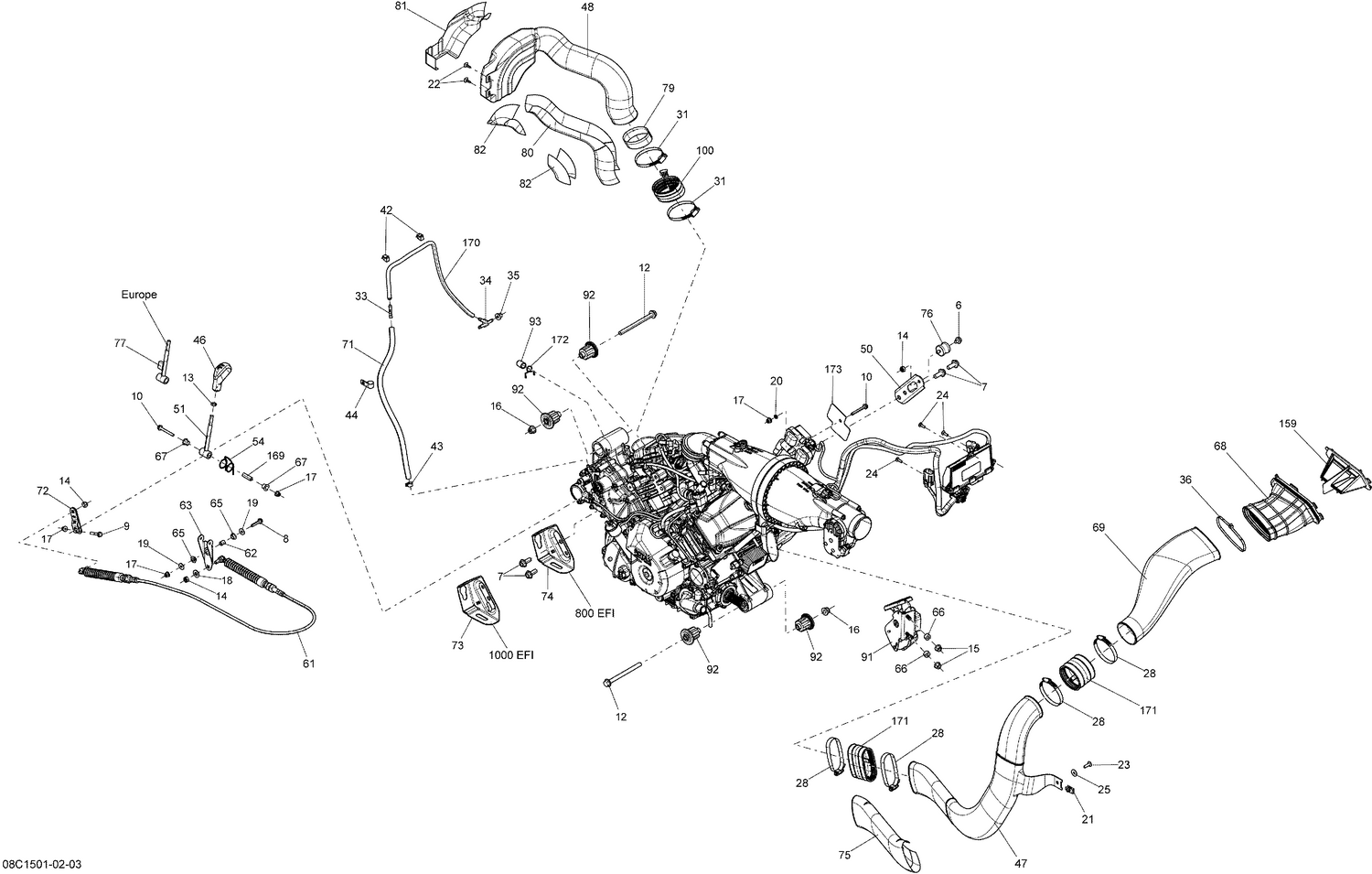

01- Engine _08C1502
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 207581046 | Flange Screw M8 x 10, Scotch Grip |
| 7 | 207602544 | Hex. Flange Screw M10 X 25 |
| 8 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 9 | 207663544 | Hex. Flange Screw M6 X 35 |
| 10 | 207665044 | Hex. Flange Screw M6 X 50 |
| 12 | 230602546 | Hex. Flange Screw M10 X 125 |
| 13 | 232180491 | Hex. Jam Nut M8 |
| 14 | 232581414 | Hex. Elastic Stop Nut M8 |
| 15 | 233081416 | Hex. Flange Nut M8 |
| 16 | 233201436 | Hex. Flange Elastic Nut M10 |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 234001410 | Flat Washer 10 mm |
| 19 | 234062410 | Flat Washer 6 mm |
| 20 | 234461608 | External Serrated Lock Washer 6 mm |
| 21 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 22 | 250000725 | Screw M4 X 16 |
| 23 | 250000722 | Torx Screw M6 X 20 |
| 24 | 250000720 | Torx Screw K50 X 16 |
| 25 | 250200082 | Flat Washer |
| 28 | 293650091 | Norma Clamp |
| 31 | 293650118 | Norma Gear Clamp |
| 33 | 293710039 | Straight Fitting |
| 34 | 293710059 | Y-Fitting |
| 35 | 293720029 | Grommet |
| 36 | 293750008 | Tie Wrap 368 mm |
| 42 | 414227300 | Clip |
| 43 | 414415200 | Spring Clamp |
| 44 | 518321570 | Open Clamp |
| 46 | 707000284 | Lever Handle |
| 47 | 707000639 | Air Inlet |
| 48 | 707000640 | CVT Air Outlet |
| 50 | 707000707 | Upper Engine Bracket |
| 54 | 707000750 | Lever Arm Spring |
| 61 | 707000775 | Shifting Cable |
| 62 | 707000801 | Bushing |
| 63 | 707000828 | Lower Lever Arm |
| 65 | 707000847 | Flanged Bushing |
| 66 | 707000848 | Bushing |
| 67 | 707000869 | Flanged Bushing |
| 68 | 707000908 | Adaptor |
| 69 | 707000909 | Primary Air Intake |
| 71 | 219704549 | Hose This part replaces 219704439. |
| 72 | 707000911 | Lever |
| 73 | 707000919 | Cable Support |
| 74 | XXX | Not Available As Spare Parts |
| 75 | 707000924 | Reflective Sheet |
| 76 | 707000949 | Rubber Isolator |
| 79 | 707000988 | Reflector |
| 80 | 707000989 | Reflective Sheet |
| 81 | 707000990 | Reflective Sheet |
| 82 | 707000991 | Reflective Sheet |
| 91 | 707001166 | Accelerator Pedal |
| 92 | 707001169 | Vibration Damper |
| 93 | 707001185 | Plug |
| 100 | 707001274 | Adaptor |
| 159 | 707001344 | CVT Filter |
| 169 | 707001376 | Bushing |
| 170 | 219704410 | Polyurethane Hose 10000Mm Long |
| 171 | 707002585 | Flexibale Adaptor This part replaces 707001467. |
| 172 | 707800506 | Retainer Clip |
