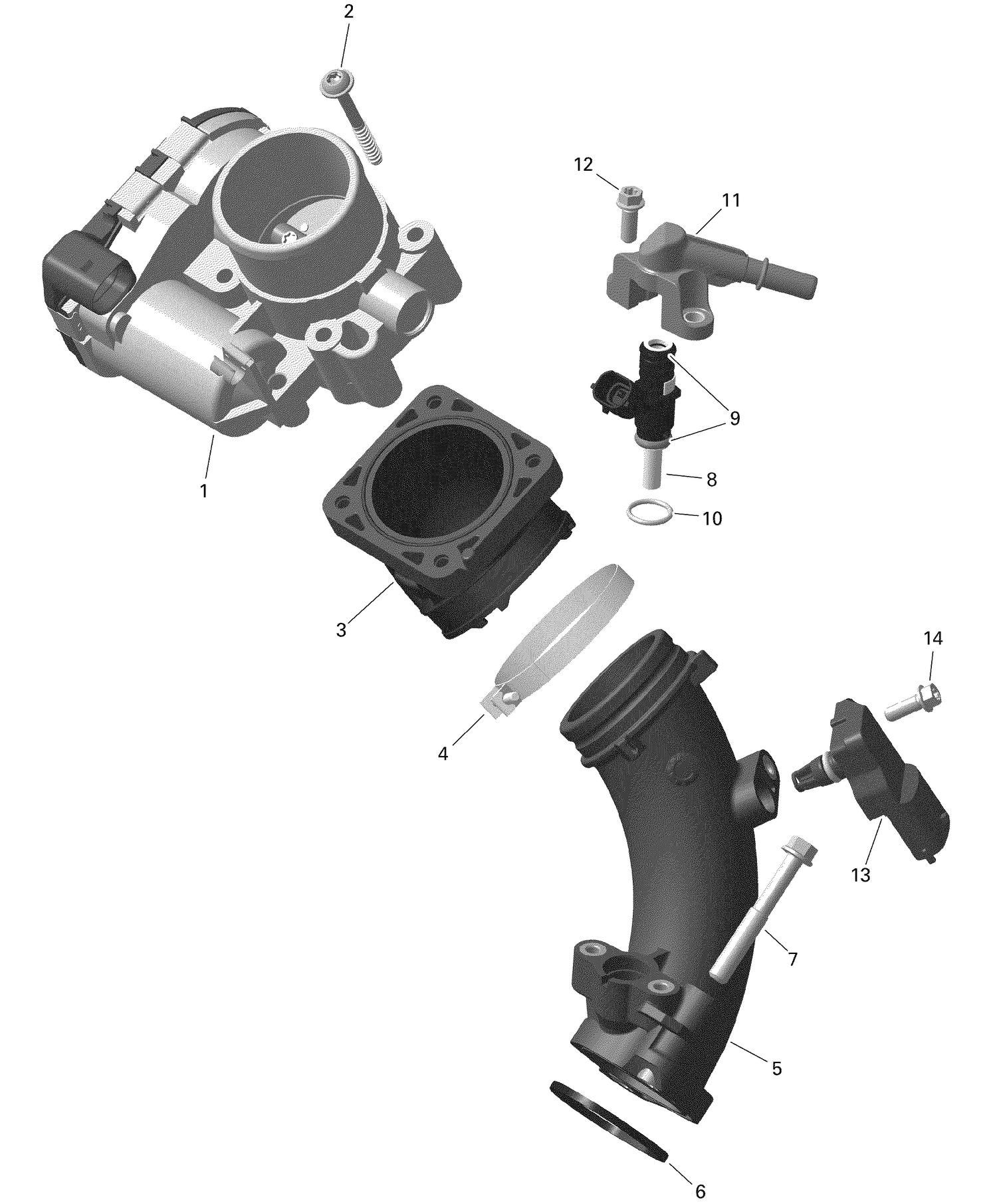

01- Rotax - Air Intake Manifold And Throttle Body - 2
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420893149 | Throttle Body This part replaces 420893147. |
| 2 | 420441588 | Torx Flange Screw M6 X 50 |
| 3 | 420267215 | Intake Neck This part replaces 420267176. |
| 4 | 420251480 | Clamp |
| 5 | 420267527 | Intake Adaptor |
| 6 | 420630642 | Gasket |
| 7 | 420641213 | Torx Flange Screw M8 X 55 |
| 8 | 420874886 | Injection Valve Ass'y This part replaces 420874849. |
| 9 | 420631220 | O-Ring |
| 10 | 420631296 | O-Ring This part replaces 420631295. |
| 11 | 420874905 | Fuel Rail |
| 12 | 420440164 | Torx Flange Screw M6 X 16 |
| 13 | 707000995 | Pressure And Temperature Sensor |
