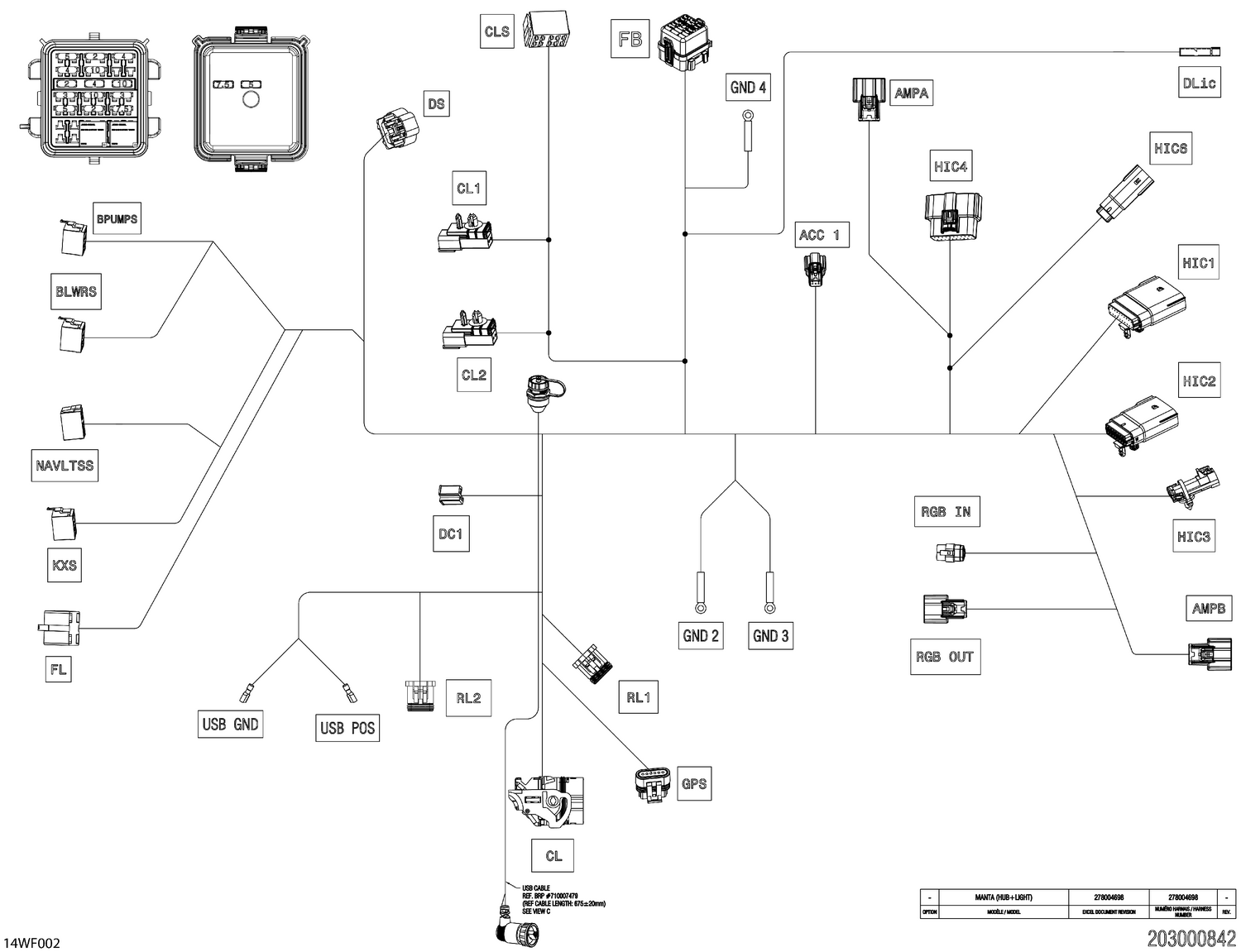

08- ELECTRIC - Console Wiring Harness - 278004698
Parts (97)
| Ref | Part Number | Description |
|---|---|---|
| ACC1 | 515178014 | Female Terminal |
| ACC1 | 515178954 | Housing |
| AMPA | 278002860 | Sealing Cap |
| AMPA | 515178018 | Female Terminal |
| AMPA | 515179228 | Connector Molex Female 8 Cavities |
| AMPB | 278002860 | Sealing Cap |
| AMPB | 515178018 | Female Terminal |
| AMPB | 515179228 | Connector Molex Female 8 Cavities |
| BLWRS | 710001875 | CONNECTOR_FEMALE 8 CAVITIES - Call your local BRP dealership |
| BLWRS | 710003047 | Terminal |
| BLWRS | 710003048 | Terminal |
| BPUMPS | 710003047 | Terminal |
| BPUMPS | 710003048 | Terminal |
| CL | 710001589 | Female Terminal |
| CL | 710001590 | Female Terminal |
| CL | 710001592 | Plug |
| CL | 710001593 | Plug |
| CL | 710001727 | Female Terminal |
| CL | 710007617 | Plug |
| CL | 710007619 | Seal Joint |
| CL | 710007620 | Seal Joint |
| CL | 710007623 | Femal Terminal |
| CL | 710007650 | Cover |
| CL | 710007658 | Femal Terminal |
| CL | 710008036 | Female Molex Connector 53 Cavities |
| CL1 | 515179135 | Male Amphenol Connector 2 Cavities |
| CL1 | 515179136 | Amphenol Connector Lock |
| CL1 | 710005748 | Terminal |
| CL2 | 515179135 | Male Amphenol Connector 2 Cavities |
| CL2 | 515179136 | Amphenol Connector Lock |
| CL2 | 710005748 | Terminal |
| CLS | 710002000 | Housing |
| CLS | 710003047 | Terminal |
| DC1 | 278003787 | Terminal |
| DC1 | 710005373 | Housing |
| DLIC | 278001007 | Insulated Sheath |
| DLIC | 710000421 | Female Terminal |
| DS | 710000925 | Terminal |
| DS | 710001153 | Seal Wire |
| DS | 710001164 | Female Terminal |
| DS | 710007151 | Female Delphi Connector 5 Cavities |
| FB | 278000218 | Wire Seal |
| FB | 278001065 | Wire Seal |
| FB | 278002880 | Seal Plug |
| FB | 278003448 | Fuse Base Ass'y |
| FB | 278004217 | Fuse Box Cover |
| FB | 710000741 | Little Fuse |
| FB | 710000742 | Little Fuse, 5 Amperes |
| FB | 710000743 | Little Fuse, 7.5 Amperes |
| FB | 710000744 | Little Fuse, 10 Amperes |
| FB | 710000890 | Female Terminal |
| FB | 710000918 | Female Terminal |
| FB | 710001008 | Little Fuse, 3 AMP |
| FB | 710007051 | Little Fuse, 4 Amps |
| FB | 715900824 | Relay This part replaces 710001778. |
| FL | 278004230 | Delphi Female 4 Cavities Connector |
| FL | 710003047 | Terminal |
| FL | 710003048 | Terminal |
| GND2 | 278001392 | Open Barrel Terminal |
| GND3 | 278000992 | Open Barrel |
| GPS | 278002299 | Female Terminal Housing 6 Circuits |
| GPS | 515175812 | Plug |
| GPS | 710001119 | Female Terminal |
| HIC1 | 278002852 | Housing 20 Circuits |
| HIC1 | 278002860 | Sealing Cap |
| HIC1 | 515178013 | Male Terminal |
| HIC1 | 515178223 | Clip Connector |
| HIC2 | 278002860 | Sealing Cap |
| HIC2 | 515178013 | Male Terminal |
| HIC2 | 515178223 | Clip Connector |
| HIC2 | 515178293 | Male Terminal |
| HIC2 | 710005976 | Connector Molex Mx150 16 Pos |
| HIC3 | 710001159 | Wire Seal |
| HIC3 | 710001323 | Lock |
| HIC3 | 710002325 | Housing |
| HIC3 | 710002326 | Terminal |
| HIC4 | 278002858 | Female Housing 20 Circuits |
| HIC4 | 278002860 | Sealing Cap |
| HIC4 | 515178018 | Female Terminal |
| HIC6 | 278003866 | Housing 6 Circuits |
| HIC6 | 515178013 | Male Terminal |
| KXS | 710003047 | Terminal |
| KXS | 710003048 | Terminal |
| NAVLTSS | 710002000 | Housing |
| NAVLTSS | 710003047 | Terminal |
| NAVLTSS | 710003048 | Terminal |
| R1 | 515177246 | Shrink Tubing, 6 mm |
| R1 | 710010264 | Resistor |
| R2 | 515177246 | Shrink Tubing, 6 mm |
| R2 | 710010264 | Resistor |
| R3 | 515177246 | Shrink Tubing, 6 mm |
| R3 | 710010264 | Resistor |
| RL1 | 278002857 | Female Terminal |
| RL1 | 515177441 | Female Housing |
| RL2 | 278002857 | Female Terminal |
| RL2 | 515177441 | Female Housing |
| 1800 | 278004698 | Console Wiring Harness |
