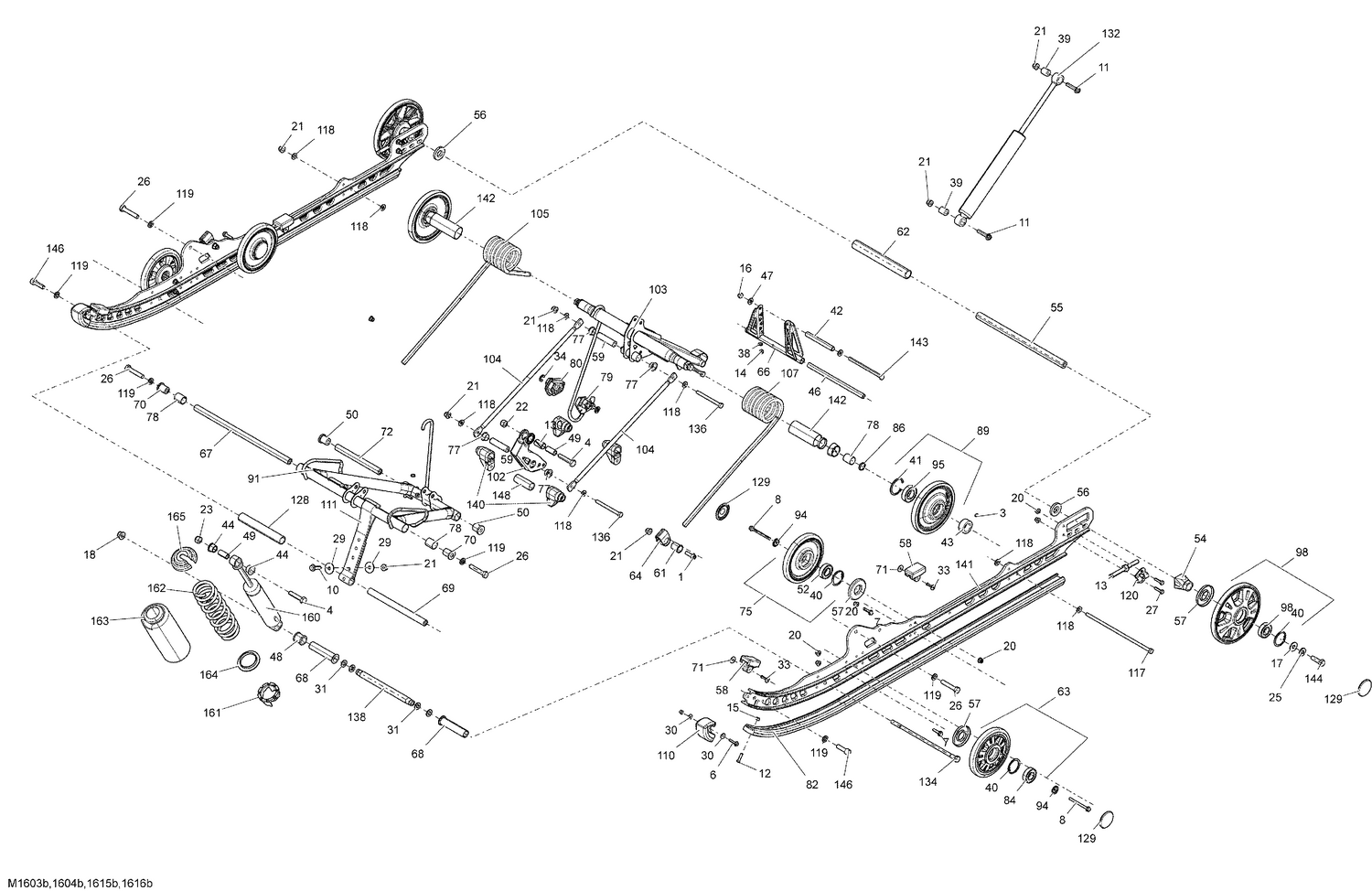

| Ref | Part Number | Description |
|---|
| 1 |
205082554 |
Socket Screw M8 X 25 |
| 3 |
206260844 |
Socket Set Screw M6 X 8 |
| 4 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 6 |
207652544 |
Hex. Flange Screw M5 X 25 |
| 7 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 8 |
207667056 |
Hex. Flange Screw M6 X 70 |
| 10 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 11 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 12 |
208562531 |
Phillips Screw M6 X 25 |
| 13 |
230100054 |
Hex Screw M10 x 100 |
| 14 |
232061404 |
Hexagonal Nut M6 |
| 15 |
232561434 |
Elastic Stop Nut M6 |
| 16 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 17 |
503191910 |
Washer |
| 18 |
233201466 |
Flange Elastic Nut M10 |
| 19 |
233251434 |
Flange Elastic Nut M5 |
| 20 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 21 |
233281466 |
Elastic Flange Nut M8 |
| 22 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 23 |
233601466 |
Elastic Locking Nut M10 |
| 25 |
234201474 |
Conical Spring Washer 10 mm |
| 26 |
250000605 |
Hex. Screw S.Grip M10 X 55 |
| 27 |
250000619 |
Hex Screw M6 X 25 |
| 29 |
250200128 |
Flat Washer 8 mm |
| 30 |
250200140 |
Washer |
| 31 |
250200143 |
Flat Washer |
| 33 |
293150013 |
Pop Rivet 3/16" |
| 34 |
293370013 |
E-Circlip |
| 36 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 37 |
293800060 |
Loctite 243, 10 ml |
| 38 |
408200700 |
Grease Fitting |
| 39 |
414936000 |
Bushing |
| 40 |
415129371 |
Retaining Ring |
| 41 |
415129780 |
Retaining Ring |
| 42 |
503144300 |
Upper Axle, Pivot Arm |
| 43 |
503168800 |
Retaining Ring |
| 44 |
503189117 |
Urethane Bushing |
| 46 |
503189156 |
Pivot Arm Axle |
| 47 |
503189157 |
Washer |
| 48 |
503189271 |
Bushing |
| 49 |
503189282 |
Bushing |
| 50 |
503189324 |
Bushing |
| 52 |
503190396 |
Ball Bearing |
| 54 |
503190428 |
Rear Wheel Spacer |
| 55 |
503190429 |
Rear Axle |
| 56 |
503190432 |
Washer |
| 57 |
503190434 |
Labyrinth Seal |
| 58 |
503190576 |
Rubber Stopper |
| 59 |
503190643 |
Axle Bar (Long) |
| 61 |
861805547 |
Spring Support Kit This part replaces 503190754. |
| 62 |
503191108 |
Spacer |
| 63 |
503191152 |
Black, Wheel Ass'y 147 mm |
| 64 |
861805547 |
Spring Support Kit This part replaces 503191183. |
| 66 |
503191209 |
Pivot Arm |
| 67 |
503191215 |
Upper Shaft |
| 68 |
503191259 |
Center Bushing |
| 69 |
503191260 |
Axle Strap |
| 70 |
503191262 |
Bushing |
| 71 |
503191273 |
Washer |
| 72 |
503191279 |
Lower Shaft |
| 75 |
503191311 |
Black, Wheel Ass'y 147 mm |
| 77 |
503191555 |
Swivel Bushing |
| 78 |
503191556 |
Extended Bushing |
| 79 |
503191565 |
LH Cam Adjuster |
| 80 |
503191566 |
RH Cam Adjuster |
| 82 |
503191619 |
Slider 137 |
| 84 |
503191624 |
Full Moon Wheel Ass'y, 147 mm |
| 86 |
503191651 |
Washer |
| 89 |
503191738 |
Black, Wheel Ass'y 155 mm |
| 91 |
503191752 |
Front Arm |
| 94 |
503191820 |
Wheel Cup M6 |
| 95 |
503193548 |
Ball Bearing This part replaces 503191982. |
| 98 |
503191742 |
Black, Wheel Ass'y, 180 mm |
| 102 |
503192211 |
Rocker |
| 103 |
503192252 |
Rear Arm Ass'y This part replaces 503192253. |
| 104 |
503196617 |
Link Rod This part replaces 503192255. |
| 105 |
503192080 |
RH Spring |
| 107 |
503192081 |
LH Spring |
| 110 |
503192299 |
Runner Protector |
| 111 |
503192360 |
Stopper Strap |
| 117 |
503192440 |
Bolt M8 X 248mm |
| 118 |
503192494 |
Washer |
| 119 |
503192496 |
Washer |
| 120 |
503192583 |
Tensioner |
| 128 |
503196943 |
Spacer This part replaces 503192678. |
| 129 |
503192771 |
Black, Wheel Cap |
| 130 |
503193037 |
Bushing |
| 132 |
503193187 |
Rear Shock Seal HPG |
| 134 |
503193227 |
Bolt M10 X 251MM |
| 136 |
503193372 |
Screw M8 X 90 |
| 138 |
503193435 |
Pivot Axle |
| 140 |
503193894 |
Casted Support |
| 141 |
503195714 |
Rail Suspension 137 This part replaces 503193899. |
| 142 |
572080700 |
Bushing |
| 143 |
732601197 |
Bolt M8, Short |
| 144 |
250000817 |
Hex Screw With Nilon Patch, M10 X 35 |
| 146 |
205503554 |
Socket Head Screw M10 X 35 |
| 148 |
503191552 |
Bushing |
| 160 |
503192266 |
Center Shock |
| 161 |
505073625 |
Adjustment Cam |
| 162 |
503191882 |
Black, Spring |
| 163 |
503193663 |
Protector |
| 164 |
503191872 |
Spring Guide |
