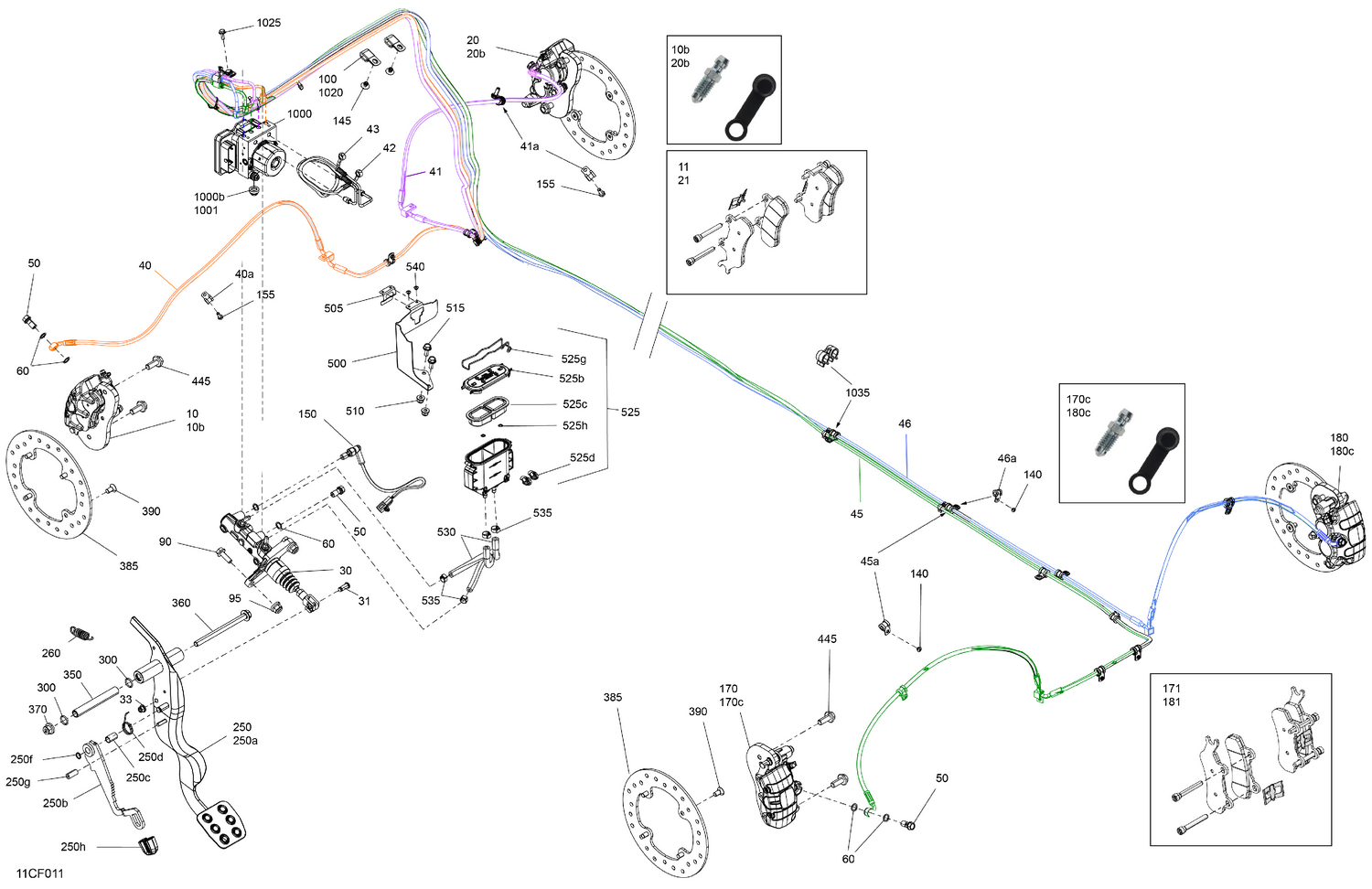

03- Mechanic - Brake System
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 705601017 | Bleeding Screw |
| 11 | 703501198 | LH/RH Front Brake Pad Set |
| 20b | 705601017 | Bleeding Screw |
| 21 | 703501198 | LH/RH Front Brake Pad Set |
| 30 | 705602306 | Master Cylinder |
| 31 | 250000669 | Socket Head Screw M8 X 16 |
| 33 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 40a | 293650256 | Clamp |
| 41a | 293650256 | Clamp |
| 42 | 705601915 | Front Master Cylinder Hose |
| 43 | 705601916 | Rear Master Cylinder Hose |
| 45a | 293650256 | Clamp |
| 46a | 293650256 | Clamp |
| 50 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 60 | 705601628 | Copper Washer |
| 90 | 207682544 | Hex. Flange Screw M8 X 25 |
| 95 | 233281416 | Hex. Elastic Flange Nut M8 |
| 100 | 515175980 | OPEN CLAMP - Call your local BRP dealership |
| 140 | 293150293 | Pop Rivet 3/16 X ,425 |
| 145 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 150 | 705601669 | Brake Switch |
| 155 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 170c | 705601017 | Bleeding Screw |
| 171 | 703501199 | LH/RH Rear Brake Pad Set |
| 180c | 705601017 | Bleeding Screw |
| 181 | 703501199 | LH/RH Rear Brake Pad Set |
| 250a | 705601777 | Brake Pedal |
| 250b | 705601725 | Lever |
| 250c | 705601722 | Bushing |
| 250d | 705602266 | Return Spring |
| 250f | 705601770 | Circlip |
| 250g | 219704549 | Hose |
| 250h | 708002655 | Adjustment Handle |
| 260 | 705600792 | Brake Pedal Spring |
| 300 | 293300144 | O-Ring |
| 350 | 705601373 | Inside Sleeve |
| 360 | 230603046 | Hex. Flange Screw, M10 X 130 |
| 370 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 385 | 705601511 | Brake Disc |
| 390 | 250000143 | Torx Screw M8 X 25, Scotch Grip |
| 445 | 207502546 | Hex. Flange Screw M10 X 25 |
| 500 | 705601567 | Support |
| 505 | 705601608 | Stopper Bracket |
| 510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 515 | 207682044 | Hex. Flange Screw M8 X 20 |
| 525b | 219800350 | Diaphragm Cover Ass'y |
| 525c | 219800350 | Diaphragm Cover Ass'y |
| 525d | 705601073 | Oil Level Sensor |
| 525g | 705601294 | Spindle Lock |
| 525h | 211100002 | Push Nut |
| 530 | 705601603 | Hose |
| 535 | 293650046 | Oetiker Clamp |
| 540 | 293150293 | Pop Rivet 3/16 X ,425 |
| 1000b | 710003279 | Shock Damper |
| 1001 | 710003279 | Shock Damper |
| 1020 | 515175980 | OPEN CLAMP - Call your local BRP dealership |
| 1025 | 207661644 | Hex. Flange Screw M6 X 16 |
