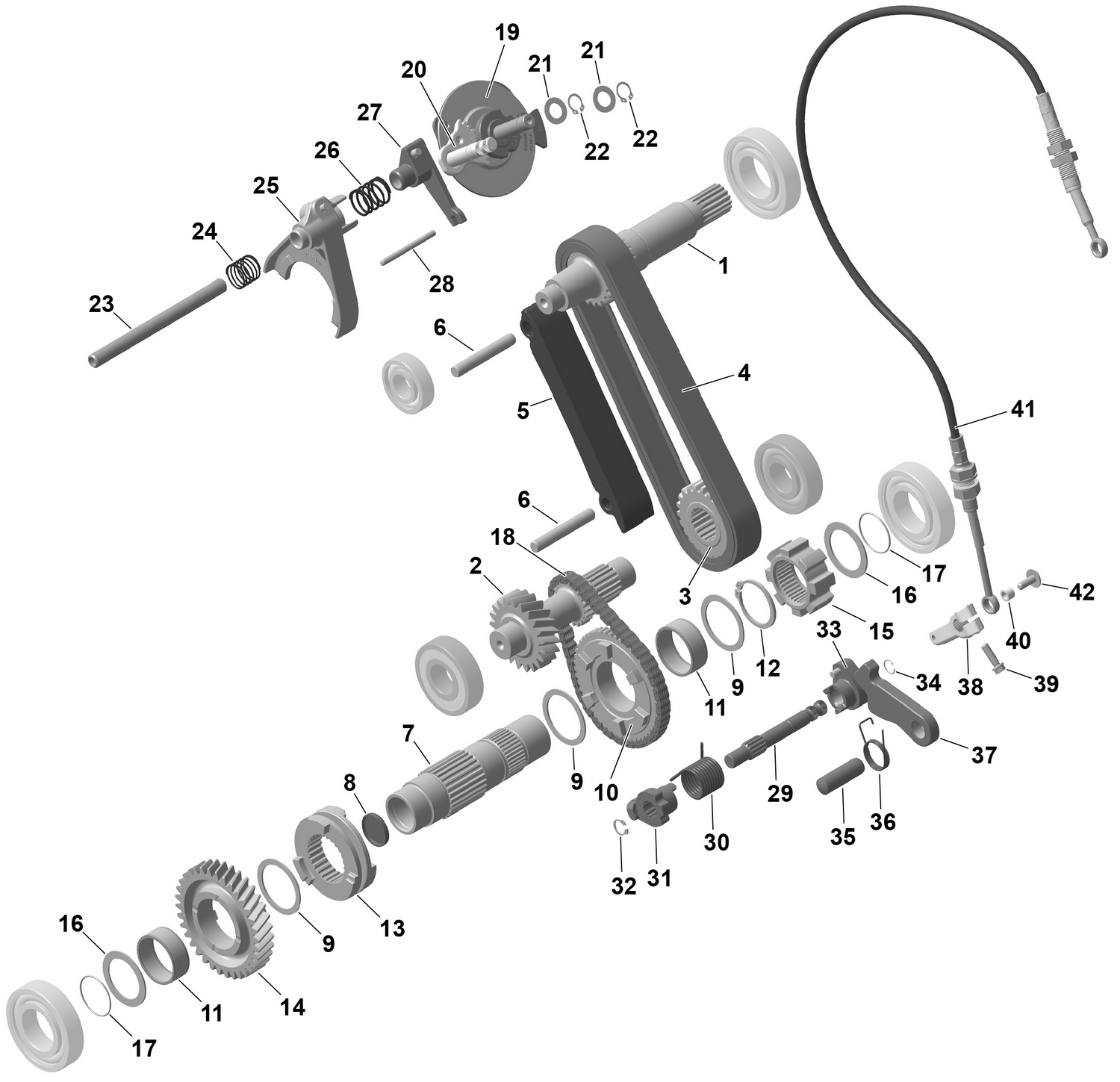

01- ROTAX - GearBox
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420637332 | Counter Shaft |
| 3 | XXX | Not Available As Spare Parts |
| 4 | 420297087 | Hyvo Chaine |
| 5 | 420936030 | Chain Guide |
| 6 | 420229475 | Needle Pin |
| 9 | 420244381 | Thrust Washer |
| 10 | 420637841 | Gear Pinion 49T |
| 11 | 420632892 | Needle Cage |
| 12 | 420845656 | Retaining Ring |
| 15 | XXX | Not Available As Spare Parts |
| 16 | 420634946 | Gear |
| 18 | 420950845 | O-Ring |
| 19 | 420898532 | Chain |
| 20 | 420637939 | Shift Gate |
| 21 | 420637975 | Shift shaft Ass'y |
| 22 | 420827261 | Thrust Washer |
| 23 | 420945470 | Retaining Ring |
| 24 | 420637920 | Fork Spindle |
| 25 | 420638070 | Spring |
| 26 | 420637906 | Gearshift Fork |
| 27 | 420638075 | Spring |
| 28 | 420637916 | Shifting Block |
| 29 | 420354435 | Dowel Pin |
| 30 | 420637860 | Shift Shaft |
| 31 | 420638171 | Hairpin Spring |
| 32 | 420637880 | Hub |
| 33 | 420945470 | Retaining Ring |
| 34 | 420637875 | Shift Cam Ass'y |
| 35 | 420245440 | Snap Ring |
| 36 | 420220965 | Dowel Pin |
| 37 | 420638180 | Coil Spring |
| 38 | 420257635 | Parking Lock Lever |
| 39 | 420848056 | Shifting Lever |
| 40 | 420440207 | Torx Flange Screw M6 X 20 |
| 41 | 420647295 | Sleeve |
| 42 | 420945896 | Bowden Cable |
