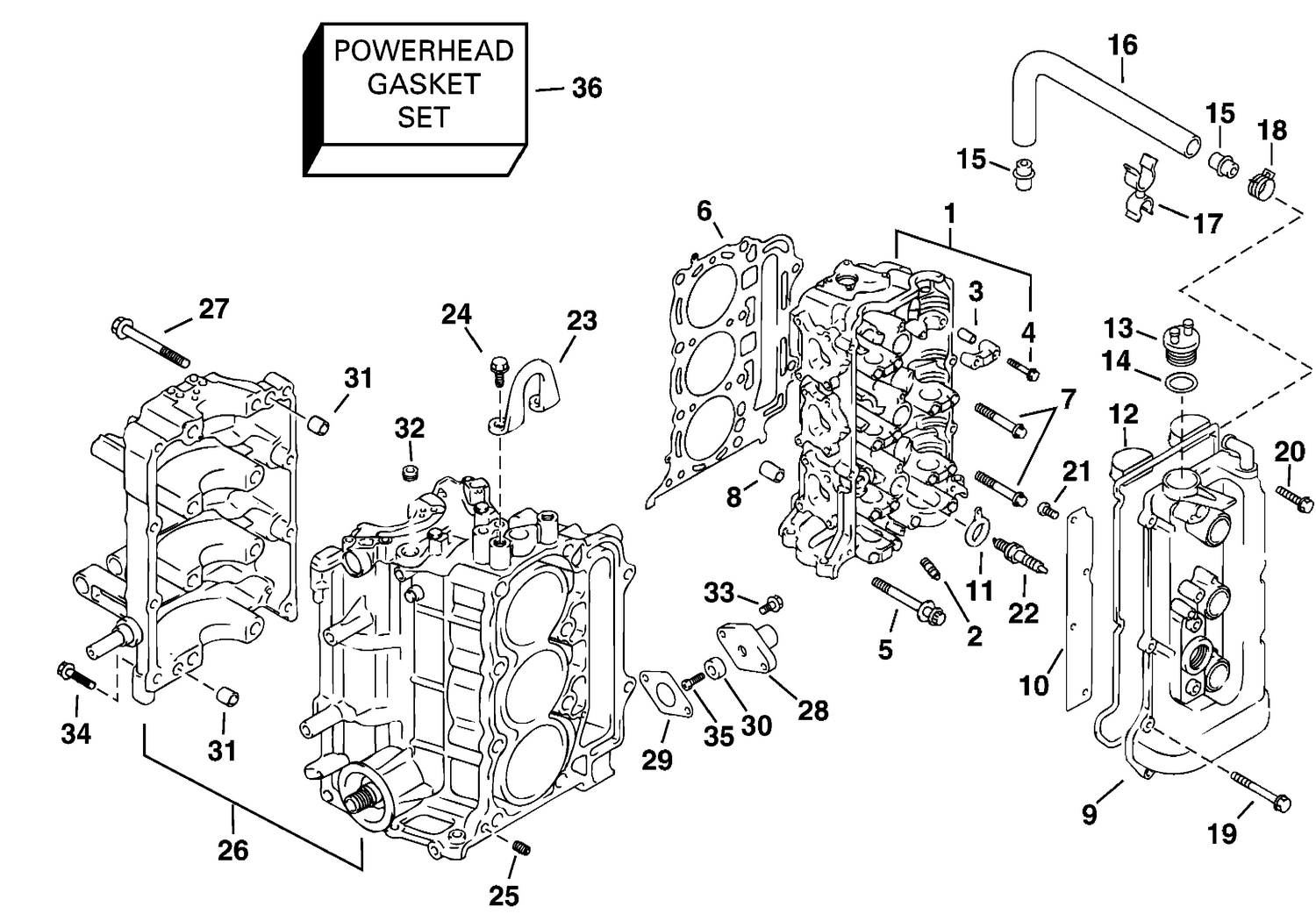

CYLINDER & CRANKCASE
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5031288 | CULASSE |
| 5 | 5031291 | BOLT, Cylinder head |
| 7 | 5031658 | BOLT |
| 8 | 5031014 | PIN |
| 9 | 5031294 | COVER, Cylinder head |
| 10 | 5031295 | BREATHER PLATE |
| 11 | 5031296 | GASKET, Spark plug |
| 13 | 5030633 | CAP, OIL FILLER |
| 14 | 5030541 | O RING |
| 17 | 5031661 | CLAMP |
| 18 | 5030580 | CLAMP |
| 20 | 5031662 | BOLT |
| 22 | 5031287 | PLUG, SPARK (DCPR6E) |
| 23 | 5031300 | HOOK, ENGINE |
| 25 | 5031289 | PLUG, OIL VENTURI |
| 26 | 5031756 | BLOCK, CYLINDER |
