| Ref | Part Number | Description |
|---|
| NS |
0356614 |
HOSE, Back pressure |
| 1 |
5009487 |
EXHAUST ADAPTER |
| 11 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 16 |
5008108 |
PRESSURE RELIEF VALVE ASSEMBLY |
| 29 |
5009387 |
RUBBER MOUNT ASSEMBLY, Upper |
| 30 |
0330929 |
PLATE, Upper mount |
| 33 |
5009486 |
HOSE & TUBE KIT |
| 36 |
0352335 |
COLLIER, 33,1 mm |
| 40 |
0355458 |
SEAL, Exhaust adapter to exhaust pipe |
| 41 |
0356259 |
EXHAUST PIPE |
| 42 |
0356006 |
SEAL |
| 45 |
5010516 |
EXHAUST HOSE KIT |
| 46 |
0351862 |
COLLIER, 42,5 mm |
| 47 |
0360653 |
GROMMET ASSEMBLY, Exhaust Relief |
| 52 |
0349557 |
MOUNT |
| 56 |
0361560 |
SEAL, Exhaust housing to frames |

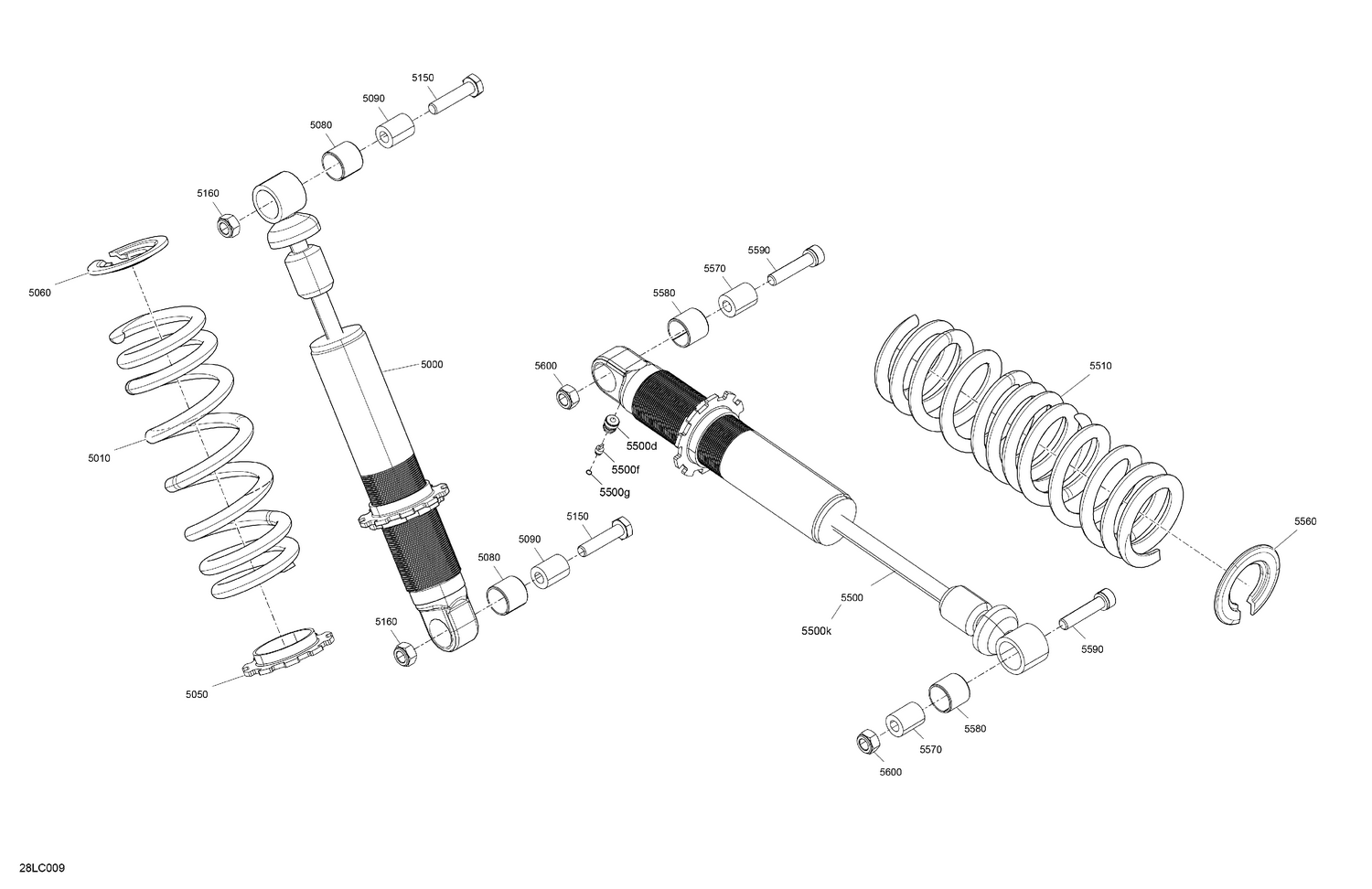

| 5000 |
503196530 |
Shock Absorber |
| 5010 |
503195215 |
Black, Spring |
| 5050 |
503195685 |
Spacer |
| 5060 |
503196528 |
Stopper Spring |
| 5080 |
503195134 |
Glide Bearing |
| 5090 |
5446652 |
Bushing |
| 5150 |
207004544 |
Hex. Screw M10 X 45 |
| 5160 |
232500416 |
Elastic Stop Nut M10 |
| 5500d |
505070398 |
Air Valve |
| 5500f |
505070399 |
Screw |
| 5500g |
505070400 |
O-Ring |
| 5500k |
230060 |
Seal Carrier Ass´y 46 mm. |
| 5510 |
503195209 |
Black, Spring 280 MM-65 N/MM |
| 5560 |
503196528 |
Stopper Spring |
| 5570 |
5446652 |
Bushing |
| 5580 |
503195134 |
Glide Bearing |
| 5590 |
207004544 |
Hex. Screw M10 X 45 |
