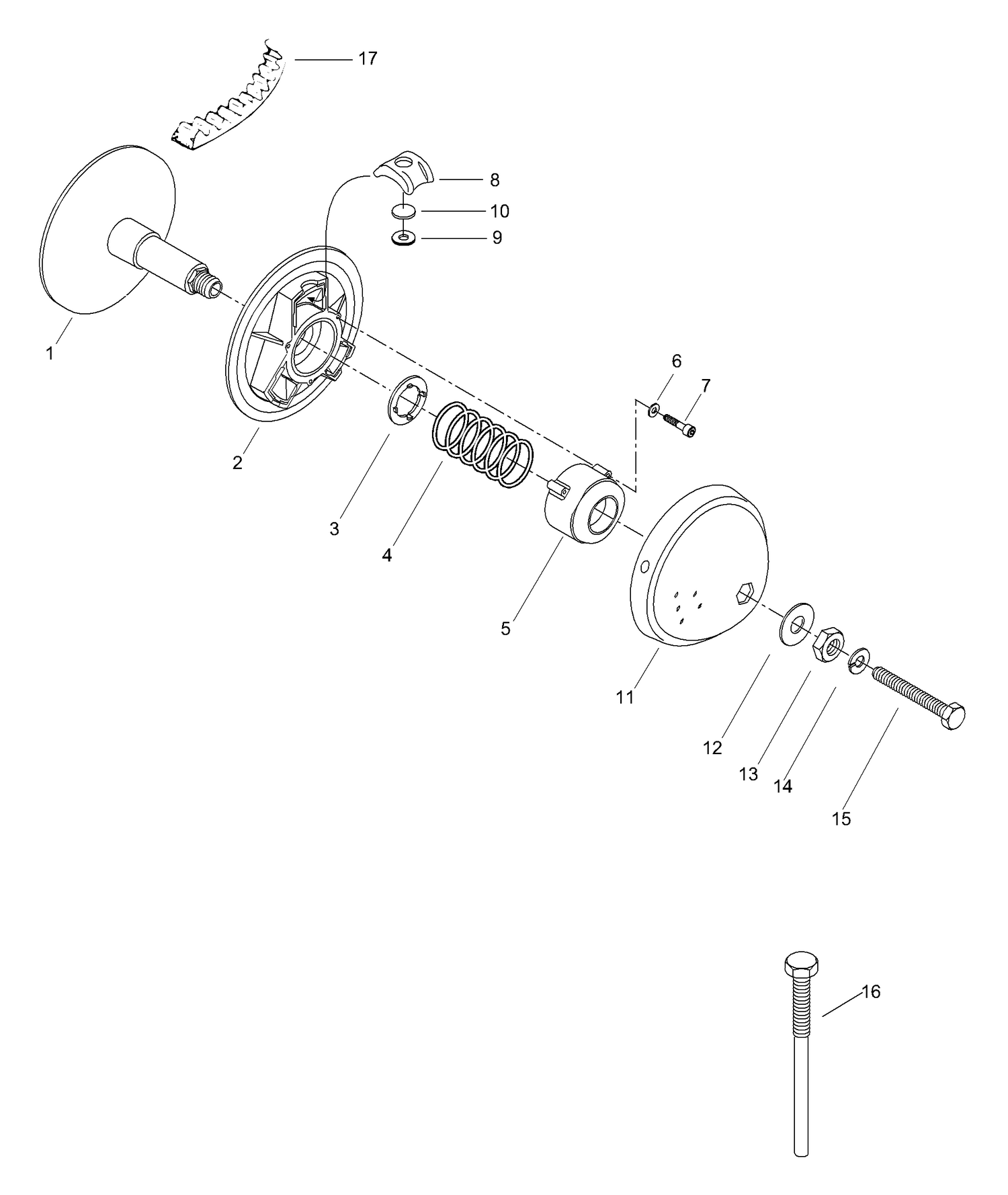

| Ref | Part Number | Description |
|---|
| 1 |
417126619 |
Fixed half pulley |
| 2 |
417126620 |
Sliding half pulley |
| 3 |
417116200 |
Guide washer |
| 4 |
415015400 |
Spring, violet/green |
| 5 |
417121400 |
Spring cover |
| 6 |
420245370 |
WASHER - Call your local BRP dealership |
| 7 |
205064086 |
Screw M6x40 |
| 8 |
417118100 |
CENTRIFUGE BLOCK - Call your local BRP dealership |
| 9 |
05812130 |
Capsule |
| 10 |
417120400 |
ADJUSTMENT WEIGH - Call your local BRP dealership |
| 11 |
417126624 |
Domed cup |
| 12 |
20090 |
Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership |
| 13 |
417118300 |
NUT - Call your local BRP dealership |
| 14 |
20090 |
Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership |
| 15 |
417113800 |
BOLT - Call your local BRP dealership |
| 16 |
529031400 |
Puller inner half |
