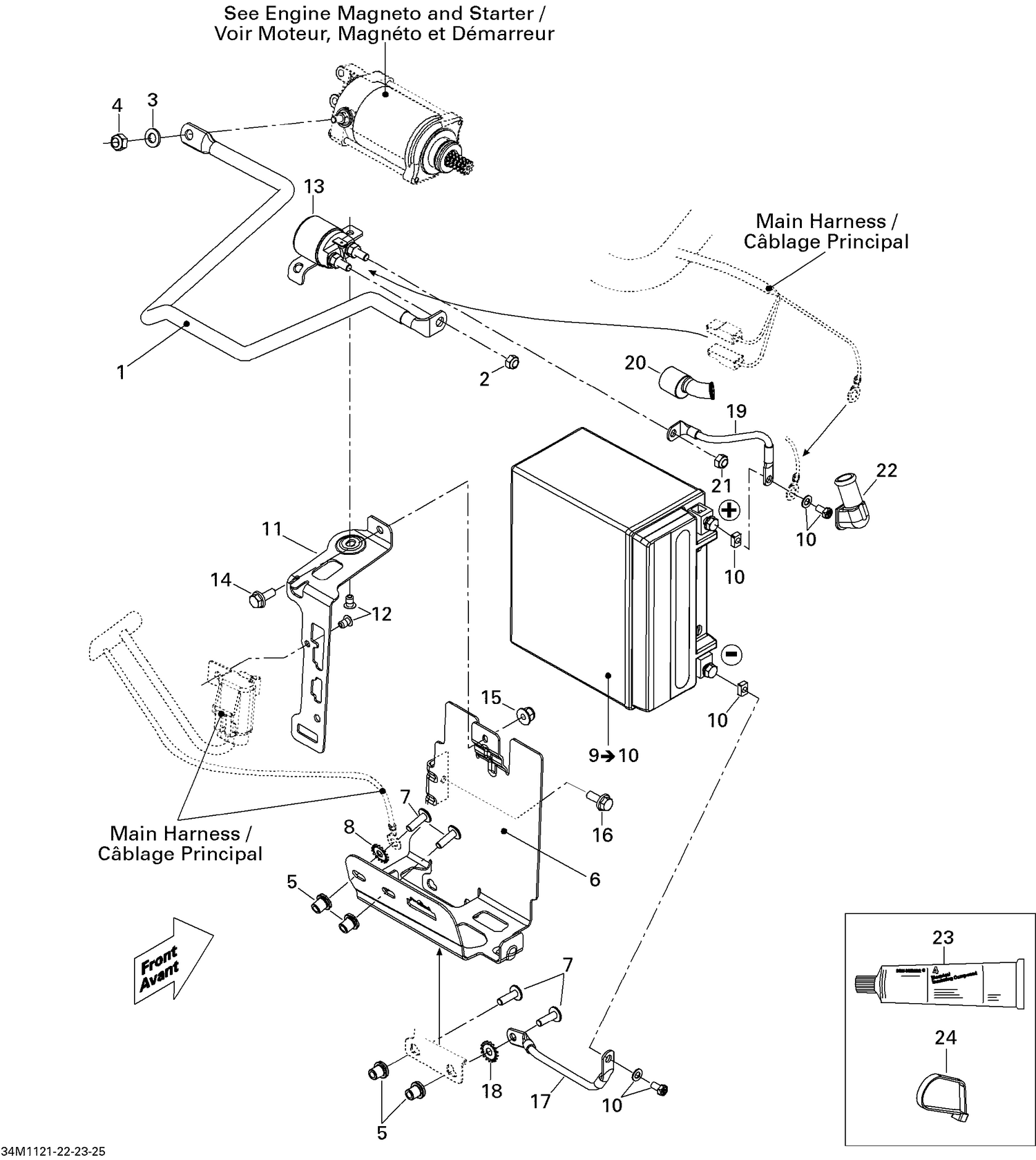

10- Battery And Starter
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176557 | BATTERY WIRE - Call your local BRP dealership |
| 2 | 232561414 | Elastic Stop Nut M6 |
| 3 | 234061410 | Flat Washer 6 mm |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 293450275 | Insert This part replaces 415107300. |
| 6 | 515176970 | BATTERY SUPPORT - Call your local BRP dealership |
| 7 | 250000770 | Hex. Socket Screw M6 X 20 This part replaces 250000335. |
| 8 | 250200041 | Lock Washer Serrated M6 |
| 10 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 11 | 515177008 | BATTERY STRIP - Call your local BRP dealership |
| 12 | 390402200 | Pop Rivet 3/16" |
| 13 | 515176501 | Starter Relay |
| 14 | 207661644 | Hex. Flange Screw M6 X 16 |
| 15 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 210262040 | Hex. Flange Screw M6 X 20 |
| 17 | 515175749 | Ground Wire |
| 18 | 250200041 | Lock Washer Serrated M6 |
| 19 | 515176556 | BATTERY WIRE - Call your local BRP dealership |
| 20 | 515175919 | Protector Cap |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 22 | 710000495 | Protector Cap |
| 23 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 24 | 293750001 | Tie Wrap 94 mm |
| 24 | 293750002 | Tie Wrap 142 mm |
| 24 | 293750027 | Tie-Rap 206 mm |
| 24 | 414115200 | Tie-Rap 180 mm |
