Home / BRP / STERN DRIVE / 1995 / 4.30 / 43APHUB 1995 / EXHAUST & COOLING

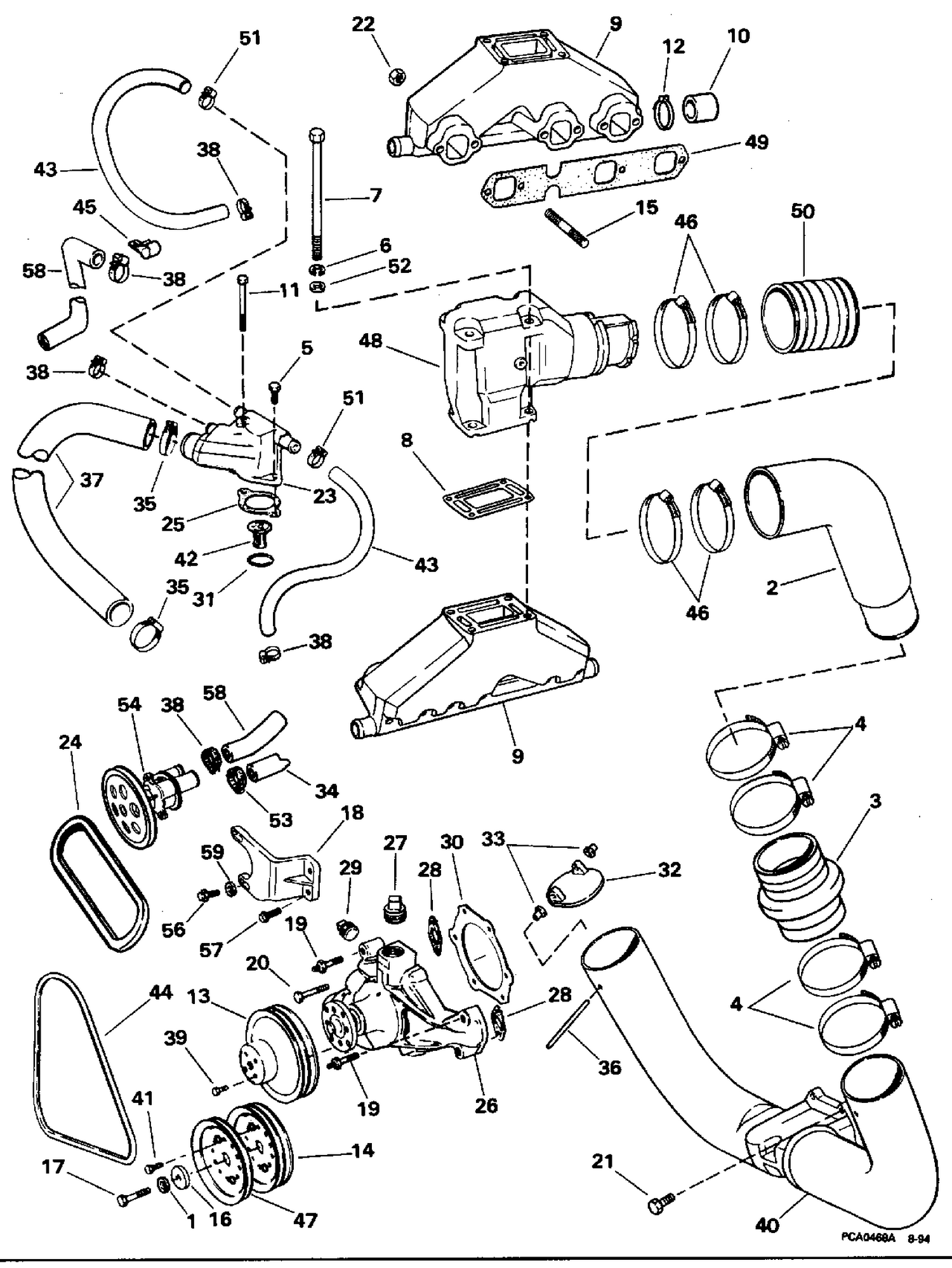

EXHAUST & COOLING

EXHAUST & COOLING

Parts (55)

RefPart NumberDescription
1 0303269 L'WASHER, Upper This part replaces 3852046.
2 3854874 EXHAUST PIPE, Upper
3 3852741 HOSE, Exhaust
4 3852604 CLAMP, Exhaust
5 3853401 SCREW, Housing to manifold
6 0120177 L'WASHER, Alternator to brkt This part replaces 3852002.
7 3852830 HUB,Water pump pulley
8 3850496 GASKET, Elbow
9 3857656 EXHAUST MANIFOLD This part replaces 3852338.
10 3852476 CAP, Manifold
11 3853430 SCREW, Manifold, 5 1/4 in. This part replaces 3853391.
12 0912627 CLAMP This part replaces 3852602.
13 0384104 PULLEY ASSEMBLY This part replaces 3852220.
14 3852137 PULLEY, Crankshaft
15 3852467 STUD, Manifold to engine
16 3852110 WASHER, Harmonic balancer
17 0314953 BOLT This part replaces 3852131.
18 3852284 BRACKET, Water pump
19 3852507 STUD, Bracket to water pump
20 3854653 BOLT, Intake manifold, short This part replaces 3853539.
21 3855472 SCREW, Pipe to gimbal This part replaces 3852898.
22 3853404 NUT, Exhaust manifold
23 3850360 HOUSING, Thermostat
24 3852336 BELT, Alternator
25 0312797 GASKET, Therm. hsg. to adapter This part replaces 3852111.
26 3853850 WATER PUMP ASSY.
27 0909601 PLUG, Manifold This part replaces 3850802.
28 3852477 GASKET, Pump to block
29 0315713 PIPE PLUG, High rise This part replaces 3852135.
30 3850595 GASKET, Water pump cover
32 3853864 EXHAUST SEAL ASSY
33 3853566 BUSHING, Pin
34 3852282 HOSE, Cooler to pump
36 0913663 PIN EXHAUST FLAP This part replaces 3852753.
37 3852288 HOSE, Water pump to thermostat
38 0912627 CLAMP This part replaces 3852602.
39 3853390 SCREW, Pulley to pump
40 3858873 Kit This part replaces 3850794.
41 3853418 SCREW, Crankshaft pulley
42 0383307 TERMOSTAT ASSEMBLY This part replaces 3852216.
43 3852746 HOSE, Thermostat hsg. to manifold
44 3852504 BELT, Alternator
45 0910201 COLLIER, solénoïde amorçage This part replaces 3852490.
46 3853860 CLAMP, Exhaust hose, upper
47 3852505 PULLEY, Crankshaft
48 3857944 ELBOW, Exhaust This part replaces 3855270.
49 3853412 GASKET, Manifold to engine
50 3852696 HOSE, High rise to elbow
51 3853780 CLAMP, Hose
53 3850422 CLAMP, Water hose inlet
54 3858847 Water Pump Ay This part replaces 3851623.
55 3852505 PULLEY, Crankshaft
56 3853397 SCREW, Bracket to engine
57 3853326 SCREW, Bracket to engine
58 3852283 HOSE, Pump to thermostat
