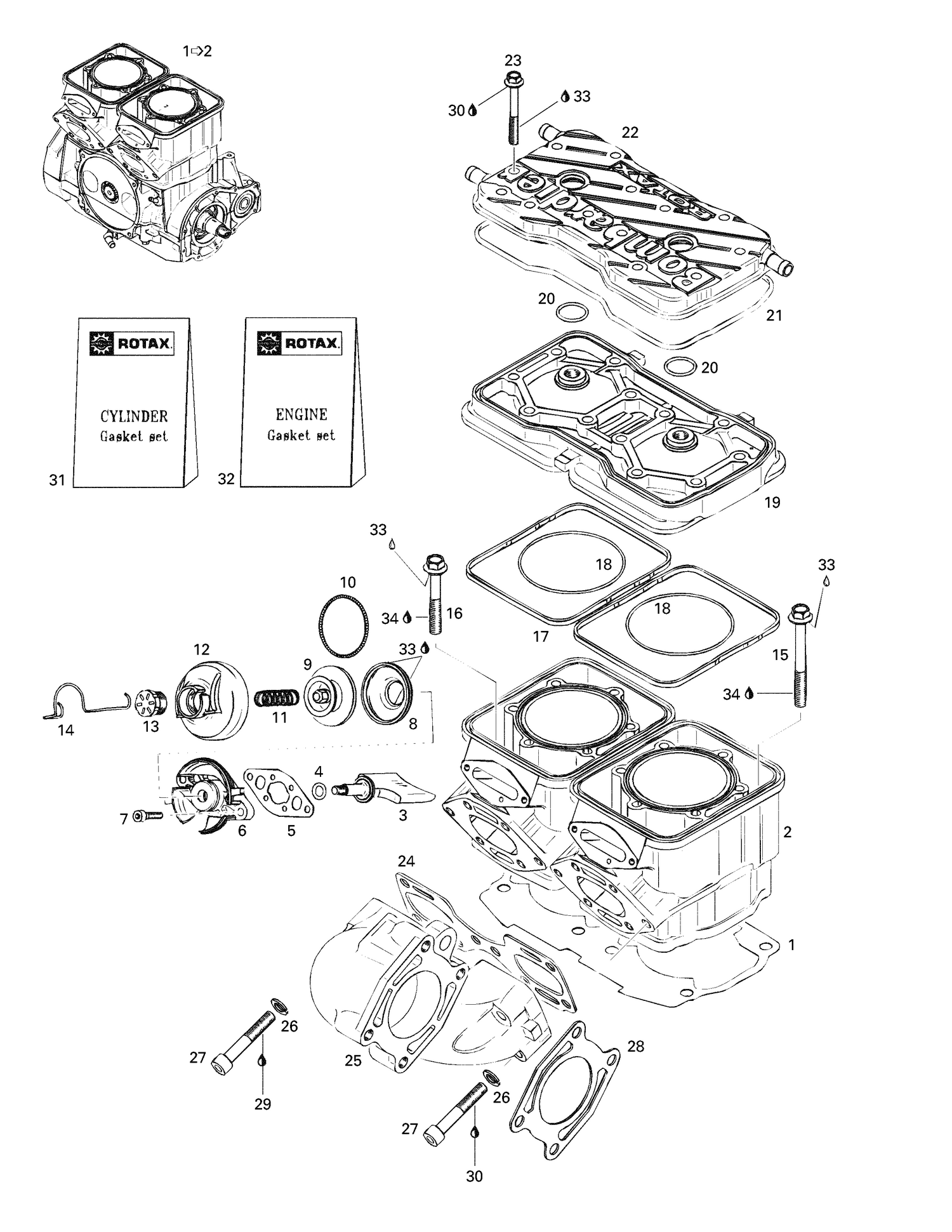

| Ref | Part Number | Description |
|---|
| 1 |
290931460 |
Gasket Cylinder 0.3 mm |
| 2 |
290923500 |
CYLINDER WITH SLEEVE (WHITE) - Call your local BRP dealership |
| 3 |
420854358 |
Exhaust Valve This part replaces 290854358. |
| 4 |
420430110 |
O-Ring This part replaces 290430110. |
| 5 |
420931540 |
Joint Etanche *Gasket This part replaces 290931540. |
| 6 |
290854362 |
Valve Housing |
| 7 |
205062560 |
Socket Head Screw M6 X 25 This part replaces 210100012. |
| 8 |
420260723 |
Exhaust Bellows This part replaces 290260728. |
| 9 |
420854449 |
Exhaust Valve This part replaces 290253257. |
| 10 |
420939281 |
Hose Spring This part replaces 290239043. |
| 11 |
290939136 |
Compression Spring (Sea Level) |
| 12 |
420911559 |
Valve Cover This part replaces 290911555. |
| 13 |
420241221 |
Adjuster Screw This part replaces 290241220. |
| 14 |
420838083 |
SPRING CLIP - Call your local BRP dealership This part replaces 420838082. |
| 15 |
290941333 |
Flange Screw M10 x 73,5 |
| 16 |
290941903 |
Hex. Flange Screw M10 x 105 |
| 17 |
290931420 |
RUBBER RING - Call your local BRP dealership |
| 18 |
420931410 |
O-Ring This part replaces 290931410. |
| 19 |
420923308 |
HEAD CYLINDER - Call your local BRP dealership This part replaces 290923301. |
| 20 |
420430782 |
O-Ring This part replaces 290430782. |
| 21 |
290831550 |
O-RING - Call your local BRP dealership |
| 22 |
290923311 |
Cylinder Head Cover (White) |
| 23 |
290841998 |
Hex. Flange Screw M8 x 68.5 |
| 24 |
420931481 |
Gasket This part replaces 290931480. |
| 25 |
290979481 |
Exhaust Manifold |
| 26 |
234101601 |
Helicoidal Lock Washer M10 This part replaces 213000003. |
| 27 |
215906060 |
Allen Screw M10 x 60 |
| 28 |
290931500 |
Gasket |
| 30 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 31 |
290886395 |
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership |
| 32 |
290886390 |
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership |
| 33 |
413707000 |
Dow Corning 111, 150 g |
| 290931461 |
Gasket |
Cylinder 0.4 mm 290931461 |
| 290931462 |
Gasket |
Cylinder 0.5 mm 290931462 |
| 290931463 |
GASKET |
CYLINDER 0.6 MM - Call your local BRP dealership 290931463 |
| 290931464 |
Gasket |
Cylinder 0.8 mm 290931464 |
