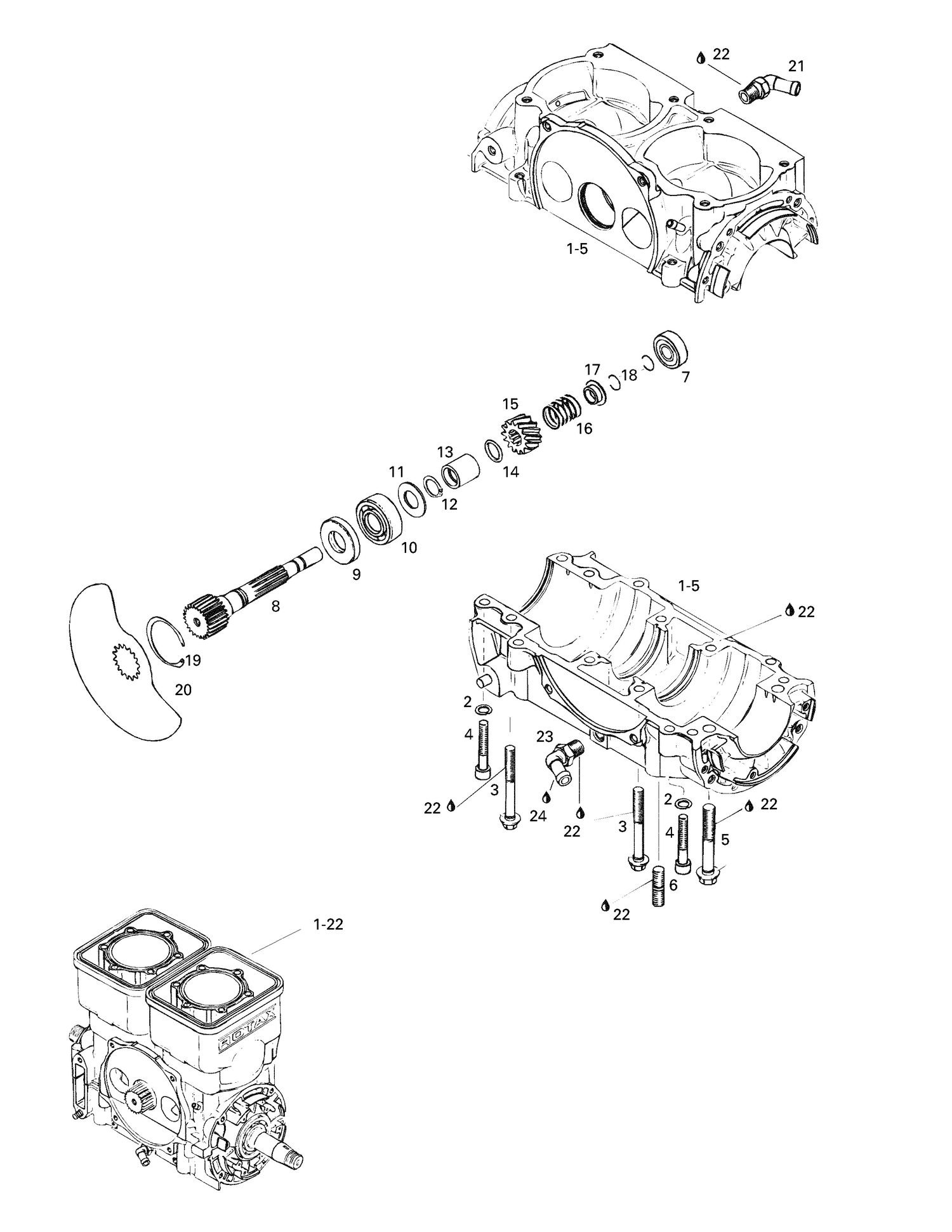

| Ref | Part Number | Description |
|---|
| 2 |
234180602 |
Lock Spring Washer 8 mm, Stainless This part replaces 217383600. |
| 3 |
290841998 |
Hex. Flange Screw M8 x 68.5 |
| 4 |
205084560 |
Socket Head Screw M8 X 45 This part replaces 290841563. |
| 5 |
290941333 |
Flange Screw M10 x 73,5 |
| 6 |
290940798 |
STUD M10 X 25, PTO - Call your local BRP dealership |
| 7 |
420932797 |
Ball Bearing This part replaces 290932797. |
| 8 |
290837251 |
ROTARY VALVE SHAFT - Call your local BRP dealership |
| 9 |
290930580 |
OIL SEAL - Call your local BRP dealership |
| 10 |
293350051 |
BALL BEARING - Call your local BRP dealership This part replaces 290932032. |
| 11 |
290227439 |
Shim |
| 12 |
420845450 |
SNAP RING - Call your local BRP dealership This part replaces 290845450. |
| 13 |
290847282 |
Distance Sleeve |
| 14 |
293300024 |
O-Ring |
| 15 |
420935736 |
Sprocket 14Th This part replaces 290935735. |
| 16 |
290938810 |
Spring |
| 17 |
290827430 |
Spring Seat |
| 18 |
290845160 |
Circlip |
| 19 |
420945880 |
Lock Ring This part replaces 290845260. |
| 20 |
420924502 |
ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502. |
| 21 |
420922242 |
Angular Tube This part replaces 290922245. |
| 23 |
293700016 |
Elbow Fitting |
| 24 |
219704454 |
Was 293800013 Loctite 56765 |
