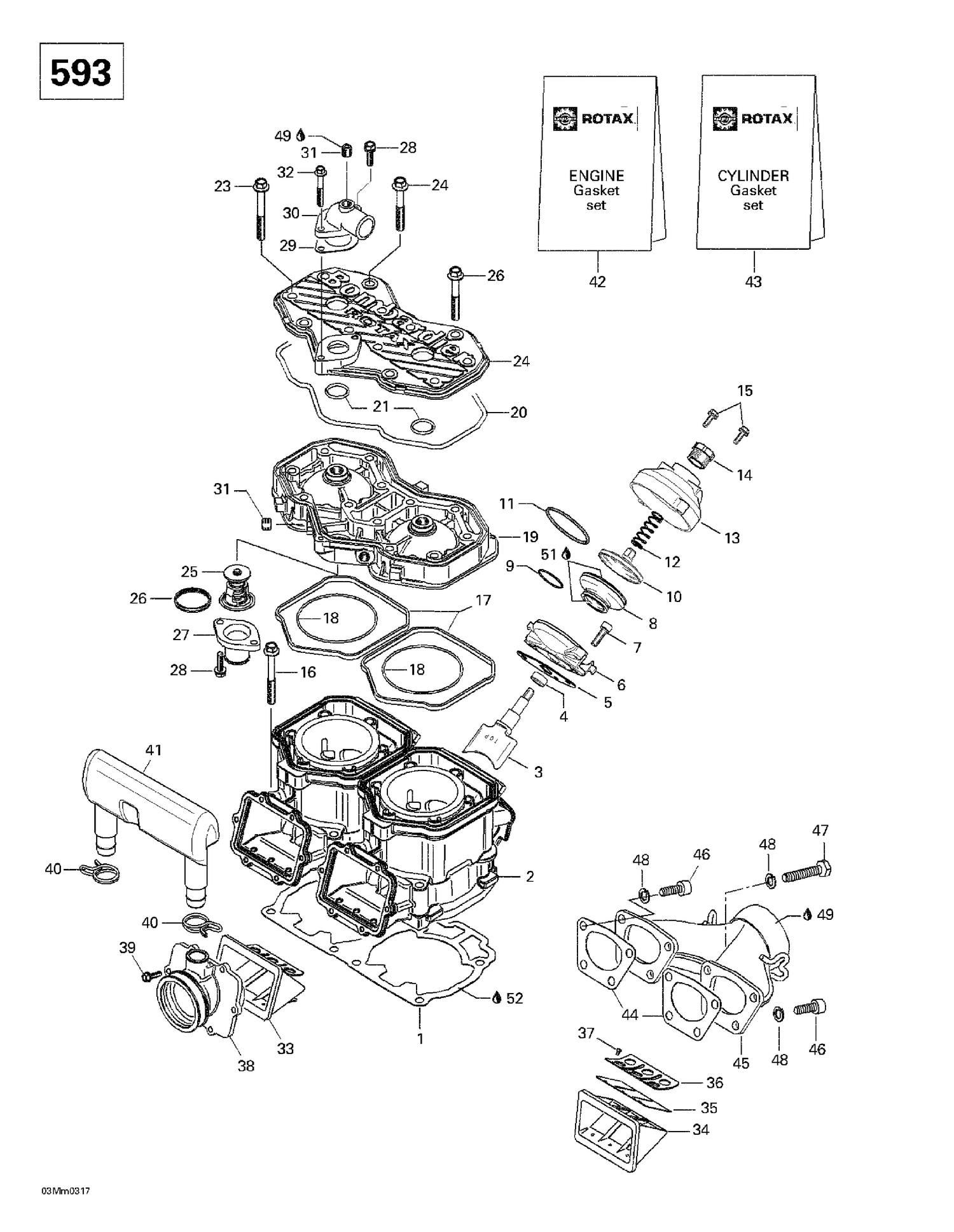

01- Cylinder, Exhaust Manifold

01- Cylinder, Exhaust Manifold

Parts (54)

RefPart NumberDescription
1 420431423 Gasket 0.8 mm This part replaces 420931584.
2 420613628 Cylinder With Sleeve This part replaces 420613620.
3 420854371 Exhaust Valve This part replaces 420854370.
4 420950732 Oil Seal This part replaces 420950730.
5 420250239 Gasket
6 420854266 Valve Housing
7 205062044 Socket Head Screw M6 X 20
8 420260723 Exhaust Bellows This part replaces 290260723.
9 420838255 Hose Spring This part replaces 420838253.
10 420854449 Exhaust Valve
11 420939281 Hose Spring This part replaces 290239048.
12 420239948 SPRING - Call your local BRP dealership
13 420911552 Valve Cover
14 420241221 Adjuster Screw
15 420841555 Hex. Tapping Screw M5 X 20
16 420841951 Hex. Screw M8 X 68.5
17 420931590 Rubber Ring
18 293300026 O-Ring
19 420923459 CYLINDER HEAD - Call your local BRP dealership This part replaces 420923452.
20 420950320 O-Ring This part replaces 290950320.
21 420430782 O-Ring
22 420923465 CYLINDER HEAD COVER - Call your local BRP dealership This part replaces 420923460.
23 420841307 Hex. Collar Screw M8 X 65 This part replaces 420841306.
24 420941627 Hex. Screw M8 X 56.5 This part replaces 420941621.
25 420922519 Thermostat This part replaces 420922517.
26 420931272 Sealing Ring
27 420922025 BENT OUTLET SOCKET - Call your local BRP dealership
28 420941251 SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
29 420850339 Gasket This part replaces 420850338.
30 420922062 BENT OUTLET SOCKET - Call your local BRP dealership
31 420240480 PLUG SCREW - Call your local BRP dealership
32 420941451 HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership
34 Not Available As Spare Part - Reed Valve Housing
35 420924532 Reed Pedal
36 420924539 Reed Pedal Stop
37 420941215 Phillips Screw M3 X 5
38 420867860 CARBURETOR SOCKET - Call your local BRP dealership
39 420941928 Taptite Screw M5 X 16 This part replaces 420941925.
40 420851440 CLAMP - Call your local BRP dealership
41 420867815 Intake Resonator
42 420893070 Gasket Set, Engine This part replaces 420888584.
43 420893075 Gasket Set, Cylinder This part replaces 420888588.
44 420931610 Gasket
45 5245177 Branch-Y This part replaces 420979633.
46 M40135 Socket Head Screw M8 X 30
47 207182044 Hex. Screw M8 X 20
48 234181401 Lock Washer 8 mm
49 293800090 Sealant, Loctite, 80 ml
50 293800060 Loctite 243, 10 ml
51 413707000 Dow Corning 111, 150 g
420431420 Joint De 0.5 mm This part replaces 420931583. 420431420
420431421 Joint De 0.6 mm This part replaces 420931582. 420431421
420431422 Joint De 0.7 mm This part replaces 420931962. 420431422
420931581 Joint De 0.4 mm - Appelez votre concessionnaire BRP local 420931581
