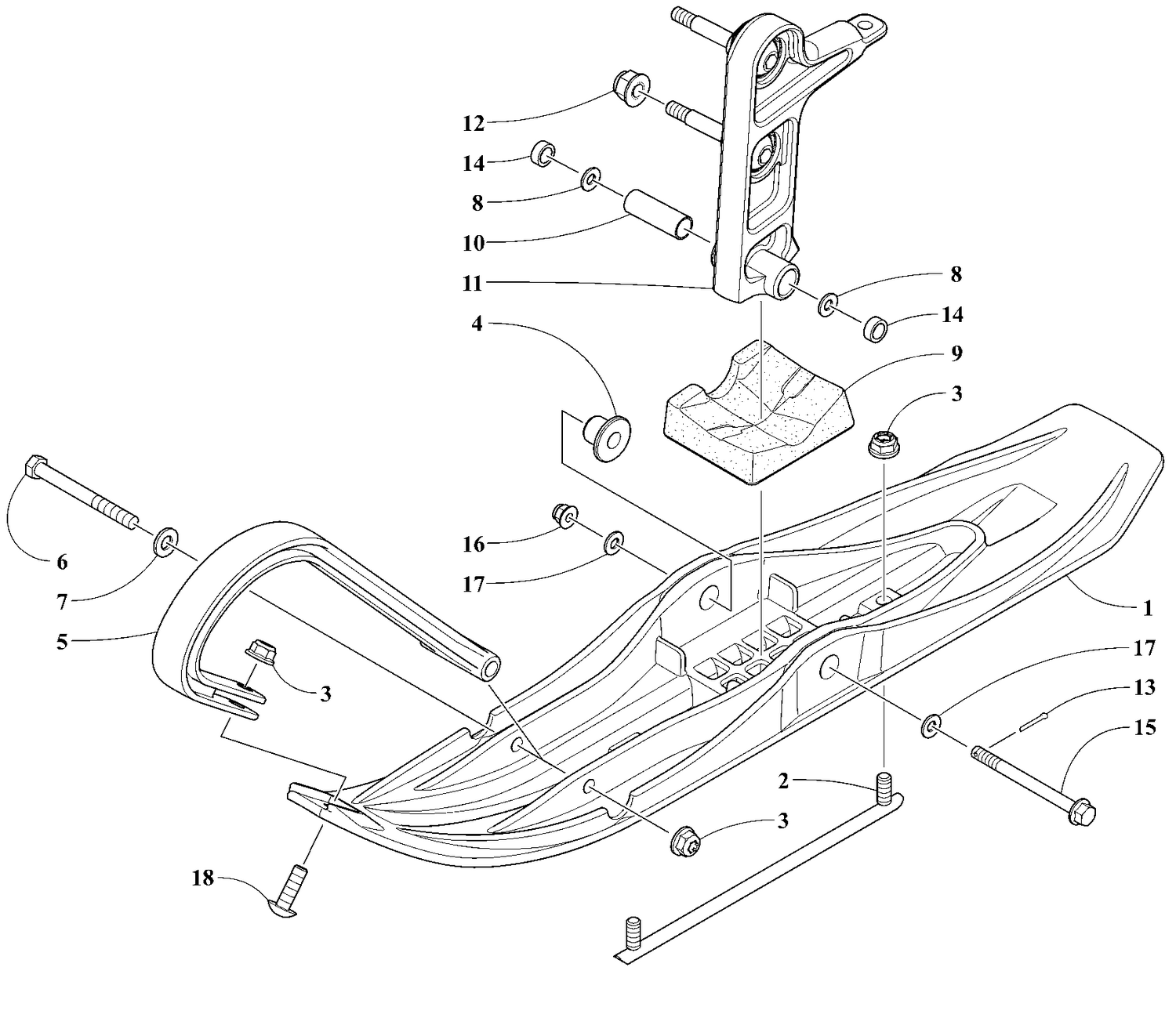

Front Suspension Ski
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3603-614 | Black, Ski Plastic |
| 2 | 3703-804 | Carbide |
| 3 | 8047-426 | Elastic Stop Nut 1/4-20 |
| 4 | 2603-746 | Insert |
| 5 | 3603-797 | Yellow Handle |
| 6 | 8002-141 | Screw HH 5/16 X3 |
| 7 | 8050-247 | Flat Washer |
| 8 | 0645-752 | Thrust Washer |
| 9 | 3603-340 | RH Ski Damper |
| 9 | 3603-341 | LH Ski Damper |
| 10 | 0403-437 | Collar |
| 11 | 3703-960 | RH Spindle |
| 11 | 3703-961 | LH Spindle |
| 12 | 8427-805 | Black, Hex Lock Nut M8X1.25 |
| 13 | 0123-458 | Cotter Pin |
| 14 | 3603-620 | Spacer |
| 15 | 1623-781 | Screw M10 X 137 |
| 16 | 0423-744 | Hex Lock Nut M10X1.25 |
| 17 | 1623-801 | Flat Washer |
