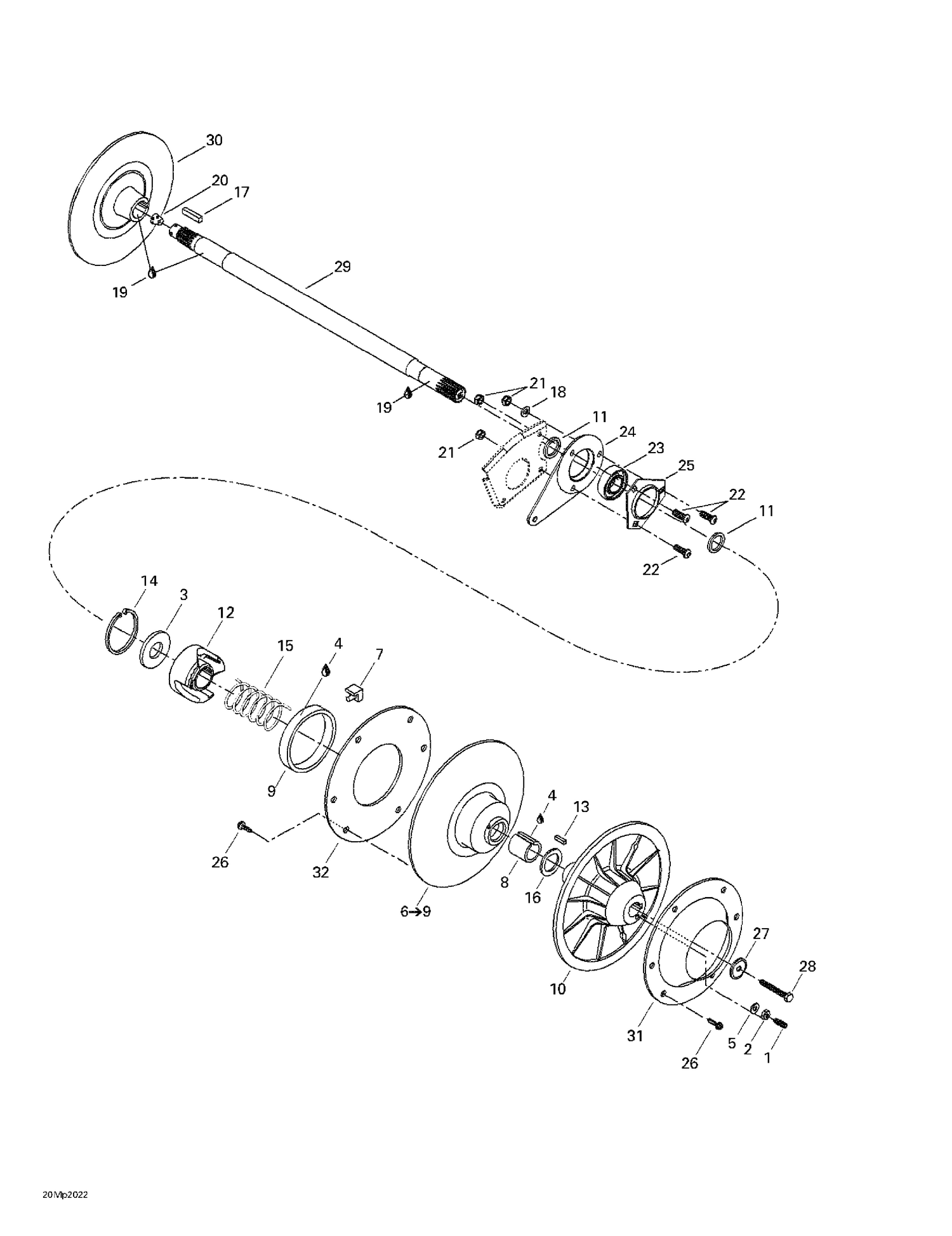

| Ref | Part Number | Description |
|---|
| 1 |
206263044 |
Socket Set Screw M6 X 30 |
| 2 |
232061414 |
Hex. Nut M6 |
| 3 |
504141800 |
Washer |
| 4 |
413703100 |
Loctite 609, 10 ml |
| 5 |
420245370 |
WASHER - Call your local BRP dealership |
| 6 |
504143400 |
Sliding Pulley |
| 7 |
414918000 |
CAM SLIDER SHOE - Call your local BRP dealership |
| 8 |
415011200 |
BUSHING - Call your local BRP dealership |
| 9 |
414876600 |
GARLOCK BUSHING - Call your local BRP dealership |
| 10 |
417010200 |
Fixed Flange |
| 11 |
504149100 |
Spacer |
| 12 |
417126380 |
Cam |
| 13 |
414820800 |
Key |
| 14 |
371903100 |
CIRCLIP - Call your local BRP dealership |
| 15 |
414558900 |
RELEASE SPRING, BEIGE - Call your local BRP dealership |
| 16 |
504141900 |
Thrust Washer |
| 17 |
507021300 |
KEY - Call your local BRP dealership |
| 18 |
234081410 |
Flat Washer 8 mm |
| 19 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 20 |
414784800 |
CORK - Call your local BRP dealership |
| 21 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 22 |
205482546 |
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership |
| 23 |
405408200 |
BALL BEARING - Call your local BRP dealership |
| 24 |
080044200 |
Spacer (Casting) |
| 25 |
501025000 |
FLANGE - Call your local BRP dealership |
| 26 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 27 |
517302322 |
Strength Washer |
| 28 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 29 |
501026300 |
COUNTER SHAFT - Call your local BRP dealership |
| 30 |
507031300 |
BRAKE DISK - Call your local BRP dealership |
| 31 |
504142000 |
CUP - Call your local BRP dealership |
