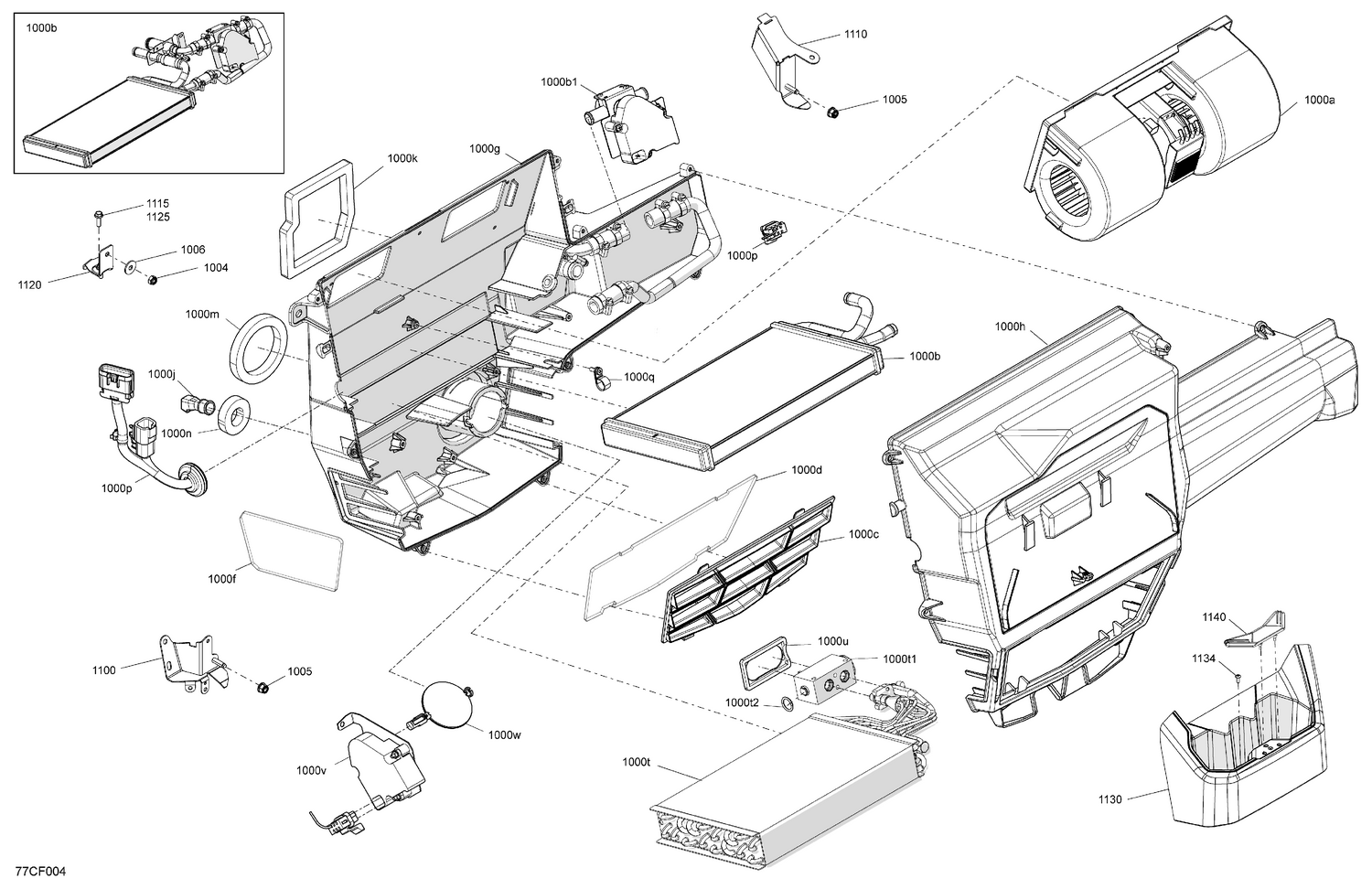

07- Enclosure Cab - Air Conditioning Unit
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1000a | 520001536 | Fan |
| 1000b1 | 705800486 | Valve Ass'y |
| 1000c | 705800453 | Grille Unit |
| 1000d | 705800440 | Air Filter |
| 1000f | 705800430 | Air Filter |
| 1000g | 705800383 | Front Cover |
| 1000h | 705800384 | Rear Cover |
| 1000j | 705800809 | Drain Valve |
| 1000k | 705800494 | Self Adhesive Weather Strip |
| 1000m | 705800495 | Self Adhesive Weather Strip |
| 1000n | 705800496 | Self Adhesive Weather Strip |
| 1000p | 705800457 | Air Conditioning Wiring Harness |
| 1000q | 715900670 | Mounting Clip |
| 1000t1 | 705800980 | Expansion Valve |
| 1000t2 | 715900687 | O-Ring |
| 1000u | 705800519 | Gasket |
| 1000v | 705800490 | Actuator Ass'y |
| 1000w | 705800488 | Door Vent |
| 1004 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1005 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1006 | 234082410 | Flat Washer 8 mm |
| 1100 | 705801110 | LH Upper Console Support |
| 1110 | 705801112 | RH Upper Console Support |
| 1115 | 207662044 | Hex. Flange Screw M6 X 20 |
| 1120 | 705801148 | Lower Console Support |
| 1125 | 207662044 | Hex. Flange Screw M6 X 20 |
| 1130 | 705800452 | Cup Holder |
| 1134 | 250000577 | Torx Truss Screw K40 X 12 |
