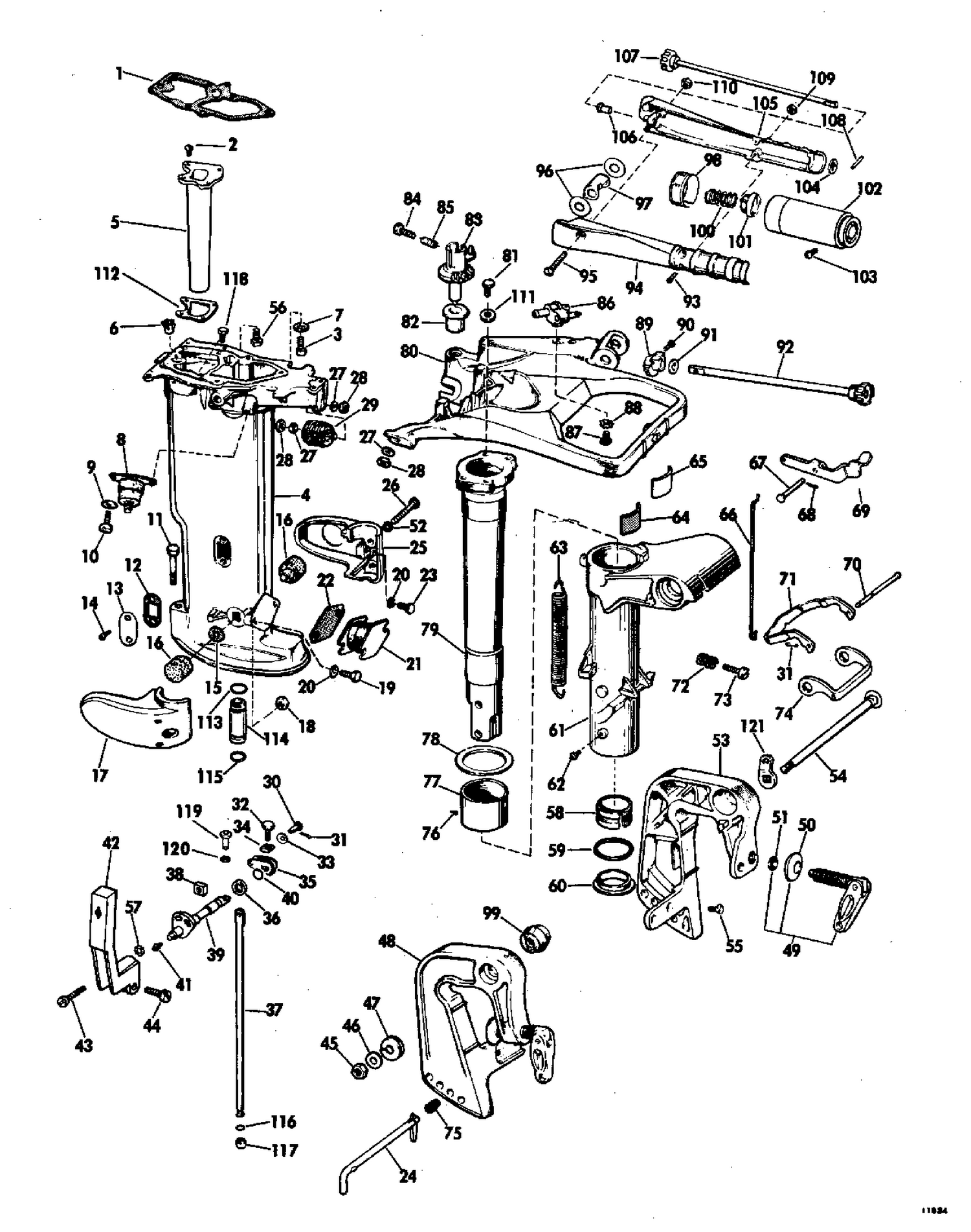

EXHAUST HOUSING

EXHAUST HOUSING

Parts (100)

RefPart NumberDescription
1 0314421 GASKET, Baffle
2 0305756 SCREW, Clamp to motor
3 0314360 SCREW
4 0383913 EXHAUST HOUSEING ASSY.
5 0313564 EXHAUST TUBE, Inner
6 0313435 RESTRICTOR, Exhaust housing
8 0303879 MOUNT Rubber, upper side, std. only
9 0303887 WASHEER, Pin to swivel bracket
12 0304023 GASKET, Cover plate
13 0303862 COVER PLATE, Extension LONG SHAFT MODELS
14 0303587 SCRES,Cover plate
15 0304168 GASKET, Mount, lower side
16 0316478 RUBBER MOUNT, Lower side
17 0323109 HOUISING,Lower mount,stbd. This part replaces 0316438.
18 0303890 ACORN NUT, Lower side mount
20 0303886 LOCKWASHER
21 0321469 MOUNT, Rubber, lower front This part replaces 0303881.
22 0304169 GASKET, Lower front mount
23 0309942 SCREW, Anchor bracket
24 0387524 ROD, Thrust and retainer This part replaces 0378158.
25 0323108 HOUSING, Lower mount port This part replaces 0316437.
26 0342540 SCREW, Exhaust housing to ext. This part replaces 0316440.
27 0303884 RONDELLE
29 0304800 MOUNT, Rubber, upper front
30 0304377 PIN, Shaft rod to lever
32 0308017 SCREW, Bellcrank to shift lever
33 0304380 RONDELLE ÉLASTIQUE
34 0303721 CLIP, Shift rod
35 0304378 LEVER, Shift rod
36 0303775 WAHSER, Lever to hsg
37 0304859 ROD, Shaft, upper
38 0303189 NUT
39 0379523 ADJ. LEVER & SHAFT ASSY
42 0384477 SHIFT LEVER & PIN
43 0132679 SCREW, Handle adjustment
44 0323099 SCREW, Bumper This part replaces 0301989.
45 0315477 NUT, Tilting shaft bolt
46 0306433 WASHER
47 0302051 SPRING Tilting bolt
48 0383949 STERN BRKT, Assy, stbd
49 0433675 CLAMP SCR. & HAND. ASSY. This part replaces 0377311.
52 0304144 LOCK WASHER
53 0383948 STERN BBRKT., ASSY., Port (Incl. items 49, 5 0, 51)
54 0319756 BOLT, Tilting shaft This part replaces 0301984.
55 0901889 SCREW This part replaces 0303396.
56 0553556 SCREW, Housing to cylinder
58 0309967 BUSHING, Pilot shaft, lower
59 0305270 O RING
60 0309966 THRUST WASHER, Lower swivel bracket
61 0383912 BRACKET, Swivel
63 0303979 SPRING, Reverse lock
64 0303843 SPACER, Co-pilot plate
65 0303844 PLATE, Co-pilot
66 0303978 LINK, Reverse lock arm to shaft
67 0303930 PIN, Cotter, pivot shaft
69 0303980 ARM, Manual locking lever
70 0303949 ROD, Reverse lock
71 0329962 LEVER, Reverse lock This part replaces 0303948.
73 0323099 SCREW, Bumper This part replaces 0301989.
74 0303950 LINK, Reverse lock
75 0323471 SPRING, Thrust rod This part replaces 0307653.
76 0303696 PIN
77 0303846 LINER, Swivel brkt, upper
78 0303842 WASHER, Thrust
79 0315632 SHAFT, Pilot, steering brkt
80 0316358 BRACKET, Steering
81 0313332 SCERW, Adj. bracket
82 0303854 BUSHI:NG, Throttle control
83 0384864 GEAR, Throttle control
84 0304573 SCR., Idle adj.
85 0552368 SPRING, Idle adj. screw
86 0393334 CONNECTEUR, carburant - mâle This part replaces 0376154.
87 0306419 SCREW
89 0303142 PINION, Control throttle
90 0303951 SCREW, PIN TO SHAFT
91 0305347 BUSHING, Throttle shaft
92 0377631 GEAR & SHAFT, Short
93 0133452 SCREW
94 0318213 HANDLE, Inner half This part replaces 0312858.
95 0330976 SCREW, Handle halves This part replaces 0303078.
96 0303079 WASHER
97 0311354 COVER, Handle gears
98 0303110 PLATE, Throttle control
99 0301983 CONICAK WASHER,Stern brkt
100 0301656 SPRING
101 0303282 BLOCK
102 0386266 GRIP & PLATE This part replaces 0204188.
104 0303252 WAHSER, Grip spring
105 0318214 HANDLE, Outer half This part replaces 0315939.
106 0325074 BUSHING This part replaces 0305100.
107 0377943 GEAR & SHAFT, Long
110 0306397 NUT
112 0313565 GASKET, Inner hgs.
113 0301967 O RING
114 0324453 SPACER This part replaces 0313519.
116 0301877 O RING SHIFT ROD
117 0313523 RETAINER . SHIFT ROD
118 0314490 SCREW, Exhaust housing
119 0311489 BUSHING
120 0308776 O-RING
