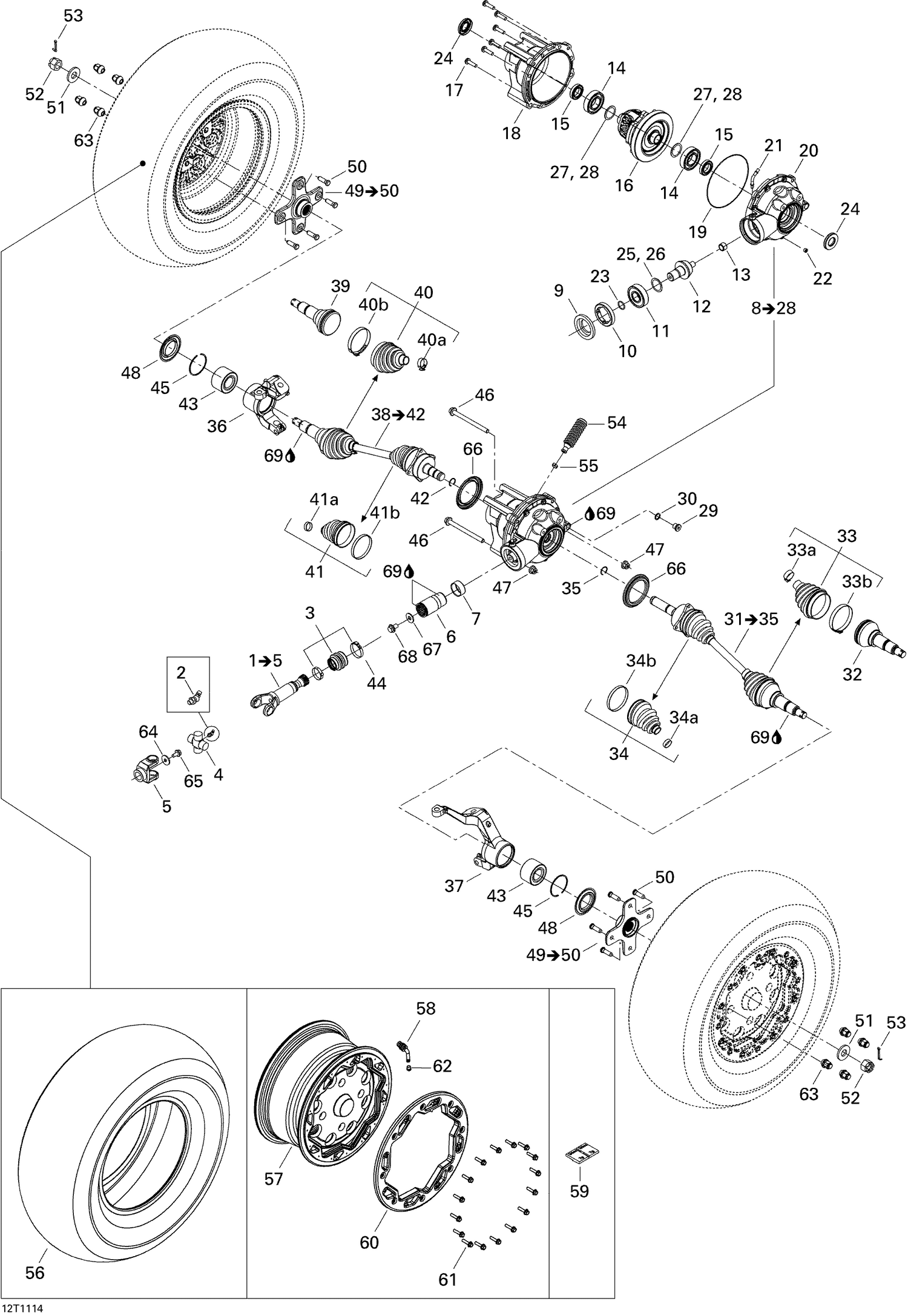

| Ref | Part Number | Description |
|---|
| 2 |
715900067 |
GREASE FITTING - Call your local BRP dealership |
| 3 |
703500255 |
Rubber Boot Kit |
| 4 |
715900325 |
Ens. Croix*U-Joint Cross Kit This part replaces 703000024. |
| 5 |
705400391 |
YOKE, FIXED JOINT - Call your local BRP dealership |
| 6 |
703500678 |
Front Bushing Shaft Kit This part replaces 705400149. |
| 7 |
705400036 |
Wear Ring |
| 9 |
705401481 |
Oil Seal This part replaces 705400027. |
| 10 |
705401603 |
Nut This part replaces 705400661. |
| 11 |
705500260 |
Ball Bearing |
| 12 |
705501588 |
Engrenage 10 Dents - Appelez votre concessionnaire BRP local This part replaces 705501051. |
| 13 |
705500261 |
Needle Bearing |
| 14 |
705401606 |
Ball Bearing This part replaces 705500259. |
| 15 |
293350044 |
Ball Bearing |
| 16 |
703500872 |
DIFFERENTIAL KIT - Call your local BRP dealership This part replaces 705400822. |
| 17 |
705401601 |
Screw This part replaces 705500892. |
| 18 |
705400762 |
FRONT COVER - Call your local BRP dealership This part replaces 705400297. |
| 19 |
705500265 |
Seal |
| 20 |
705400646 |
Front Cover |
| 21 |
705500893 |
VENT VALVE - Call your local BRP dealership |
| 22 |
705500894 |
Drain Plug |
| 23 |
705500267 |
O-Ring |
| 24 |
705401618 |
Gasket This part replaces 705500255. |
| 25 |
705502061 |
Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 26 |
705500075 |
Pinion Gear Shim .022" |
| 26a |
705501162 |
Pinion Gear Shim |
| 27 |
705401604 |
Shim This part replaces 703500288. |
| 28 |
705401604 |
Shim This part replaces 703500050. |
| 29 |
705500504 |
Fill Level Plug This part replaces 250400041. |
| 30 |
705500506 |
Copper Washer |
| 32 |
705500560 |
CV Joint |
| 33a |
293650192 |
OETIKER CLAMP 23MM - Call your local BRP dealership |
| 33b |
293650193 |
OETIKER CLAMP 67MM - Call your local BRP dealership |
| 34a |
293650192 |
OETIKER CLAMP 23MM - Call your local BRP dealership |
| 34b |
293650194 |
OETIKER CLAMP 70MM - Call your local BRP dealership |
| 35 |
705400042 |
CIRCLIP - Call your local BRP dealership |
| 36 |
705400820 |
LH KNUCKLE - Call your local BRP dealership |
| 37 |
705400821 |
RH KNUCKLE - Call your local BRP dealership |
| 39 |
705500560 |
CV Joint |
| 40a |
293650192 |
OETIKER CLAMP 23MM - Call your local BRP dealership |
| 40b |
293650193 |
OETIKER CLAMP 67MM - Call your local BRP dealership |
| 41a |
293650192 |
OETIKER CLAMP 23MM - Call your local BRP dealership |
| 41b |
293650194 |
OETIKER CLAMP 70MM - Call your local BRP dealership |
| 42 |
705400042 |
CIRCLIP - Call your local BRP dealership |
| 43 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 44 |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 45 |
293370019 |
Circlip |
| 46 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 47 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 48 |
705501122 |
EXTERNAL WEAR SLEEVE - Call your local BRP dealership |
| 50 |
250300055 |
Wheel Stud M10 X 1.25 This part replaces 250300034. |
| 51 |
250200171 |
Conical Spring Washer M18 This part replaces 250200049. |
| 52 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 53 |
250400036 |
Cotter Pin |
| 54 |
705400552 |
Rubber Bellow This part replaces 705400352. |
| 55 |
293650042 |
Oetiker Clamp |
| 57 |
705400945 |
RIM_12 INCH X 6 - Call your local BRP dealership This part replaces 705400794. |
| 58 |
705400872 |
VALVE_TIRE WITH CAP FORMED - Call your local BRP dealership |
| 60 |
705401248 |
REINFORCEMENT DISC PLATE - Call your local BRP dealership This part replaces 705400841. |
| 61 |
250000787 |
Hex. Flange Screw M6 X 25 This part replaces 250000435. |
| 62 |
293000111 |
VALVE CAP - Call your local BRP dealership |
| 63 |
250100184 |
Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 64 |
250200102 |
Flat Washer M12 |
| 65 |
250001039 |
Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 66 |
705400780 |
Wear Sleeve |
| 67 |
250200102 |
Flat Washer M12 |
| 68 |
250000378 |
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
