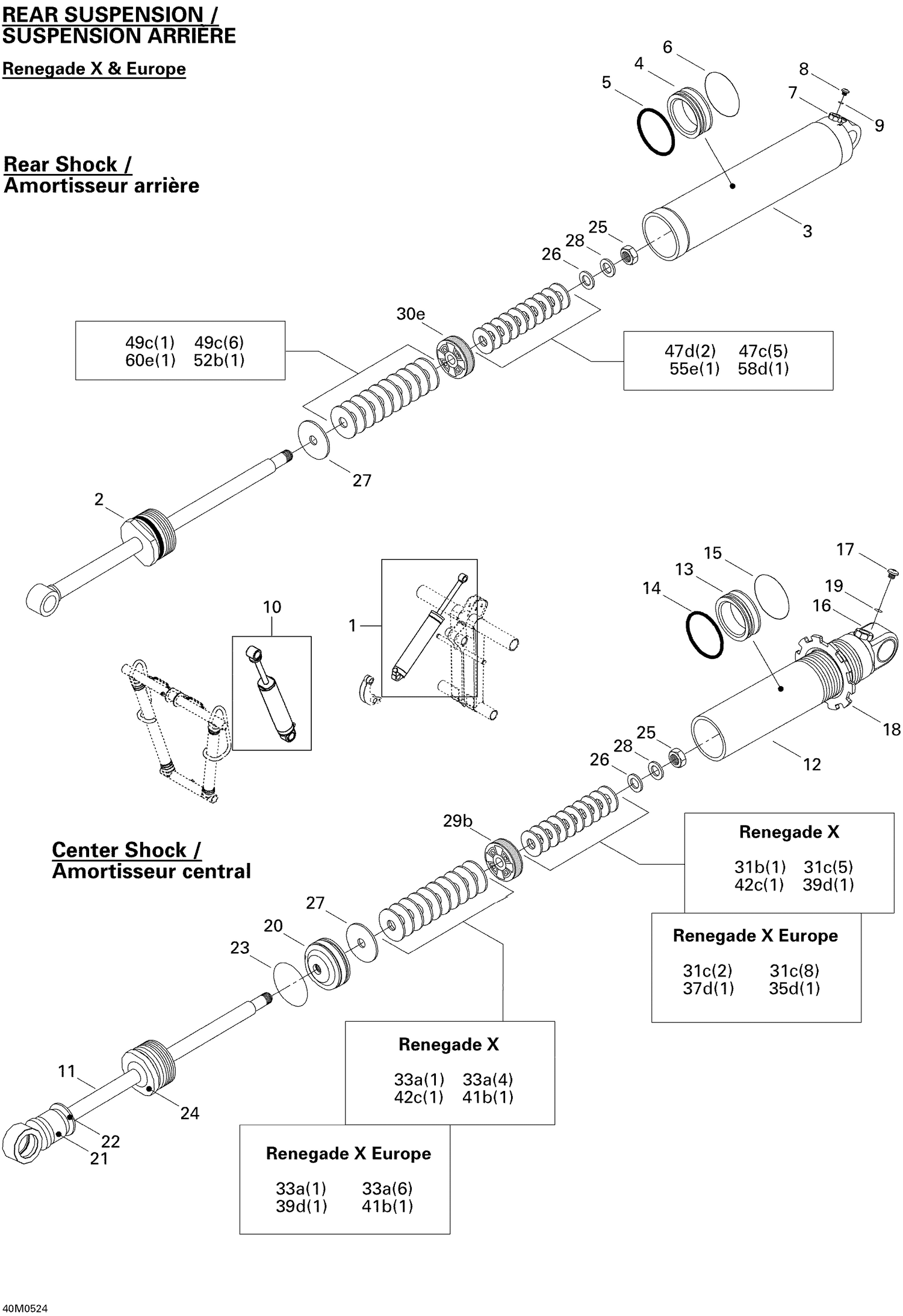

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Rod Ass'y |
| 3 |
Not |
Available As Spare Part - Cylinder Tube |
| 4 |
503189008 |
FLOTTING PISTON - Call your local BRP dealership |
| 5 |
503189007 |
O-RING - Call your local BRP dealership |
| 6 |
503189006 |
PISTON RING - Call your local BRP dealership |
| 7 |
505070398 |
Air Valve |
| 8 |
505070399 |
Screw |
| 9 |
505070400 |
O-Ring |
| 11 |
Not |
Available As Spare Part - Rod Ass'y |
| 12 |
Not |
Available As Spare Part - Cylinder Tube |
| 13 |
503189309 |
FREE PISTON - Call your local BRP dealership |
| 14 |
414888312 |
O-Ring |
| 15 |
503189308 |
Piston Ring |
| 16 |
505070398 |
Air Valve |
| 17 |
505070399 |
Screw |
| 18 |
414888316 |
SPRING COLLAR - Call your local BRP dealership |
| 19 |
505070400 |
O-Ring |
| 20 |
Not |
Available As Spare Part - Bearing Compressor |
| 21 |
Not |
Available As Spare Part - Rubber Cushion |
| 22 |
Not |
Available As Spare Part - Washer |
| 23 |
Not |
Available As Spare Part - Stop Ring |
| 24 |
Not |
Available As Spare Part - Seal Ass'y |
| 25 |
Not |
Available As Spare Part - Nut |
| 26 |
Not |
Available As Spare Part - Valve Stopper |
| 27 |
Not |
Available As Spare Part - Valve Stopper |
| 28 |
Not |
Available As Spare Part - Washer |
| 29a |
414888304 |
Piston (C36) |
| 29b |
Not |
Available As Spare Part - Piston (2 X 0.3-1) (C36) |
| 29c |
414888305 |
Piston (2 X 0.3-2) (C36) |
| 29d |
Not |
Available As Spare Part - Piston (2 x 0.3-3) (C36) |
| 29e |
414888306 |
Piston (2 X 0.3-4) (C36) |
| 29f |
Not |
Available As Spare Part - Piston (2 x 0.3-5) (C36) |
| 29g |
414888307 |
Piston (2 X 0.3-6) (C36) |
| 30a |
503189004 |
Piston (C46) |
| 30b |
503189003 |
Piston, Ø1.2 (C46) |
| 30c |
Not |
Available As Spare Part - Piston (Ø1.4) (C46) |
| 30d |
503189002 |
Piston, Ø1.7 (C46) |
| 30e |
Not |
Available As Spare Part - Piston (Ø2.0) (C46) |
| 31a |
415039100 |
Leaf Valve Ø30 X 0.254 (C36) |
| 31b |
414888318 |
Leaf Valve Ø30 X 0.203 (C36) |
| 31c |
414888319 |
Leaf Valve Ø30 X 0.152 (C36) |
| 31d |
Not |
Available As Spare Part - Leaf Valve Ø30 x 0.114 (C36) |
| 32a |
Not |
Available As Spare Part - Leaf Valve Ø28 x 0.254 (C36) |
| 32b |
414888320 |
Leaf Valve Ø28 X 0.203 (C36) |
| 32c |
414888321 |
Leaf Valve Ø28 X 0.152 (C36) |
| 32d |
Not |
Available As Spare Part - Leaf Valve Ø28 x 0.114 (C36) |
| 33a |
415039000 |
Leaf Valve Ø26 X 0.254 (C36) |
| 33b |
414888322 |
Leaf Valve Ø26 X 0.203 (C36) |
| 33c |
414888323 |
Leaf Valve Ø26 X 0.152 (C36) |
| 33d |
Not |
Available As Spare Part - Leaf Valve Ø26 x 0.114 (C36) |
| 34a |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.254 (C36) |
| 34b |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.203 (C36) |
| 34c |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.152 (C36) |
| 34d |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.114 (C36) |
| 35a |
Not |
Available As Spare Part - Leaf Valve Ø22 x 0.254 (C36) |
| 35b |
414888324 |
Leaf Valve Ø22 X 0.203 (C36) |
| 35c |
414888325 |
Leaf Valve Ø22 X 0.152 (C36) |
| 35d |
Not |
Available As Spare Part - Leaf Valve Ø22 x 0.114 (C36) |
| 36a |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0.254 (C36) |
| 36b |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0.203 (C36) |
| 36c |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0.152 (C36) |
| 36d |
414888340 |
Leaf Valve Ø21 X 0.114 (C36) |
| 37a |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.254 (C36) |
| 37b |
414888326 |
Leaf Valve Ø20 X 0.203 (C36) |
| 37c |
414888327 |
Leaf Valve Ø20 X 0.152 (C36) |
| 37d |
414888328 |
Leaf Valve Ø20 X 0.114 (C36) |
| 38a |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.254 (C36) |
| 38b |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.203 (C36) |
| 38c |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.152 (C36) |
| 38d |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.114 (C36) |
| 39a |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.254 (C36) |
| 39b |
414888329 |
Leaf Valve Ø18 X 0.203 (C36) |
| 39c |
414888330 |
Leaf Valve Ø18 X 0.152 (C36) |
| 39d |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.114 (C36) |
| 40a |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.254 (C36) |
| 40b |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.203 (C36) |
| 40c |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.152 (C36) |
| 40d |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.114 (C36) |
| 41a |
414888331 |
Leaf Valve Ø16 X 0.254 (C36) |
| 41b |
414888332 |
Leaf Valve Ø16 X 0.203 (C36) |
| 41c |
414888333 |
Leaf Valve Ø16 X 0.152 (C36) |
| 41d |
415038900 |
Leaf Valve Ø16 X 0.114 (C36) |
| 42a |
414888334 |
Leaf Valve Ø15 X 0.254 (C36) |
| 42b |
414888335 |
Leaf Valve Ø15 X 0.203 (C36) |
| 42c |
414888336 |
Leaf Valve Ø15 X 0.152 (C36) |
| 42d |
414888337 |
Leaf Valve Ø15 X 0.114 (C36) |
| 43a |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.254 (C36) |
| 43b |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.203 (C36) |
| 43c |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.152 (C36) |
| 43d |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.114 (C36) |
| 44a |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.254 (C36) |
| 44b |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.203 (C36) |
| 44c |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.152 (C36) |
| 44d |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.114 (C36) |
| 45a |
503189538 |
Leaf Valve Ø12 X 0.254 (C36) |
| 45b |
414888338 |
Leaf Valve Ø12 X 0.203 (C36) |
| 45c |
414888339 |
Leaf Valve Ø12 X 0.152 (C36) |
| 45d |
415038800 |
Leaf Valve Ø12 X 0.114 (C36) |
| 47a |
Not |
Available As Spare Part - Leaf Valve Ø40 x 0.305 (C46) |
| 47b |
503189041 |
Leaf Valve Ø40 X 0.254 (C46) |
| 47c |
503189040 |
Leaf Valve Ø40 X 0.203 (C46) |
| 47d |
503189039 |
Leaf Valve Ø40 X 0.152 (C46) |
| 47e |
Not |
Available As Spare Part - Leaf Valve Ø40 x 0.114 (C46) |
| 48a |
Not |
Available As Spare Part - Leaf Valve Ø38 x 0.305 (C46) |
| 48b |
Not |
Available As Spare Part - Leaf Valve Ø38 x 0.254 (C46) |
| 48c |
Not |
Available As Spare Part - Leaf Valve Ø38 x 0.203 (C46) |
| 48d |
Not |
Available As Spare Part - Leaf Valve Ø38 x 0.152 (C46) |
| 48e |
Not |
Available As Spare Part - Leaf Valve Ø38 x 0.114 (C46) |
| 49a |
Not |
Available As Spare Part - Leaf Valve Ø36 x 0.305 (C46) |
| 49b |
503189038 |
Leaf Valve Ø36 X 0.254 (C46) |
| 49c |
503189037 |
Leaf Valve Ø36 X 0.203 (C46) |
| 49d |
503189036 |
Leaf Valve Ø36 X 0.152 (C46) |
| 49e |
Not |
Available As Spare Part - Leaf Valve Ø36 x 0.114 (C46) |
| 50a |
Not |
Available As Spare Part - Leaf Valve Ø34 x 0.305 (C46) |
| 50b |
Not |
Available As Spare Part - Leaf Valve Ø34 x 0.254 (C46) |
| 50c |
Not |
Available As Spare Part - Leaf Valve Ø34 x 0.203 (C46) |
| 50d |
Not |
Available As Spare Part - Leaf Valve Ø34 x 0.152 (C46) |
| 50e |
Not |
Available As Spare Part - Leaf Valve Ø34 x 0.114 (C46) |
| 51a |
503189035 |
Leaf Valve Ø30 X 0.305 (C46) |
| 51b |
503189034 |
Leaf Valve Ø30 X 0.254 (C46) |
| 51c |
503189033 |
Leaf Valve Ø30 X 0.203 (C46) |
| 51d |
503189032 |
Leaf Valve Ø30 X 0.152 (C46) |
| 51e |
503189031 |
Leaf Valve Ø30 X 0.114 (C46) |
| 52a |
503189030 |
Leaf Valve Ø28 X 0.305 (C46) |
| 52b |
503189029 |
Leaf Valve Ø28 X 0.254 (C46) |
| 52c |
503189028 |
Leaf Valve Ø28 X 0.203 (C46) |
| 52d |
503189027 |
Leaf Valve Ø28 X 0.152 (C46) |
| 52e |
503189026 |
Leaf Valve Ø28 X 0.114 (C46) |
| 53a |
503189025 |
Leaf Valve Ø26 X 0.305 (C46) |
| 53b |
503189024 |
Leaf Valve Ø26 X 0.254 (C46) |
| 53c |
503189023 |
Leaf Valve Ø26 X 0.203 (C46) |
| 53d |
503189022 |
Leaf Valve Ø26 X 0.152 (C46) |
| 53e |
503189021 |
Leaf Valve Ø26 X 0.114 (C46) |
| 54a |
503189020 |
Leaf Valve Ø24 X 0.305 (C46) |
| 54b |
503189019 |
Leaf Valve Ø24 X 0.254 (C46) |
| 54c |
503189018 |
Leaf Valve Ø24 X 0.203 (C46) |
| 54d |
503189017 |
Leaf Valve Ø24 X 0.152 (C46) |
| 54e |
503189016 |
Leaf Valve Ø24 X 0.114 (C46) |
| 55a |
503189015 |
Leaf Valve Ø22 X 0.305 (C46) |
| 55b |
503189014 |
Leaf Valve Ø22 X 0.254 (C46) |
| 55c |
503189013 |
Leaf Valve Ø22 X 0.203 (C46) |
| 55d |
503189012 |
Leaf Valve Ø22 X 0.152 (C46) |
| 55e |
503189011 |
Leaf Valve Ø22 X 0.114 (C46) |
| 56a |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.305 (C46) |
| 56b |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.254 (C46) |
| 56c |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.203 (C46) |
| 56d |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.152 (C46) |
| 56e |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.114 (C46) |
| 57a |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.305 (C46) |
| 57b |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.254 (C46) |
| 57c |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.203 (C46) |
| 57d |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.152 (C46) |
| 57e |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.114 (C46) |
| 58a |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.305 (C46) |
| 58b |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.254 (C46) |
| 58c |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.203 (C46) |
| 58d |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.152 (C46) |
| 58e |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.114 (C46) |
| 59a |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.305 (C46) |
| 59b |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.254 (C46) |
| 59c |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.203 (C46) |
| 59d |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.152 (C46) |
| 59e |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.114 (C46) |
| 60a |
Not |
Available As Spare Part - Leaf Valve Ø16 x 0.305 (C46) |
| 60b |
Not |
Available As Spare Part - Leaf Valve Ø16 x 0.254 (C46) |
| 60c |
Not |
Available As Spare Part - Leaf Valve Ø16 x 0.203 (C46) |
| 60d |
Not |
Available As Spare Part - Leaf Valve Ø16 x 0.152 (C46) |
