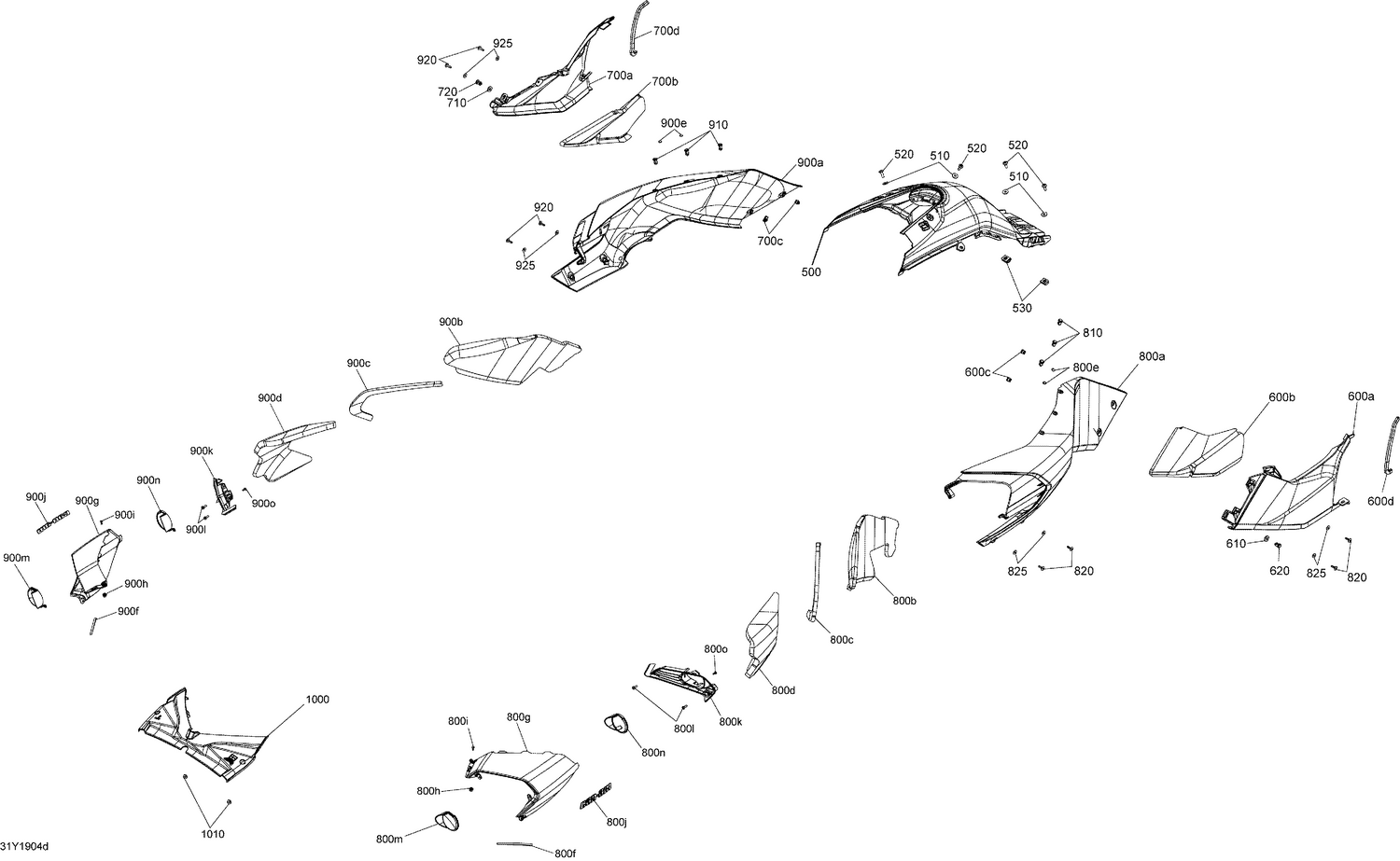

09- Body And Accessories Fairing
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 705013571 | Deep Black, Tank Cover |
| 510 | 234062670 | Stainless Steel Flat Washer |
| 520 | 250000722 | Torx Screw M6 X 20 |
| 530 | 250100208 | Panel Nut M6 X 1.0 |
| 600b | 705010473 | LH Acoustic Foam |
| 600c | 250000958 | Panel Nut M5 X 0.8 |
| 610 | 705010890 | Spacer |
| 620 | 293150230 | Tuflok Plastic Rivet |
| 700b | 705010474 | RH Acoustic Foam |
| 700c | 250000958 | Panel Nut M5 X 0.8 |
| 710 | 705010890 | Spacer |
| 720 | 293150230 | Tuflok Plastic Rivet |
| 800b | 705009155 | Acoustic Foam |
| 800c | 705009157 | Acoustic Foam |
| 800d | 705009159 | Acoustic Foam |
| 800e | 705006634 | Polyurethane Stopper |
| 800f | 219704373 | Seal 1000Mm Long |
| 800g | 705011456 | Deep Black, LH Air Scoop |
| 800h | 705009430 | Anchor Pin |
| 800i | 250000577 | Torx Truss Screw K40 X 12 |
| 800j | 704905126 | Matt Black, Logo Can-Am |
| 800k | 705010137 | Deep Black, LH Air Vent Grid |
| 800l | 250000720 | Torx Screw K50 X 16 |
| 800o | 250000577 | Torx Truss Screw K40 X 12 |
| 810 | 293150230 | Tuflok Plastic Rivet |
| 820 | 250000586 | Torx Truss M5 X 20 |
| 825 | 234052670 | Stainless Steel Flat Washer M5 |
| 900b | 705009156 | Acoustic Foam |
| 900c | 705009158 | Acoustic Foam |
| 900d | 705009160 | Acoustic Foam |
| 900e | 705006634 | Polyurethane Stopper |
| 900f | 219704373 | Seal 1000Mm Long |
| 900g | 705011399 | Deep Black, RH Air Scoop |
| 900h | 705009430 | Anchor Pin |
| 900i | 250000577 | Torx Truss Screw K40 X 12 |
| 900j | 704905126 | Matt Black, Logo Can-Am |
| 900k | 705010138 | Deep Black, RH Air Vent Grid |
| 900l | 250000720 | Torx Screw K50 X 16 |
| 900o | 250000577 | Torx Truss Screw K40 X 12 |
| 910 | 293150230 | Tuflok Plastic Rivet |
| 920 | 250000586 | Torx Truss M5 X 20 |
| 925 | 234052670 | Stainless Steel Flat Washer M5 |
| 1000 | 705008058 | Service Center Fairing |
