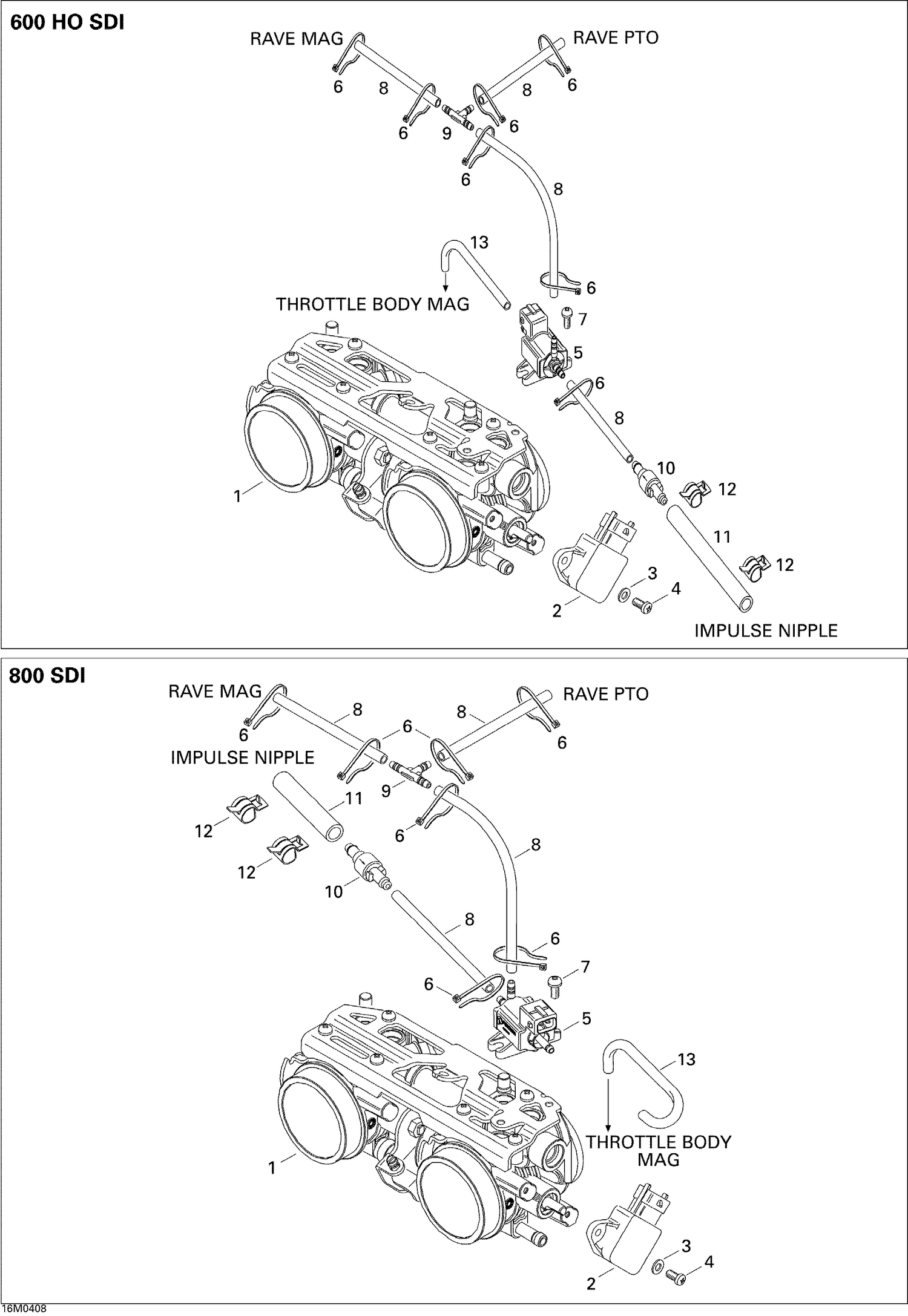

02- Throttle Body
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420866120 | Position Sensor This part replaces 270000251. |
| 3 | 234041600 | Flat Washer 4 mm, Stainless |
| 4 | 208641660 | Phillips Screw M4 X 16 |
| 5 | 420664630 | Solenoïd Valve |
| 6 | 293750001 | Tie Wrap 94 mm This part replaces 420866718. |
| 7 | 420940011 | SCREW M5 X 10 - Call your local BRP dealership |
| 8 | 420660571 | High Pressure Air Hose, 180 mm |
| 9 | 293710068 | T-Fitting |
| 10 | 275500479 | CHECK VALVE - Call your local BRP dealership |
| 12 | 293650214 | Norma Spring Clamp This part replaces 420853510. |
