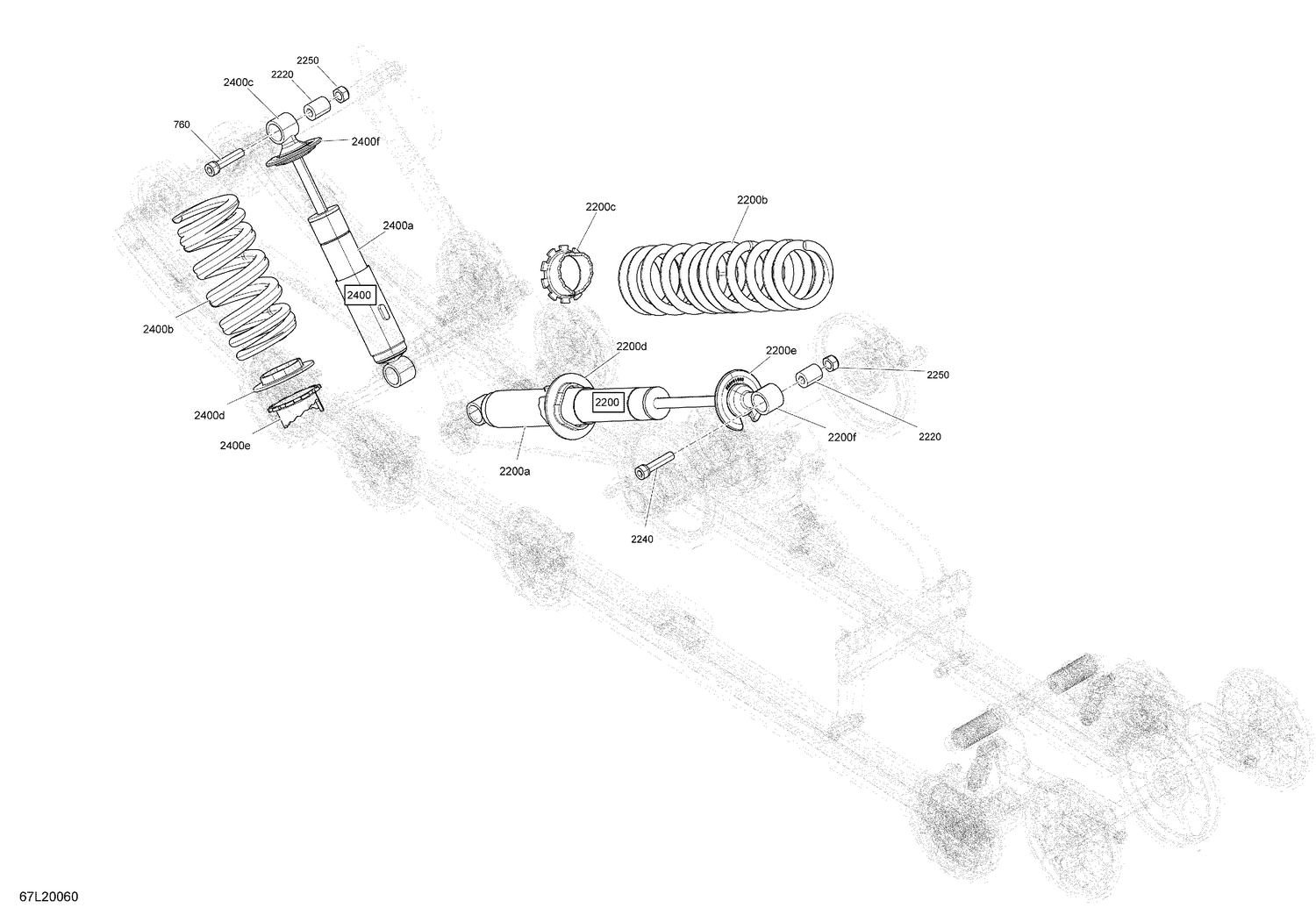

| Ref | Part Number | Description |
|---|
| 760 |
40134 |
Screw Socket HD.DIN 912 This part replaces 205004544. |
| 2200 |
Not |
Available As Spare Part - Shock Assembly, Rear |
| 2200a |
503195454 |
Rear Shock |
| 2200b |
503194931 |
Spring 350 MM-40 N/MM |
| 2200c |
230078 |
Adjusting Cam |
| 2200d |
503195341 |
Spacer |
| 2200e |
503196528 |
Stopper Spring This part replaces 503194922. |
| 2200f |
503195134 |
Glide Bearing |
| 2220 |
5446652 |
Bushing |
| 2240 |
40134 |
Screw Socket HD.DIN 912 This part replaces 205004544. |
| 2250 |
232500416 |
Elastic Stop Nut M10 |
| 2400 |
Not |
Available As Spare Part - Shock Assembly, Center |
| 2400a |
503195456 |
Center Shock |
| 2400b |
503193291 |
Spring 220 MM-25 N/MM |
| 2400c |
503195134 |
Glide Bearing |
| 2400d |
503195341 |
Spacer |
| 2400e |
230078 |
Adjusting Cam |
