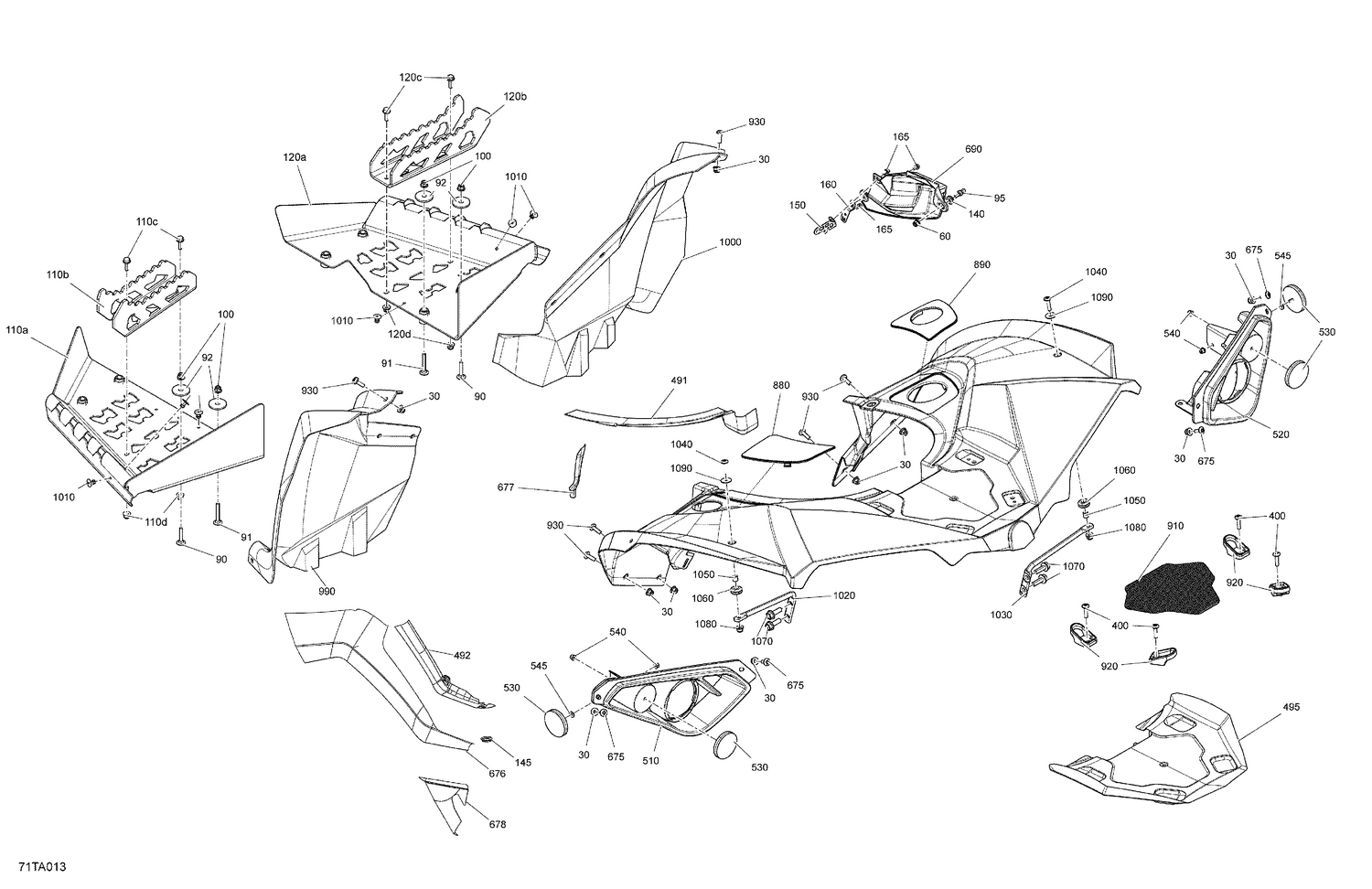

07- Body - Rear Section
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 233261434 | Flange Elastic Nut M6 |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 90 | 207763554 | Carriage Bolt M6 X 35 |
| 91 | 207764550 | Carriage Bolt M6 X 45 |
| 92 | 250200158 | Flat Washer M8 |
| 95 | 250300039 | Ball Head Stud |
| 100 | 233261494 | Hex. Flange Elastic Nut M6 |
| 110a | 705016588 | Deep Black, LH Footrest This part replaces 705010490. |
| 110b | 705010493 | LH Foot Rest |
| 110c | 207662034 | Hex. Flange Screw M6 X 20 |
| 110d | 233261434 | Flange Elastic Nut M6 |
| 120a | 705017261 | Deep Black, RH Footrest -SB This part replaces 705010494. |
| 120b | 705010499 | RH Foot Rest |
| 120c | 207662034 | Hex. Flange Screw M6 X 20 |
| 120d | 233261434 | Flange Elastic Nut M6 |
| 140 | 709000582 | Grommet |
| 145 | 705000321 | Oval Washer |
| 150 | 705011461 | Engine Cover Support |
| 160 | 705003646 | Engine Cover Support |
| 165 | 210261250 | Hex. Flange Screw M6 X 12 |
| 400 | 250000758 | Torx Screw M6 X 25 |
| 491 | 705002451 | Reflective Sheet |
| 492 | 705010559 | Heat Shield |
| 495 | 705005840 | Reflective Sheet |
| 510 | 705004731 | LH Rear Facia |
| 520 | 705004732 | RH Rear Facia |
| 530 | 705011221 | Red Reflector |
| 540 | 233251434 | Flange Elastic Nut M5 |
| 545 | 517225900 | Flat Washer |
| 675 | 250000755 | Torx Screw M6 X 16 |
| 676 | 705005620 | Reflective Sheet |
| 677 | 705010557 | Heat Shield |
| 678 | 705005622 | Reflective Sheet |
| 690 | 705004966 | Engine Cover |
| 880 | 705017923 | LH Rear Body Panel Cap This part replaces 705001910. |
| 890 | 705017924 | RH Rear Body Panel Cap This part replaces 705002420. |
| 910 | 705002343 | Rear Carpet |
| 920 | 705017925 | Hook This part replaces 705002342. |
| 930 | 250000712 | Torx Screw M6 X 20 |
| 990 | 705009738 | Mudguard |
| 1000 | 705009739 | Mudguard |
| 1010 | 293150104 | Pop Rivet 3/16" |
| 1020 | 705010314 | LH Fender Support |
| 1030 | 705010315 | RH Fender Support |
| 1040 | 250000758 | Torx Screw M6 X 25 |
| 1050 | 293900105 | Bushing |
| 1060 | 709000582 | Grommet |
| 1070 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 1080 | 233261434 | Flange Elastic Nut M6 |
