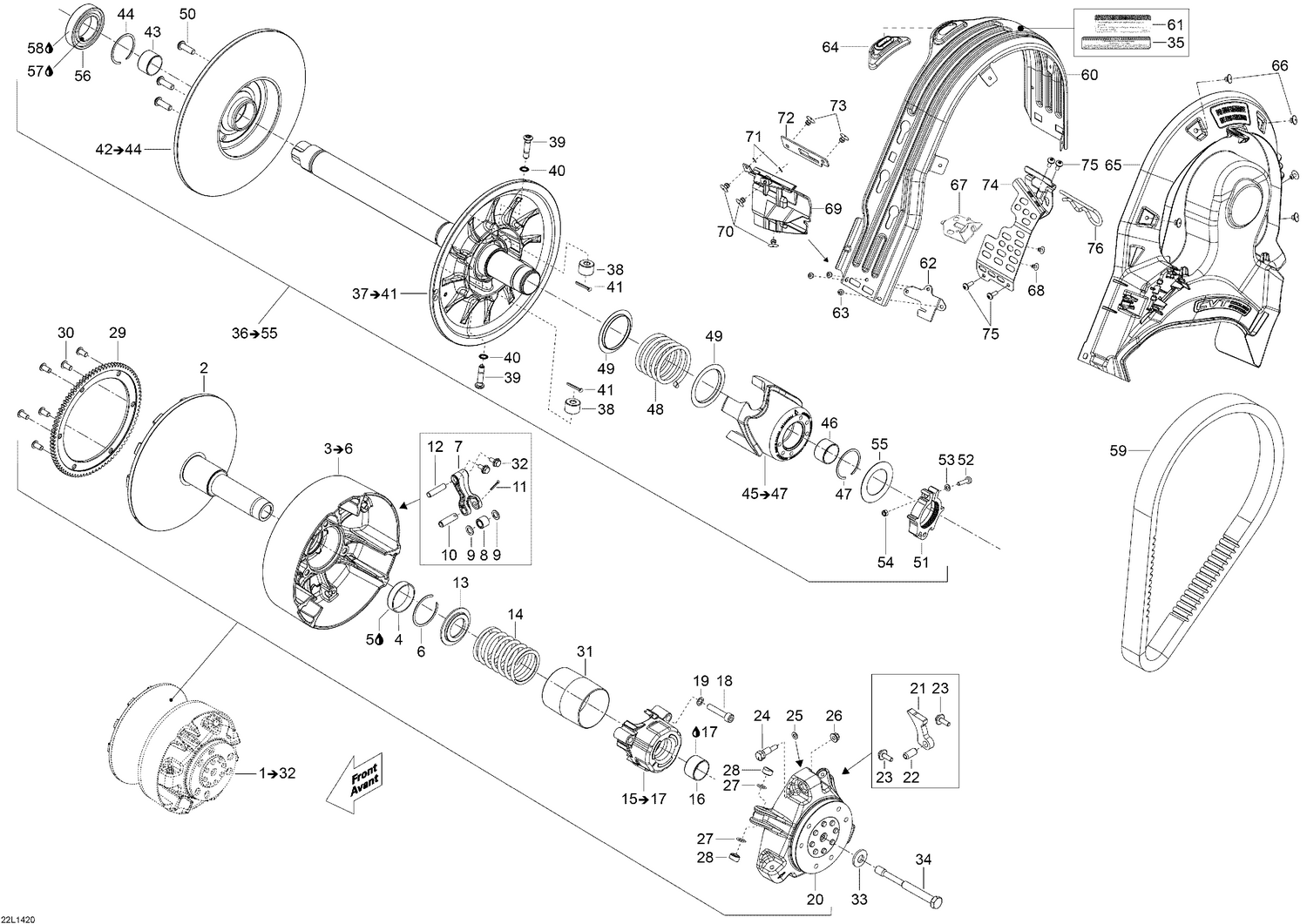

| Ref | Part Number | Description |
|---|
| 2 |
417222937 |
Fixed Flange Ass'y |
| 4 |
417222758 |
Bushing Outer Half |
| 5 |
619600012 |
Loctite 609, 50ml |
| 6 |
293370037 |
Circlip |
| 7 |
417222671 |
Lever Ass´y |
| 8 |
417222947 |
Roller |
| 9 |
417004302 |
Stopper Washer |
| 10 |
417004308 |
Pin |
| 11 |
250400060 |
Cotter Pin |
| 12 |
417223164 |
Axle Lever |
| 13 |
417222312 |
Spring Seat |
| 14 |
414817700 |
Spring (Blue / Green, 579-1157N) |
| 16 |
417009204 |
Bushing |
| 17 |
619600012 |
Loctite 609, 50ml |
| 18 |
205084044 |
Socket Head Screw M8 x 40 |
| 19 |
250200009 |
Lock Washer 8mm |
| 20 |
417223669 |
Governor Cup |
| 21 |
417222515 |
Ramp 412 |
| 22 |
250400050 |
Spring Pin M10 x 22 |
| 23 |
250000418 |
Hex. Flanged Screw M6 x 18, Scotch Grip |
| 24 |
417223501 |
Calibration Screw |
| 25 |
417005600 |
Washer |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 27 |
732401030 |
O Ring |
| 28 |
417222992 |
Slider Shoe |
| 29 |
417225070 |
Ring Gear_Starter This part replaces 417223738. |
| 30 |
250000533 |
Hex. Flanged Screw M8 x 16, Scotch Grip |
| 31 |
417009205 |
Guard |
| 32 |
250000412 |
Hex. Flanged Screw M6 x 12, Scotch Grip |
| 33 |
250200144 |
Conical Spring Washer M14 |
| 34 |
417120000 |
Drive Pulley Bolt |
| 35 |
516005503 |
Decal, Notice, Drive Pulley Bolt |
| 38 |
417127016 |
Roller |
| 39 |
417127294 |
Stud |
| 40 |
250200009 |
Lock Washer 8mm |
| 41 |
250400063 |
Spring Pin M3 x 30 |
| 43 |
417127318 |
Bushing |
| 44 |
293370049 |
Spacer (1.91/2.21mm) |
| 46 |
417127318 |
Bushing |
| 47 |
293370049 |
Spacer (1.91/2.21mm) |
| 48 |
417127137 |
Spring (Green / Green, 800 / 1350N) |
| 49 |
417127116 |
Swivel Abutment |
| 50 |
250000283 |
Button Head Torx Screw M8 x 25, Scotch Grip |
| 51 |
415129604 |
Pulley Adjuster Ass'y |
| 52 |
205052544 |
Socket Head Screw M10 x 1.5 |
| 53 |
234051410 |
Flat Washer M5 |
| 54 |
232551414 |
Elastic Stop Nut M5 |
| 55 |
417127155 |
Washer |
| 56 |
504152574 |
Ball Bearing |
| 57 |
619600012 |
Loctite 609, 50ml |
| 58 |
619600013 |
Loctite 8151 (Antiseize), 400ml Spray |
| 59 |
417300551 |
Drive Belt This part replaces 417300383. |
| 60 |
417300357 |
Belt Guard |
| 61 |
516005509 |
Warning Decal, Security Belt Guard |
| 62 |
417300423 |
Front Bracket |
| 63 |
390909200 |
Avex Rivet |
| 64 |
417300381 |
Guide |
| 65 |
417300441 |
CVT Air Duct |
| 66 |
293150103 |
Pop Rivet 3/16 |
| 67 |
417300445 |
Stopper |
| 68 |
390909200 |
Avex Rivet |
| 69 |
417300430 |
Front Support |
| 70 |
293150104 |
Pop Rivet 3/16 |
| 71 |
517225900 |
Flat Washer |
| 72 |
417300421 |
Reinforcement |
| 73 |
390909100 |
Avex Rivet |
| 74 |
417300448 |
BELT GUARD BRACKET - Call your local BRP dealership |
| 75 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. |
