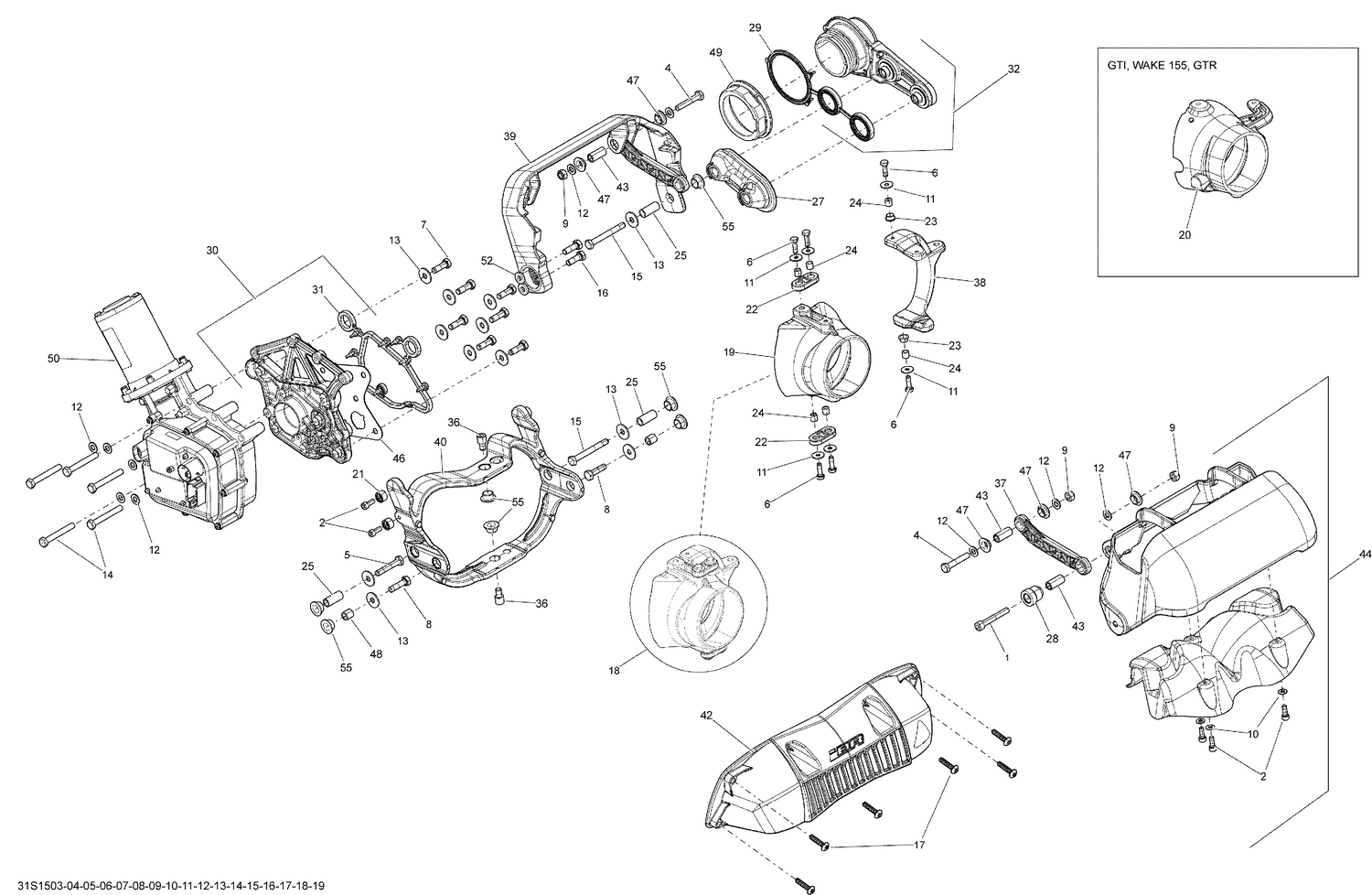

| Ref | Part Number | Description |
|---|
| 1 |
205085560 |
Socket Head Screw M8 X 55 |
| 2 |
205561660 |
Socket Head Screw M6 X 16, Scotch Grip |
| 4 |
207084560 |
Hex. Screw M8 X 45 |
| 5 |
207284560 |
HEX. SCREW S. GRIP M8 X 45 - Call your local BRP dealership |
| 6 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 7 |
207382560 |
Hex. Screw M8 X 25, Scotch Grip |
| 8 |
207383060 |
Hex. Screw M8 X 30, Scotch Grip |
| 9 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 10 |
234061600 |
Stainless Flat Washer M6 |
| 11 |
234062600 |
Flat Washer M6, Stainless |
| 12 |
234081600 |
Stainless, Flat Washer 8 mm |
| 13 |
234082600 |
Flat Washer 8 mm, Stainless |
| 14 |
250000187 |
Hex. Screw M8 X 60, Scotch Grip |
| 15 |
250000506 |
Hex. Screw M8 X 70, Scotch Grip |
| 16 |
250000525 |
Hex. Screw M8 X 25, Scotch Grip |
| 17 |
250001007 |
Screw Torx M6.81 X 30 This part replaces 250000709. |
| 18 |
267000905 |
NOZZLE ASS'Y - Call your local BRP dealership This part replaces 267000724. |
| 19 |
267000727 |
Jet Pump Nozzle |
| 20 |
XXX |
Not Available As Spare Parts |
| 21 |
268000045 |
Friction Sleeve |
| 22 |
268000058 |
Direction Lever Arm |
| 23 |
268000059 |
Bushing |
| 24 |
268000060 |
Spacer |
| 25 |
268000063 |
Spacer |
| 27 |
268000085 |
RH Support Plate |
| 28 |
268000099 |
Bushing |
| 29 |
268000105 |
RH FORMED SEAL - Call your local BRP dealership |
| 30 |
268000111 |
LH Fixing Plate Ass'y |
| 31 |
268000129 |
LH Formed Seal |
| 32 |
268000130 |
RH Fixing Plate Ass'y |
| 36 |
268000141 |
Socket Head Screw M8 X 13 |
| 37 |
268000145 |
Linkage Arm |
| 38 |
268000148 |
Nozzle Lever, Black |
| 40 |
268000155 |
TRIMMING RING, BLACK - Call your local BRP dealership |
| 42 |
268000162 |
Guard |
| 43 |
268000182 |
Spacer |
| 44 |
268000183 |
Reverse Gate Ass'y |
| 46 |
268000216 |
BASE MOUNT - Call your local BRP dealership |
| 47 |
271000321 |
Venturi Bushing |
| 48 |
271001039 |
Spacer |
| 49 |
274000224 |
Nut 72 mm |
| 50 |
278003122 |
IBR Actuator |
| 52 |
293050001 |
Flat Washer M8.5 x 18 |
