| Ref | Part Number | Description |
|---|
| 1 |
0390440 |

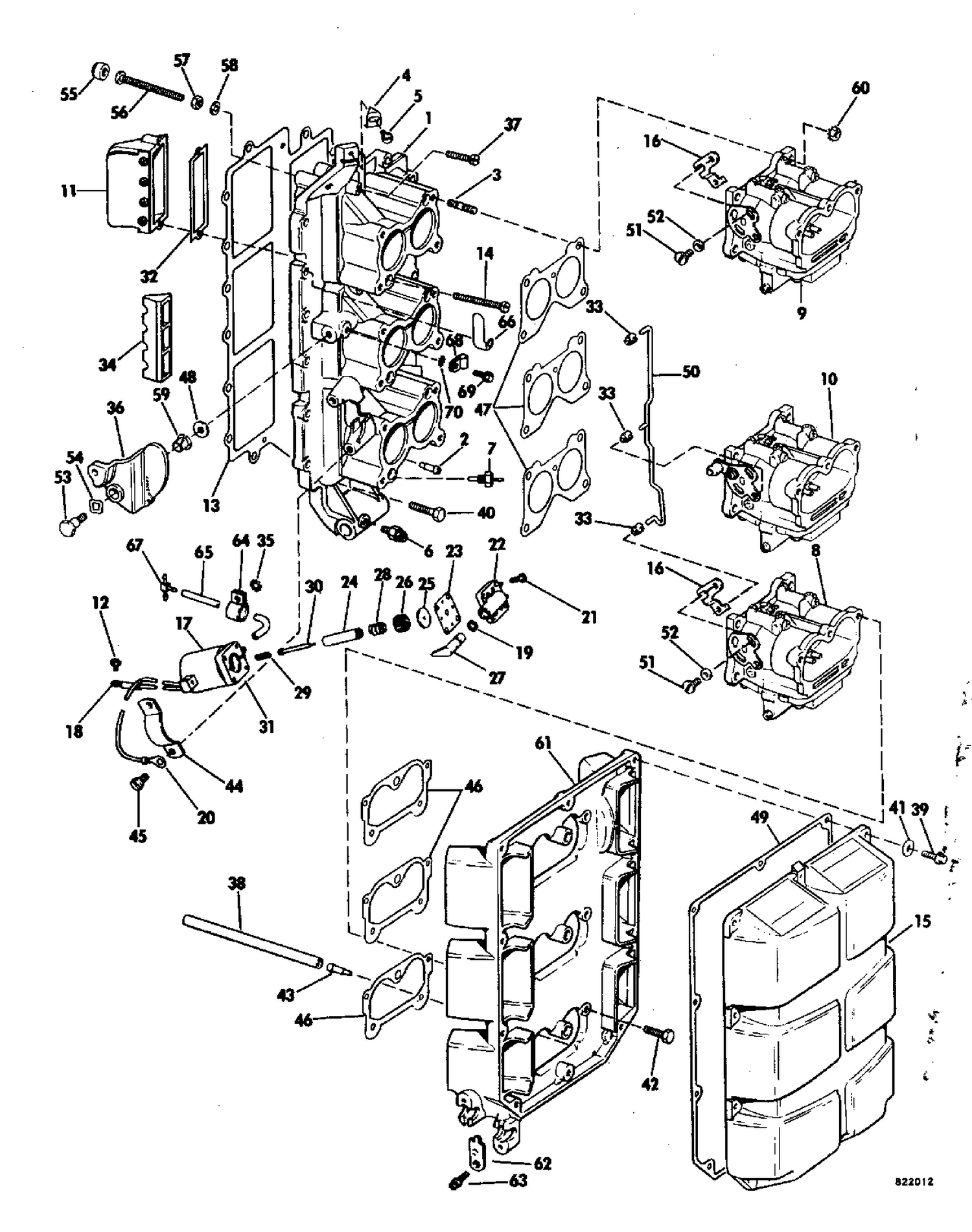

INTAKE MANIFOLD ASSEMBLY |
| 3 |
0314956 |
STUD |
| 4 |
0330115 |
CLAMP, Power pack connector This part replaces 0318174. |
| 5 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 7 |
0392988 |
CHECK VALVE |
| 8 |
CARB. |
ASSY., Lower |
| 9 |
CARB. |
ASSY., Upper |
| 10 |
CARB. |
ASSY., Middle |
| 11 |
0389823 |
CLAPET |
| 13 |
0329718 |
GASKET, Manifold to c'case This part replaces 0321198. |
| 14 |
0313217 |
SCREW |
| 15 |
0320930 |
COVER, Air silencer |
| 16 |
0320575 |
ADJ LEVER, Throttle link |
| 17 |
5007356 |
Kit Ay This part replaces 0582111. |
| 22 |
0511807 |
COVER&GASKET AY |
| 23 |
0333448 |
GASKET This part replaces 0511808. |
| 25 |
0333448 |
GASKET This part replaces 0511810. |
| 31 |
0511806 |
HOUSING |
| 32 |
0321907 |
GASKET, Leaf plate |
| 33 |
0313329 |
LOCKWASHER, Carburetor link |
| 34 |
0322722 |
FILLER BLOCK, 175, 185, 235 |
| 36 |
0330665 |
THROTTLE AM This part replaces 0326170. |
| 37 |
0133451 |
SCREW, Leaf plate manifold, short |
| 38 |
HOSE, |
Air silencer |
| 40 |
0306418 |
VIS, ancrage |
| 42 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 44 |
0321218 |
CLAMP, Choke solenoid |
| 45 |
0319292 |
SCREW, Clamp This part replaces 0308762. |
| 46 |
0319771 |
GASKET SET, Air silencer |
| 47 |
0327707 |
GASKET, Air silencer |
| 49 |
0321183 |
GASKET, Cover |
| 50 |
0432272 |
LINK AND PIN, Throttle arm This part replaces 0387378. |
| 54 |
0304445 |
WAVE WASHER, Cam to intake |
| 55 |
0314416 |
BUMBER, Advance screw |
| 56 |
0317615 |
SCERW,Spark advance |
| 60 |
0316291 |
NUT |
| 61 |
0391254 |
BASE, Air silencer |
| 62 |
0325388 |
RETAINER, Air silencer base |
| 64 |
0317000 |
COLLIER, câble |
| 65 |
HOSE, |
Primer solenoid system |
| 66 |
0325563 |
CLAMP, Connector, timer to power pack |
| 67 |
0325569 |
T, amorçage |
| 68 |
0325637 |
CLAMP, Hose, intake manifold |
| 69 |
0315287 |
SCREW |
