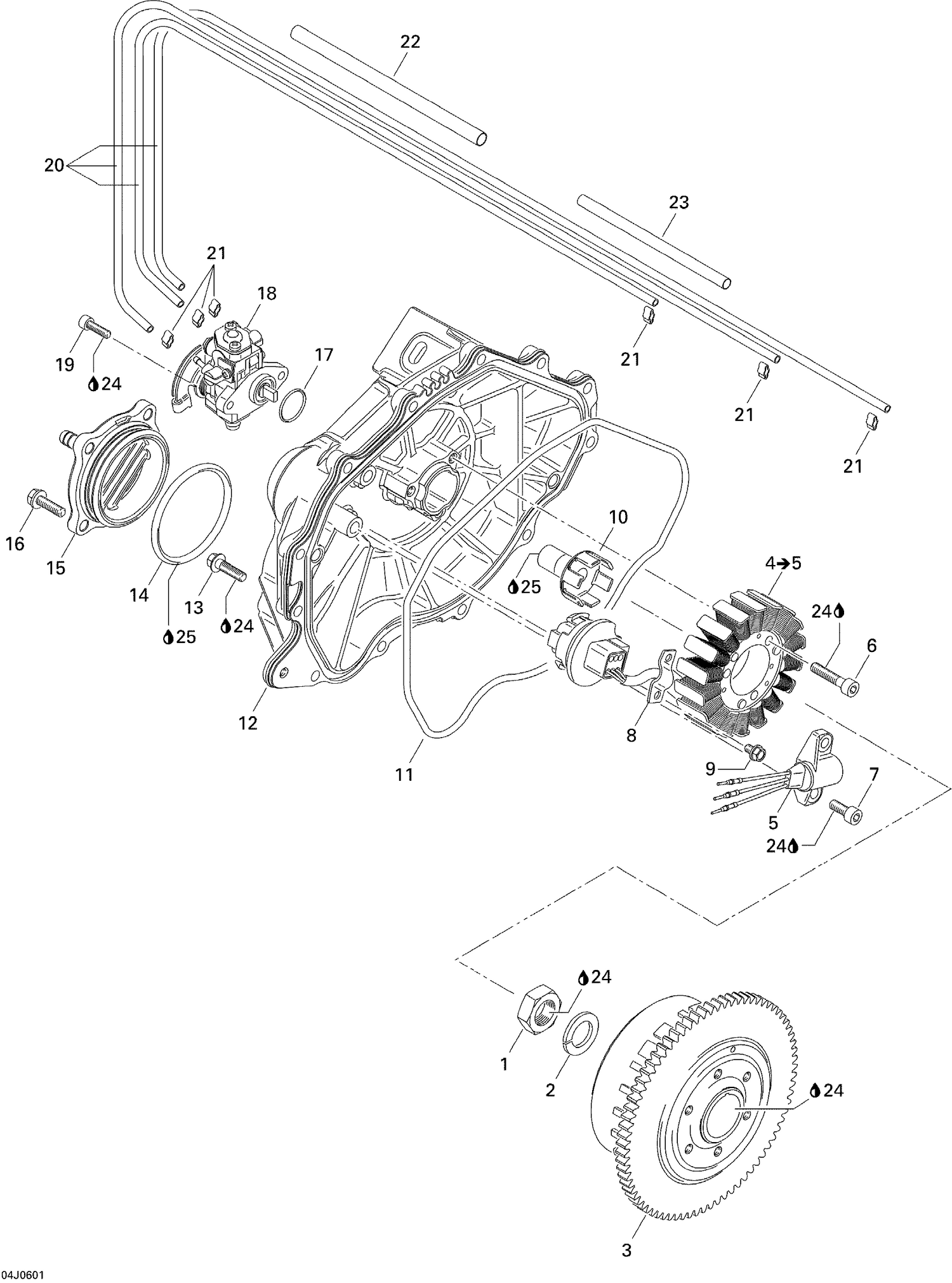

| Ref | Part Number | Description |
|---|
| 1 |
420942220 |
HEX. NUT M18 - Call your local BRP dealership |
| 2 |
420945757 |
LOCK WASHER 18 MM - Call your local BRP dealership |
| 3 |
420966822 |
Flywheel Hub |
| 5 |
420966760 |
Sensor Ass'y |
| 6 |
420640052 |
Socket Head Screw M6 X 35 This part replaces 420640051. |
| 7 |
420441311 |
Hex.Screw M6 X 20 This part replaces 420940566. |
| 8 |
420853080 |
RETAINER PLATE - Call your local BRP dealership |
| 9 |
207150844 |
HEX. SCREW M5 X 8 - Call your local BRP dealership |
| 10 |
420837395 |
OIL PUMP SHAFT - Call your local BRP dealership |
| 11 |
420931690 |
O-RING - Call your local BRP dealership |
| 12 |
420811422 |
IGNITION COVER, BLACK - Call your local BRP dealership |
| 13 |
420240033 |
HEX. FLANGED SCREW M6 X 25 - Call your local BRP dealership |
| 14 |
420850390 |
O-RING - Call your local BRP dealership |
| 15 |
420811225 |
WATERCHANNEL COVER - Call your local BRP dealership |
| 16 |
420941253 |
TAPPING SCREW M6 X 20 - Call your local BRP dealership |
| 17 |
293300018 |
O-RING - Call your local BRP dealership |
| 18 |
420888541 |
OIL PUMP ASS'Y - Call your local BRP dealership |
| 19 |
205051660 |
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership |
| 20 |
219704404 |
Oil Hose 1500Mm Long |
| 21 |
293650105 |
Clamp |
| 22 |
420960205 |
PROTECTION HOSE - Call your local BRP dealership |
| 23 |
420260465 |
PROTECTION HOSE - Call your local BRP dealership |
| 24 |
293800060 |
Loctite 243, 10 ml |
