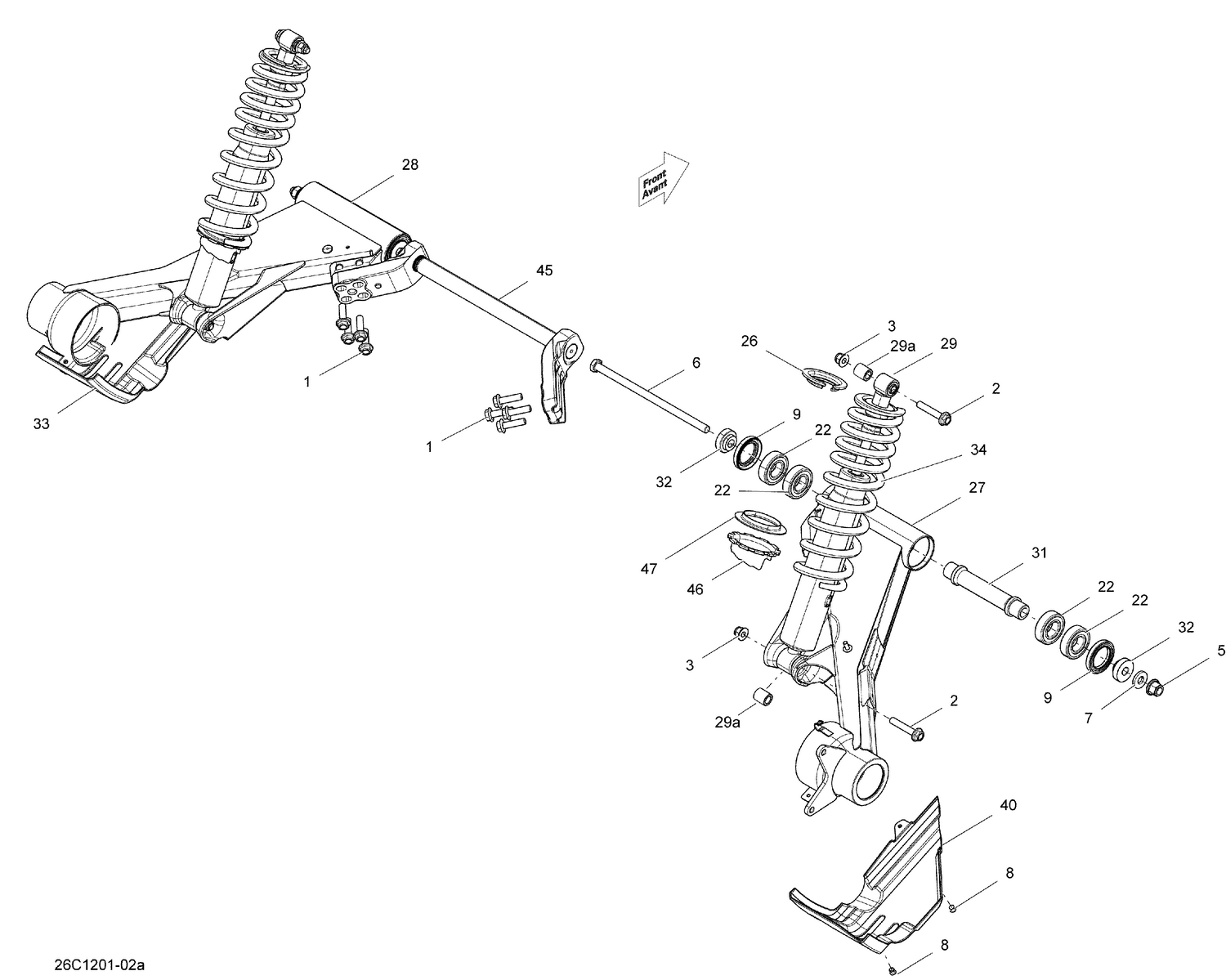

08- Rear Suspension
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207503544 | Hex. Flange Screw M10 X 35 |
| 2 | 207605544 | Hex. Flange Screw M10 X 55 |
| 3 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 5 | 233221416 | Elastic Flange Nut M12 |
| 6 | 250001031 | Hex. Cap Screw M12 X 241 This part replaces 250000515. |
| 7 | 250200120 | Flat Washer M12 |
| 8 | 293150104 | Pop Rivet 3/16" |
| 9 | 293200094 | Seal |
| 22 | 293350115 | Ball Bearing This part replaces 293350055. |
| 26 | 706000567 | Spring Stopper |
| 27 | 703500965 | RH Swing Arm This part replaces 706001178. |
| 28 | 706001177 | LH Swing Arm |
| 29 | 706000615 | Rear Shock |
| 29a | 715900122 | Bushing |
| 31 | 706001529 | Bushing This part replaces 706000616. |
| 32 | 706001350 | Spacer This part replaces 706000629. |
| 33 | 706000630 | LH Joint Protector |
| 40 | 706000814 | RH Joint Protector |
| 45 | 706001500 | Sway Bar Ass'y This part replaces 706000909. |
| 46 | 706000910 | Adjustment Ring |
