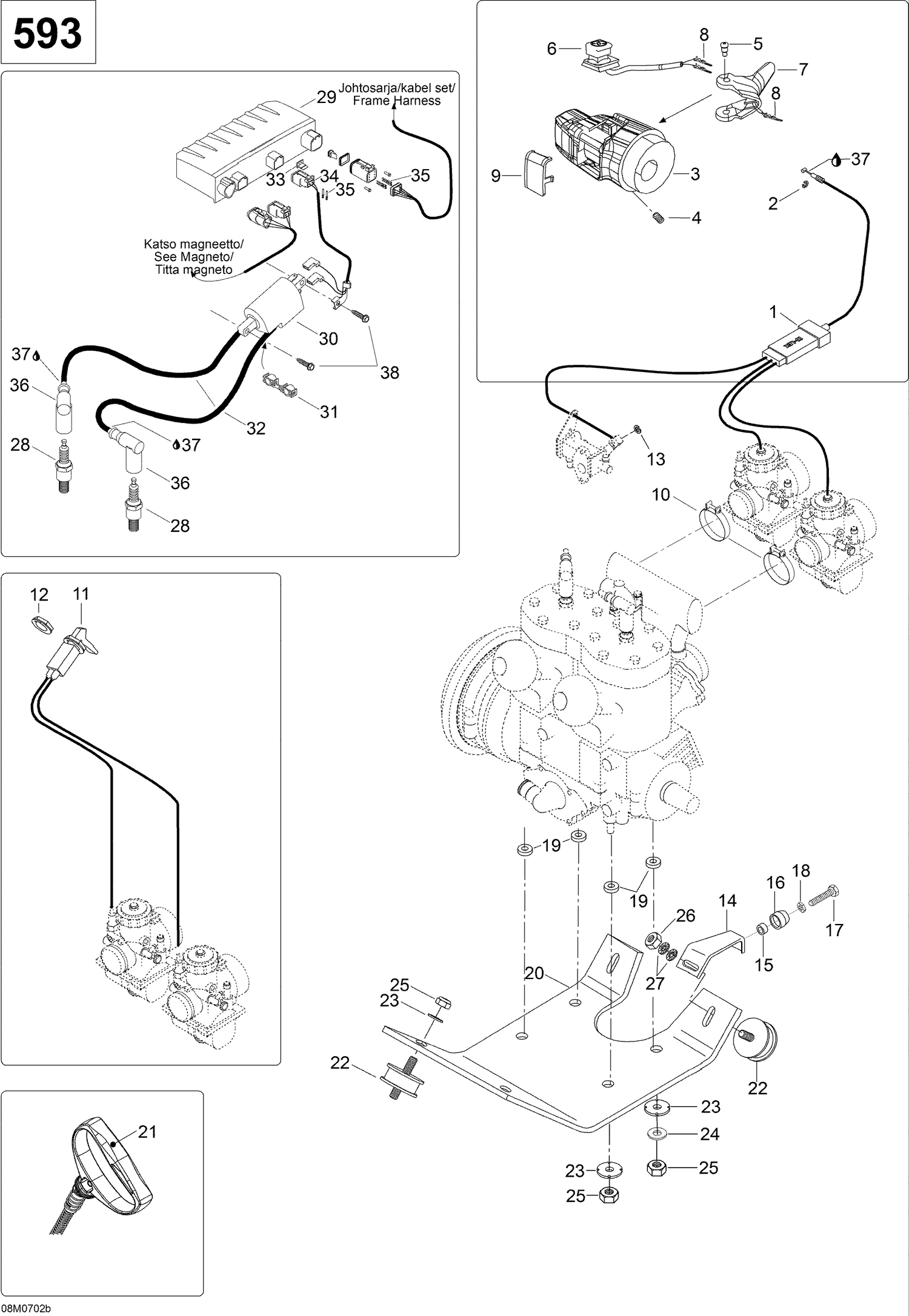

| Ref | Part Number | Description |
|---|
| 1 |
M5246328 |
THROTTLE CABLE - Call your local BRP dealership |
| 2 |
M31038 |
Circlip |
| 3 |
512059243 |
THROTTLE HOUSING - Call your local BRP dealership |
| 4 |
414440800 |
Socket Set Screw M8 X 10 |
| 5 |
732601143 |
Flange Screw |
| 6 |
515175410 |
Kill Switch |
| 7 |
512059348 |
Handle Ass'y |
| 8 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces M42603. |
| 9 |
572100901 |
Switch Cover |
| 10 |
414532700 |
COLLAR - Call your local BRP dealership |
| 12 |
512059364 |
NUT-PLASTIC - Call your local BRP dealership |
| 13 |
414753500 |
Circlip This part replaces M31035. |
| 14 |
M539902 |
Support |
| 15 |
M2846014 |
Rubber Washer |
| 16 |
605449240 |
SLEEVE - Call your local BRP dealership |
| 17 |
M40121 |
Hex. Screw M8 X 25 |
| 18 |
M33003 |
NUT - Call your local BRP dealership |
| 19 |
M5446347 |
SLEEVE - Call your local BRP dealership |
| 20 |
M5346175 |
Engine Support |
| 21 |
572084400 |
Starter Grip |
| 22 |
570128700 |
RUBBER MOUNT - Call your local BRP dealership |
| 23 |
512056700 |
Lock Washer |
| 24 |
20005 |
WASHER M10 - Call your local BRP dealership This part replaces M20105. |
| 25 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 26 |
232006414 |
Hex. Nut M10 X 1.5 |
| 27 |
20068 |
Lock Washer D10 This part replaces M20068. |
| 28 |
512059552 |
Spark Plug NGK BR9ECS-5 |
| 29 |
605350037 |
Calibration Module |
| 30 |
410922935 |
Ignition Coil |
| 31 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 32 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 33 |
M42609 |
Male Wedge 2 Ways |
| 34 |
409207300 |
Female Connector, 2 Circuits |
| 35 |
278000632 |
Female Terminal |
| 36 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 37 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
